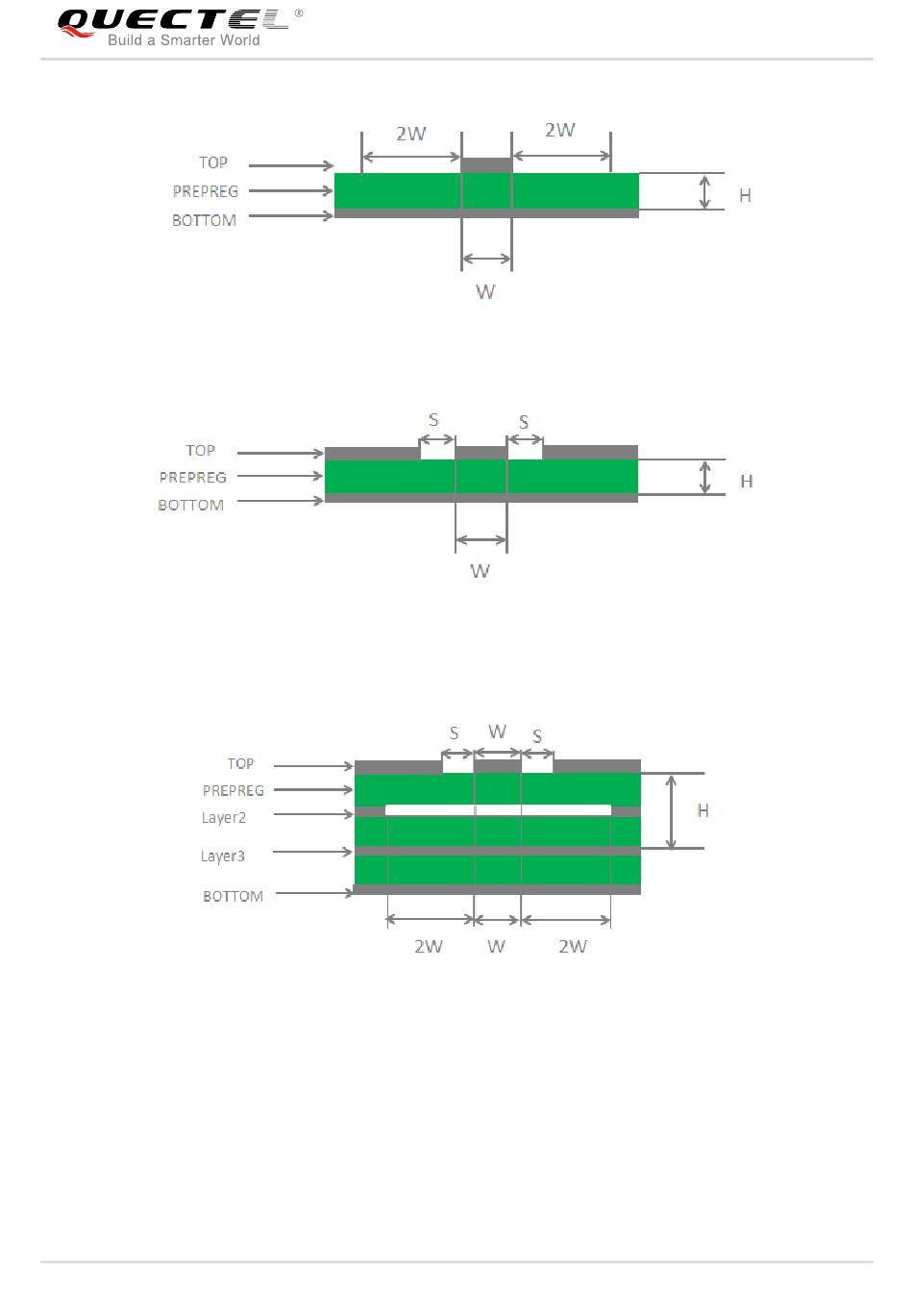

Figure 22: Microstrip Line Design on a 2-layer PCB
Figure 23: Coplanar Waveguide Line Design on a 2-layer PCB
Figure 24: Coplanar Waveguide Line Design on a 4-layer PCB (Layer 3 as Reference Ground)
