3.13. Network Status Indication*
The NETLIGHT signal can be used to drive a network status indicator LED.
A reference circuit is shown as below.
NOTE
"*" means under development.
BC66_Hardware_Design
Module
NETLIGHT

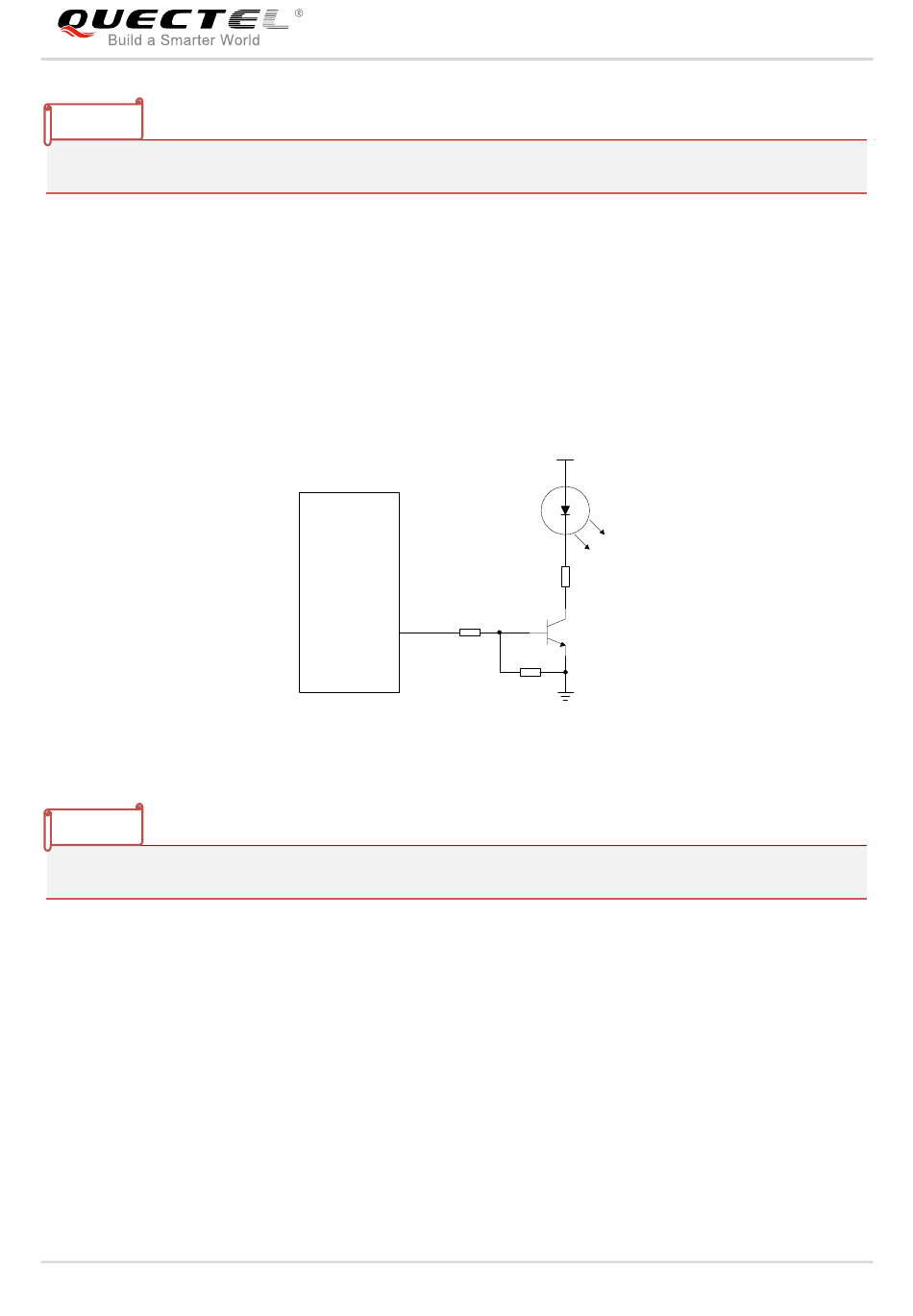

Figure 20: Reference Design for NETLIGHT
VBAT
2.2K
4.7K
47K
NB-IoT Module Series
BC66 Hardware Design
32 / 50
