Digital door lock
Model PP9000
PP9000
User manual
* The contents of this user manual are subject to change without prior notice
to the user in order to enhance performance of the products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Hafele PP9000

Summary of Contents for Hafele PP9000

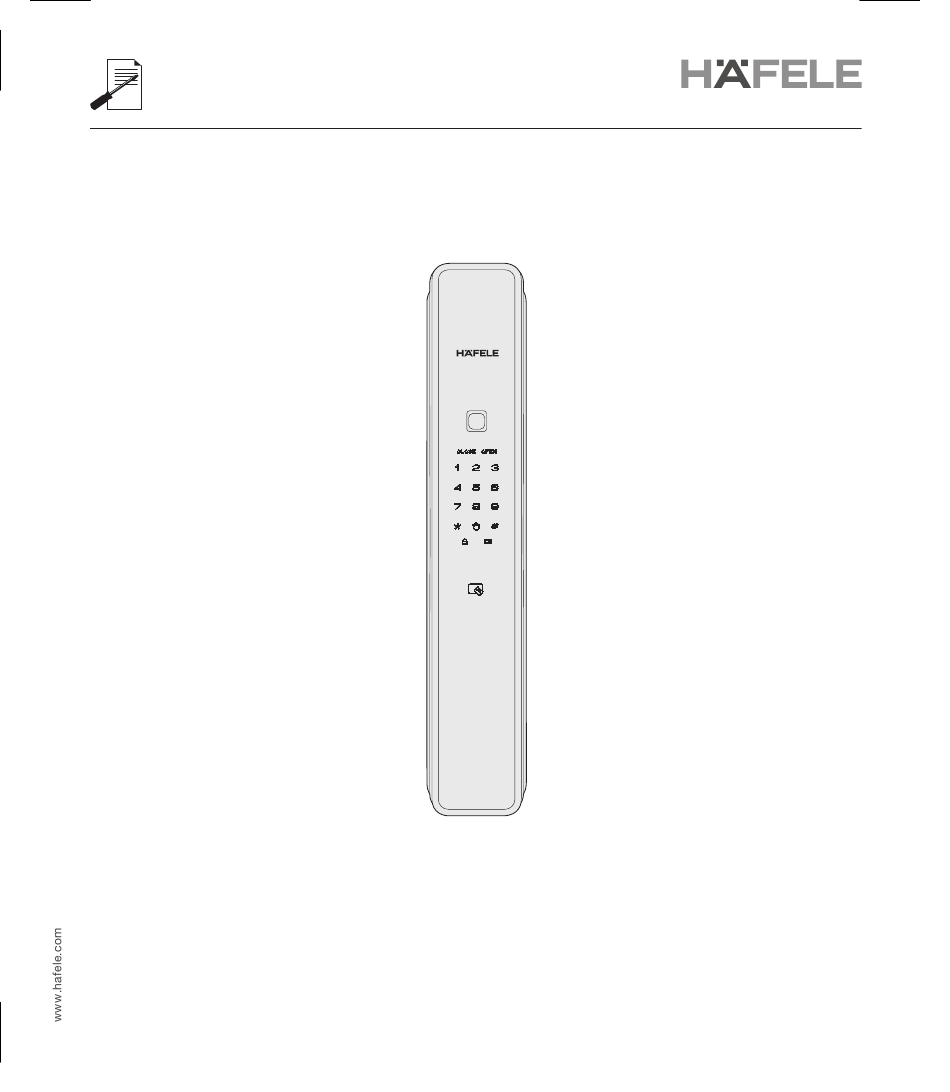

  • Page 1 Digital door lock Model PP9000 PP9000 User manual * The contents of this user manual are subject to change without prior notice to the user in order to enhance performance of the products.

  • Page 2: Table Of Contents

    Contents Read before using How to use Product features ........2 How to open the door ......12 Warnings ..........3 How to open the door from inside ..12 Product specifications ......3 How to lock the door ......13 Factory default settings ......4 Restore to factory setting ....13 Quick setup guide ........

  • Page 3: Read Before Using

    Read before using Product features Four way solution Four electronic locking modes: master PIN code/user PIN code, key card, fingerprint and emergency key. Master PIN code/ User PIN code/ Key card/ and Fingerprint identification 1 master PIN code, up to 10 user PIN codes, 100 key cards, 100 fingerprints. Random security coding function The random number can be added before or after the real user PIN code but the maximum length is 32 digits.

  • Page 4: Warnings

    Read before using Warnings * Read and understand all instructions before use. * If damage is caused by failure to follow this instructions, the warranty does not apply. * Only use alkaline batteries. * Do not expose the product and accessories to rain or water. * Do not expose the product to corrosive substances to avoid damage to the protective cover.

  • Page 5: Factory Default Settings

    Read before using Factory default settings Settings Factory defaults Master PIN code* 12345678 Opening mode setting Normal mode Speaker Enabled Wrong code entry limit 5 times Shutdown time 2 mins Voice guide language English *Important: First step is to set your own master PIN code. Quick setup guide Master PIN code User PIN code...

  • Page 6: Lock Operation

    Lock operation Add/Change access data How to change master PIN code (first setting use 12345678) (6 –12 digits) (confirm) 1. Before changing default master PIN code, all other setting menu will be disabled. You have to change master PIN code first, then do other lock settings.

  • Page 7: How To Add Key Card

    Lock operation Add/Change access data How to add key cards (6 –12 digits) 1. When registering user card, the card must be entered within 10 seconds. 2. At any time you can return to the previous menu by pressing the “ * ” key. Delete access data How to delete user PIN code Delete one user PIN code...

  • Page 8: How To Delete Fingerprint

    Lock operation Delete access data How to delete user fingerprint Delete one user fingerprint Fingerprint to be deleted (6 –12 digits) Delete all user fingerprints (Unusable in safe mode) (6 –12 digits) 1. When deleting user fingerprint, the fingerprint must be entered within 10 seconds. 2.

  • Page 9: Opening Mode Setting

    Lock operation Additional lock features Delete log-in data Opening mode setting Normal mode: Single verification means opening by PIN code, fingerprint or card. (6 –12 digits) Safe mode: Double verification means opening by PIN code + fingerprint, PIN code + card or fingerprint + card.

  • Page 10: Network Module (Optionally Available)

    Lock operation Additional lock features Delete log-in data Network module (Optionally available) Join network (6 –12 digits) Log off network (6 –12 digits) Bluetooth settings Enable Bluetooth (6 –12 digits) Manage Bluetooth (under Bluetooth turned on) (6 –12 digits) Disconnect Bluetooth Connect Bluetooth Disable Bluetooth 1.

  • Page 11: Auto/Manual Mode

    Lock operation Additional lock features Auto/Manual mode A/M mode switch 1. Remove upper cover to find the A/M switch. 2. [ A ] means auto mode: when door is closed, the deadbolt will drive out automatically, the door will be in locked status. 3.

  • Page 12: Menu Table

    Lock operation Menu table 1. Enroll user PIN code 2. Enroll fingerprint Press [ 1 ] 3. Enroll card 4. Delete user PIN code 5. Delete fingerprint 6. Delete card 7. Opening mode Setting 9. Change master PIN code 1. User setting 2.

  • Page 13: How To Use

    How to use Open & Lock the door How to open the door from outside Fingerprint Card PIN code 1. Touch keypad 1. Place the enrolled 1. Place the enrolled by palm to lighten finger properly on card properly on the keypad.

  • Page 14: How To Lock The Door

    How to use Open & Lock the door How to lock the door Auto locking A/M mode switch In auto mode, door will be locked automatically in 1.5 seconds after closing. Manual locking In manual mode, press [ CLOSE ] button to lock the door from inside or verify user fingerprint/PIN code/card to lock the door from outside.

  • Page 15: Reboot Button

    Do not mix old and new batteries together in replacement. Network module Network module interface Network module Access master mode and press [ 4 ] for function extension, which is reserved for wireless communication and other smart home interfaces. Please contact Hafele customer service center for more details.
