Summary of Contents for Hafele ER4800

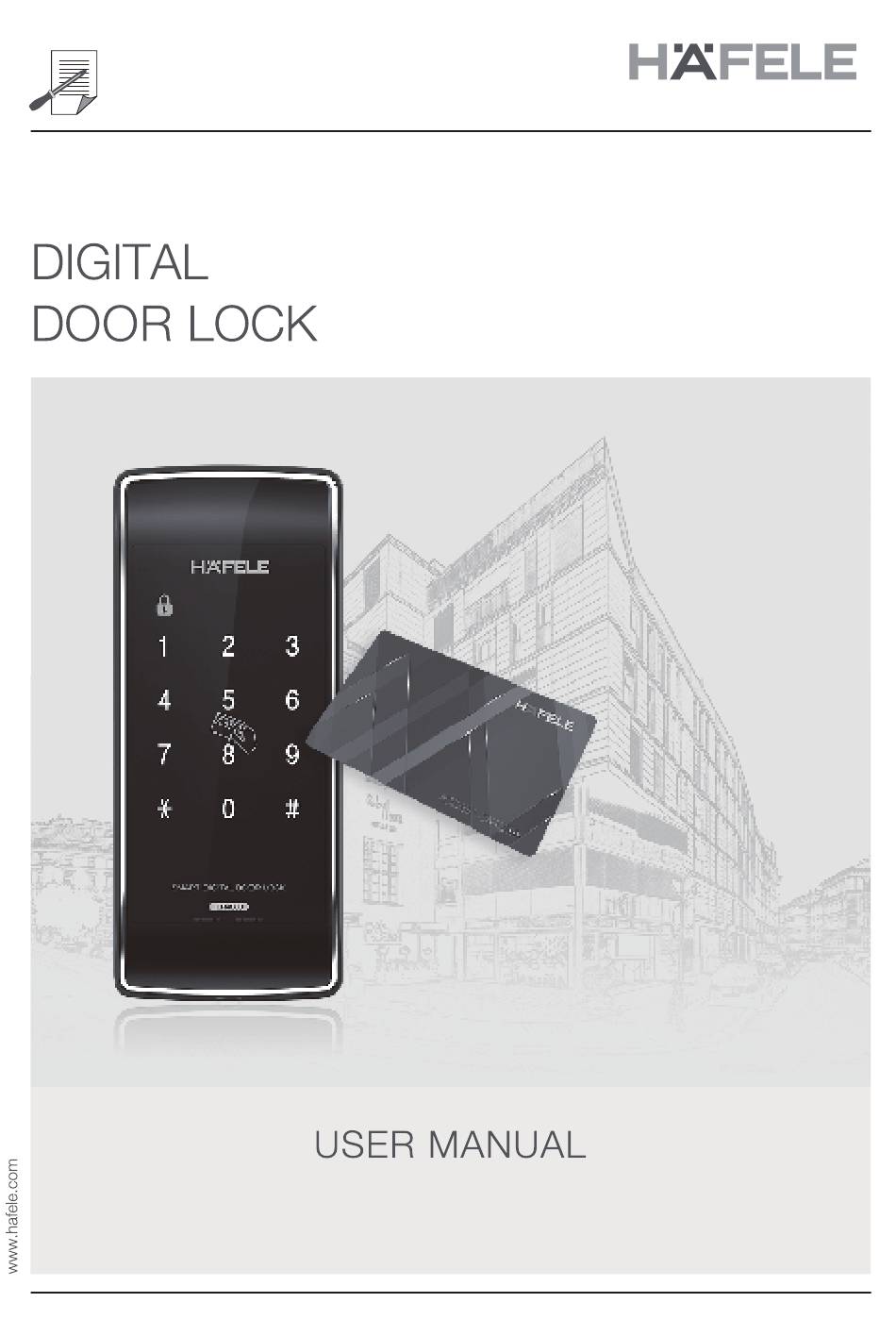

- Page 1 ER4800...
-
Page 2: Product Features
Before Using Product features Two way solution Available to use secret code as well as card key. Random security coding function When you enter your home with friends or other people, you don't want to show secret code to them. In this case, you may press any number randomly without limitation and then enter your secret code at nal. - Page 3 Safety precautions Do not disassemble or alter the lock. Assembling or disassembling the door lock may damage the product. Damages to the product caused by unauthorized persons may result in damages to your property. Please contact our Customer Service. If the product generates harmful gased or smoke,please remove the batteries immediately from the product.
-
Page 4: Table Of Contents
Before Using Before using Product features Safety precautions Contents Product composition and components Name and function of each part - Front ass'y Name and function of each part - Back ass'y How to replace battery How to apply external power in the emergency How to use touch-pad and random security How to change mode (Normal mode >... -
Page 5: Product Composition And Components
Product composition and components Installation template User manual Name Product specification Remark 1. Front Ass’y 71.8mm (W) x 163.6mm (H) x 18.4mm (D) Including rubber pad 2. Back Ass’y 154mm (W) x 93mm (H) x 37mm (D) Including rubber pad 3. -
Page 6: Name And Function Of Each Part - Front Ass'y
Before Using Name and function of each part - Front ass'y Lock/Unlock lamp Indicate lock/unlock status Battery replacement indicator When the battery is low, red lamp is flickering. Please change batteries to new one. Card key touch plate Touch the registered card key to open the door. -
Page 7: Name And Function Of Each Part - Back Ass'y
Name and function of each part - Back ass'y Battery cover Push up to open the battery cover Battery 4 pcs (1.5V, "AA" size, LR6 Alkaline) Double locking switch Switch to set double locking mode. [R/C] button [Open/Close] button - Setting for safety mode It is easy to open or close the door - Registration/delete of code, card with one touch button from inside. -
Page 8: How To Replace Battery
Before Using How to replace battery If battery lamp in RED is flickering with sound, Replace all 4 batteries to new one. (1.5V, "AA" size, LR6 Alkaline) Replace batteries in same position If battery lamp is flickering with sound as like above picture. Note ˙... -
Page 9: How To Use Touch-Pad And Random Security
How to use touch-pad and random security coding function Random security coding function - Press any number randomly without limitation and then enter your secret code at final. With this function, you can open the door without revealing your secret code to others. Touch the front pad Numeric buttons Press random code (Ex : 1389) -
Page 10: How To Change Mode
Before Using How to change mode (Normal mode Safety mode) Note ˙ Manager code & manager card shall be controlled by authorized person for security. ˙ Existing secret code, card Press [ # ] are deleted automatically (Brik~) after registration of new Open battery cover. -
Page 11: Normal Mode
Normal Mode How to register secret code in normal mode Open battery cover Press new secret Press [ ] Press new secret and press [10key] code. (Ex : 123456) (BrikBrik) code. (Ex : 234567) button shortly. (Bik) To register more secret code (Max.10EA of secret code can be registerd) -
Page 12: How To Delete All Card Key In Normal Mode
Basic function How to delete all card key in normal mode Open the battery Press [ ] Input registered Press [ ] cover and press secret code. [10KEY] button shortly. (Ex : 123456) (Bik~) Delete confirm (Briririk~) Press [ 5 ] Press [ ] Note Previous card key memory is deleted automatically after registration of new card key. -
Page 13: Safety Mode
Safety Mode How to register secret code in safety mode Manager code & manager card shall be controlled by authorized person for security. Press [ ] Registered manager code (Ex : 456789) Open the battery cover and press [R/C] button or manager card shortly. -
Page 14: How To Register Card Key In Safety Mode
Basic function How to register card key in safety mode Even though new card is registered, previous card data is not deleted. If same registration number is applied, hold registration mode with warning sound. Open the battery Press [ ] Press [ 2 ] Manager code (Ex : 456789) cover and press... -
Page 15: How To Delete All Card Data In Safety Mode
How to delete all card data in safety mode Open the battery Manager code (Ex : 456789) Press [ ] cover and press or manager card [R/C] button shortly. (Bik) Press [ 5 ] Press [ ] (Biriririk~) How to delete individual card data in safety mode It is not available to delete multiple individual card data in one time. - Page 16 Basic function Guest secret code (Temporary use) Press [ ] Press [ ] Touch the Input manager code (Ex : 456789) front pad or touch the manager card Press [9] Input guest Input guest Press [ ] Press [ ] secret code secret code Note...
-
Page 17: How To Set Manager In Safety Mode
How to set manager in safety mode Change manager code in safety mode Open the battery cover Press [ ] Manager code Press [ ] Press [0] and press [R/C] button (Bik) (Ex : 456789) (Brik~) shortly. (Bik) Press [ ] Input new manager Press [ ] Input new manager... - Page 18 Basic function How to open from outdoor (Secret code, card, Mute function) 1. Open the door using secret code Touch the front pad Enter secret code Press [ ] and door (Ex : 123456) is unlocked (Biriririk~) 2. Open the door using card key Touch the registered card key to card contact point...
- Page 19 How to lock the door from outdoor 1. Lock the door at auto-locking mode 2. Lock door at manual-locking mode When the door is closed, it is locked automatically At manual-locking mode, door is not locked with beeping sound. automatically even though the door is closed. ※...
- Page 20 Basic function How to open or close with thumb-turn from indoor The lock can be locked or unlocked by turning the turmb-turn. Turn to clockwise, it will be unlocked Turn to counterclockwise, it will be locked. How to open or close with [Open/Close] button from indoor If you press [Open/Close] button, it is locked or unlocked automatically Press in locked status, it will be unlocked.
-
Page 21: How To Set Double Locking Function
How to set double locking function In [Double lock] mode, function of door lock is suspended and can't open the door from outside. ※ Please set this function after the door is closed. [Double lock] mode released [Double lock] mode installed (SILVER) (RED) Normal operation... -
Page 22: How To Control Volume Level
Application How to control volume level Sound volume can be controlled by 8 levels. (Mute to maximum level) Press [ ] Input secret code (Ex : 123456) Touch the front pad or Touch the card key 2 : Volume down Press [ ] 3 : Volume up ※Press 1 to make maximum level and press 0 to make mute in one time. -
Page 23: Warning Function Against Mischief Or Hacking
Warning function against mischief or hacking If wrong secret code or unregistered card is applied over 3 times, alarm system is activated with warning sound and all the function of door lock is suspended for one minute. How to release ♪Biyoong~ Biyoong~ the suspended lock function Applying wrong... -
Page 24: System Reset
Application System reset Open battery cover Remove battery Press open button to make it discharged entirely. Pressing [R/C] button, Insert batterie. Press [ ] button Input manager code or touch manager card. for 3 seconds. System reset is completed. Normal mode Insert batterie.
