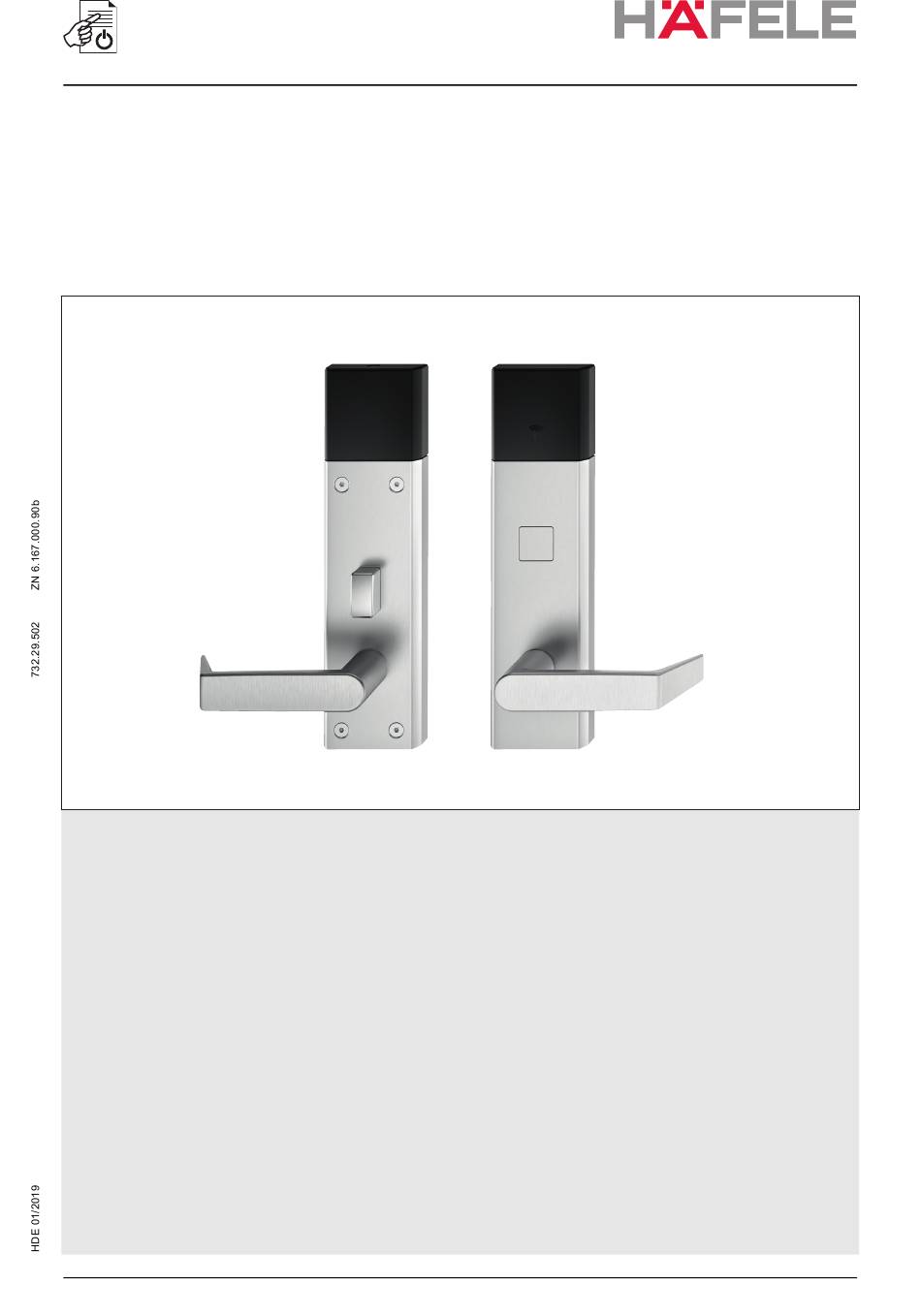

- Page 1 DT 750 DT 750 BLE Operating instructions - English........2...
-
Page 2: Table Of Contents
Operating instructions - English Table of Contents Special notes ..................3 1.1 Contents and target group type instructions ......... 3 1.2 Obligations of the operator ..............3 1.3 Personnel qualifications ................ 4 1.4 Exclusion of liability ................5 Information about the product ............... 5 2.1 Correct purpose of use ................. -
Page 3: Special Notes
1. Special notes 1.1 Contents and It is essential to pay attention to these operating instructions in order to operate the target group type product successfully and safely. Please pay attention to all of the specified instructions instructions and notes! The operating instructions consist of two separate documents: •... -
Page 4: Personnel Qualifications
Furthermore, the operator is responsible for ensuring that the access control system is always in perfect technical condition. The following therefore applies: • The operator must ensure that the maintenance intervals specified in these instructions are followed. • The operator must have all safety devices inspected regularly for function and completeness. -
Page 5: Exclusion Of Liability
Service and maintenance personnel Cleaning work on the product may be carried out by the operating personnel (after obtaining authorization from the operator). The batteries must only be changed by trained experts that have been deployed by the owner. Other maintenance work is not permitted. These instructions describe the qualifications listed below for the personnel for the various work areas: Qualified electrician... -
Page 6: Incorrect Purpose Of Use
2.2 Incorrect purpose Any use that is not mentioned in chapter 2.1 is considered to be improper. of use The operator is solely responsible for any resulting damage. It is particularly important to avoid the following: • Use outdoors • Use in potentially explosive or aggressive environments •... -
Page 7: Safety Symbols
Safety notes in handling indications Safety notes may relate to certain individual handling indications. Such safety notes are incorporated into the handling indication as to not interrupt the flow of reading when carrying out the action. The signal words described above are used. Examples 1. -
Page 8: Environmental Protection
3.3 Environmental protection NOTE Risk to the environment due to improper handling of environmentally hazardous substances! Improper handling of environmentally hazardous substances, particularly improper disposal, can cause significant damage to the environment. • Always follow the notes below for handling environmentally hazardous substances and their disposal. -
Page 9: Installation
WARNING Danger in case of improper use! Improper use of the product can result in dangerous situations. > Never use the product in potentially explosive areas. > Never use the product under any other than the approved ambient conditions. NOTE Damage to product due to damaged wires! Damaged wires affect the functionality of the product. -
Page 10: Allocating Locking Authorizations
6. Allocating locking authorizations NOTE Warning of abuse! Unauthorized persons can gain access to rooms using the programming and clearing keys. > Only personnel who are authorized by the operator may allocate locking authorizations! > Take care when allocating locking authorizations to avoid overlapping or mistakes. -
Page 11: Clearing Locking Authorizations
7. Clearing locking authorizations 7.1 Clearing For step-by-step instructions “Clearing locking authorizations - the locking individual key, normal key, privileged key or key with toggle lock authorizations function” see illustrations starting on page 18. of individual keys 7.2 Procedure to follow If a user key was lost, all user keys must be cleared at the affected door terminals. -
Page 12: Emergency Opening
9. Emergency In the event of power failures or malfunctions, emergency opening can take place via the single profile cylinder. This activity is logged in the event log. The locking opening cylinder may only be used for emergency opening! NOTE The product may be damaged if the single profile cylinder is used incorrectly! >... -
Page 13: Servicing / Maintenance
11.2 Servicing / The product is maintenance-free apart from having to change the batteries. maintenance NOTE Damage to product due to incorrect maintenance! > Do not use lubricants. > Do not carry out repairs. > Contact the manufacturer in the event of damage / malfunctions. >... - Page 14 Start-up Tag-it ™ISO Tag-it ™ISO Programming key Clearing key (1) Insert batteries (see p. 22), acoustic signal is heard. (2) White LED flashes for max. 5 sec. (3) Present programming key, acoustic signal is heard. (4) Remove programming key. (5) Red LED flashes for max. 5 sec. (6) Present erasing key within 5 sec.
- Page 15 Allocating locking authorizations - normal user keys User key Tag-it ™ISO Programming key (1) Present programming key. (2) Acoustic signal is heard. White LED flashes for max. 5 sec. (3) Present user key within 5 sec. (4) Acoustic signal is heard. The white LED flashes briefly. Locking authorization has been allocated.
- Page 16 Allocating locking authorizations - privileged user keys Tag-it ™ISO Programming key User key (1) Present programming key. (2) Acoustic signal is heard. White LED flashes for max. 5 sec. 2x/s (3) Present programming key again. (4) Double acoustic signal is heard. White LED flashes 2x/sec. (5) Present user key within 5 sec.
- Page 17 Allocating locking authorizations - user keys toggle lock function Tag-it ™ISO User key Programming key (1) Present programming key. (2) Acoustic signal is heard. White LED flashes for max. 5 sec. 2x/s (3) Present programming key again. (4) Double acoustic signal is heard. White LED flashes 2x/sec. 1x/s (5) Present programming key again.
- Page 18 Clearing locking authorizations - individual key, normal key, privileged key or key with toggle lock function Clearing key User key Tag-it ™ISO (1) Present erasing key. (2) Acoustic signal is heard. Red LED flashes for max. 5 sec. (3) Present user key within 5 sec. (4) Acoustic signal is heard.
- Page 19 Clearing locking authorizations - all user keys (normal keys, privileged keys and keys with toggle lock function) Tag-it ™ISO Clearing key Tag-it ™ISO Programming key (1) Present erasing key. (2) Acoustic signal is heard. Red LED flashes for max. 5 sec. (3) Present programming key within 5 sec.
- Page 20 Operation User key (1) Present user key. (2) The red LED flashes briefly. Acoustic signal is heard. (3) The white LED flashes. 0-3 s (4) Door is ready for opening for approx. 3 sec.
- Page 21 Emergency opening With activated DND function (see 8.2), the deadbolt ist extended: (1) Remove cover. (2) Insert suitable key into locking cylinder. (3) Turn key in opening direction until the door is unlocked. (4) Open door with lever handle. (5) Key must be removed after emergency opening!
- Page 22 Battery change Hex insert 3.0 with pin...
- Page 24 Häfele GmbH & Co KG Adolf-Häfele-Str. 1 D-72202 Nagold Germany Tel.: +49 (0)74 52 / 95 - 0 Fax: +49 (0)74 52 / 95 - 2 00 E-mail: info@haefele.de Subsidiaries of Häfele: https://www.hafele.com/com/en/info/locations/9749/...
