Bradley S96-085 Installation Manual

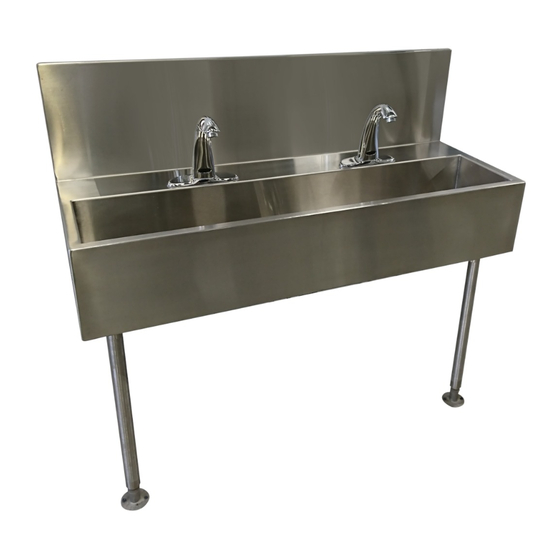

Multi-station wall sink
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

*FAUCETS BY OTHERS
Installation
Packing List
•
•
•
IS
T H
E
S ID
•
U P
215-737 Rev. E; ECN 10-02-010
© 2011 Bradley Corporation
Page 1 of 6
1/31/2011
IMPORTANT!
Read this entire installation manual to ensure proper installation. When
fi nished with the installation, fi le this manual with the owner or maintenance
department. Compliance and conformity to local codes and ordinances is
the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for
before discarding packaging material. If any parts are missing, do not begin
installation until you obtain the missing parts.
Make sure that all water supply lines have been fl ushed and then
completely turned off before beginning installation. Debris in supply lines
can cause valves to malfunction.
Product warranties may be found under "Products" on our web site at
bradleycorp.com.
Installation
Bradley Multi-Station
Wall Sink
S96-085 (6951A-2) 2 station
S96-083 (6951A-3) 3 station
S96-080 (6951A-4) 4 station
S96-051 (6951A-5) 5 station
Table of Contents
Supplies Required For Installation . . . . . . . . . . . . . . 2
Wall Sink Components . . . . . . . . . . . . . . . . . . . . . . . 2
2-&3-Station Wall Sink Rough-Ins . . . . . . . . . . . . . 3
4-&5-Station Wall Sink Rough-Ins . . . . . . . . . . . . . 4
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning Stainless Steel . . . . . . . . . . . . . . . . . . . . . . 6
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1.800.BRADLEY
bradleycorp.com
Fax: 262.253.4161

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S96-085 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley S96-085

Summary of Contents for Bradley S96-085

  • Page 1 Installation Bradley Multi-Station Wall Sink S96-085 (6951A-2) 2 station S96-083 (6951A-3) 3 station S96-080 (6951A-4) 4 station S96-051 (6951A-5) 5 station Table of Contents Supplies Required for Installation ....2 Wall Sink Components .
  • Page 2 2- and 3-STATION (qty. 2) 4-STATION (qty. 3) 5-STATION (qty. 4) LEG (PIPE) (113-744) DRAIN SPUD (112-028) OVAL-HEAD SCREW WASHER (160-042) (142-063) TAILPIECE ADJUSTABLE (S29-083) FOOTING (S36-020) LOCKNUT STRAINER (161-148) (173-002) 1-31-2011 Bradley Corporation • 215-737 Rev. E; ECN 10-02-010...
  • Page 3 Dimensions 23-1/2" - 25" (597) (635) 18" (457) 43" - 44-1/2" (1092)(1130) 31"-32-1/2" (787)(826) 3-Station Wall Sink Dimensions 23-1/2" - 25" (597) (635) 18" (457) 43" - 44-1/2" (1092)(1130) 31"-32-1/2" (787)(826) Bradley Corporation • 215-737 Rev. E; ECN 10-02-010 1-31-2011...
  • Page 4 Dimensions 23-1/2" - 25" (597) (635) 18" (457) 43" - 44-1/2" (1092)(1130) 31"-32-1/2" (787)(826) 5-Station Wall Sink Dimensions 23-1/2" - 25" (597) (635) 18" (457) 43" - 44-1/2" (1092)(1130) 31"-32-1/2" (787)(826) 1-31-2011 Bradley Corporation • 215-737 Rev. E; ECN 10-02-010...
  • Page 5 To avoid leakage, use plumber’s putty to caulk the drain spud. Bradley Corporation • 215-737 Rev. E; ECN 10-02-010 1-31-2011...
  • Page 6 A steel nail or screw may be the cause of the trouble. 4. If the sprayhead delivers an uneven spray, remove the sprayhead from the unit, disassemble, and remove foreign matter. Reassemble sprayhead and reinstall into unit. 1-31-2011 Bradley Corporation • 215-737 Rev. E; ECN 10-02-010...

This manual is also suitable for:

S96-051S96-083S96-0806951a-26951a-36951a-4 ... Show all
