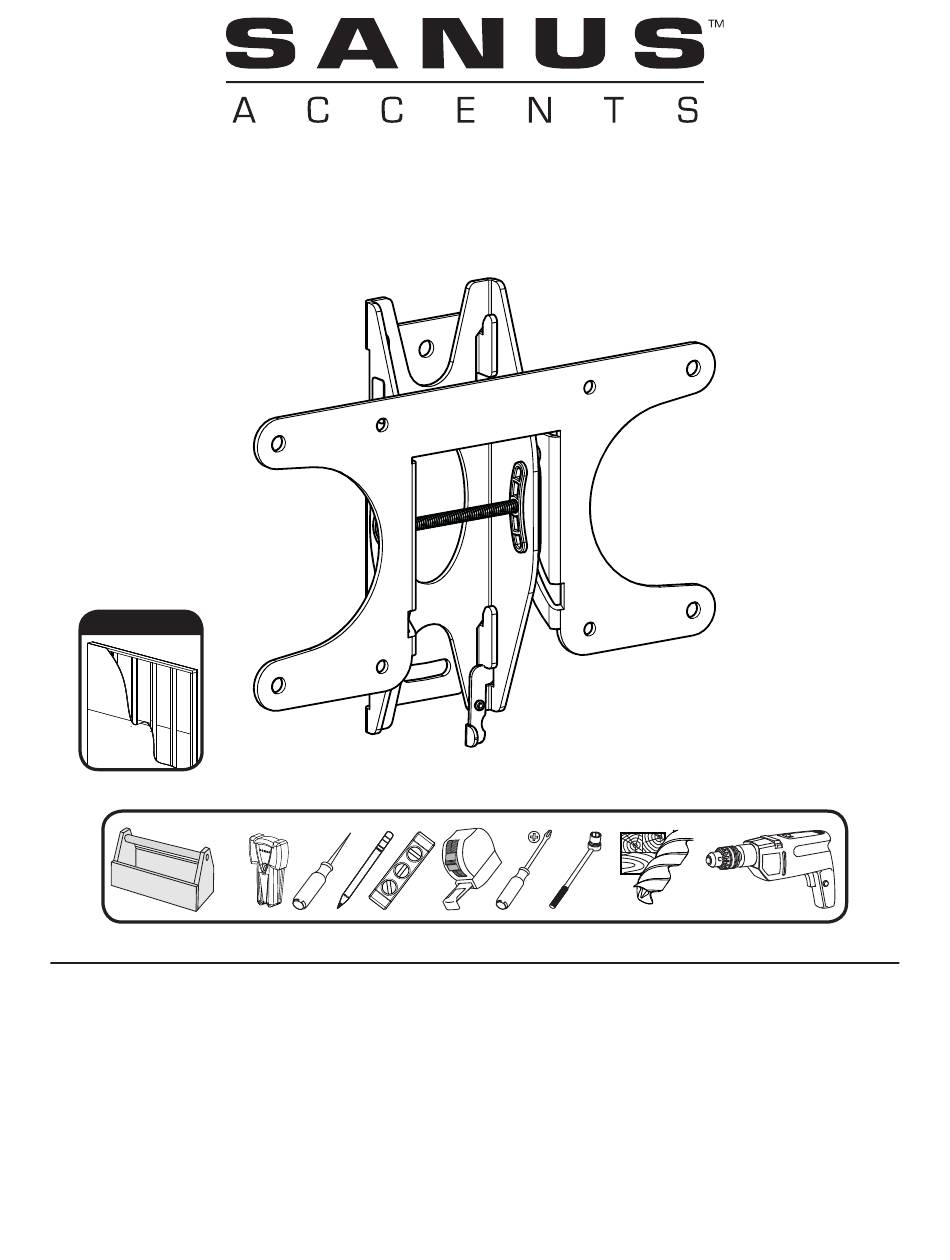

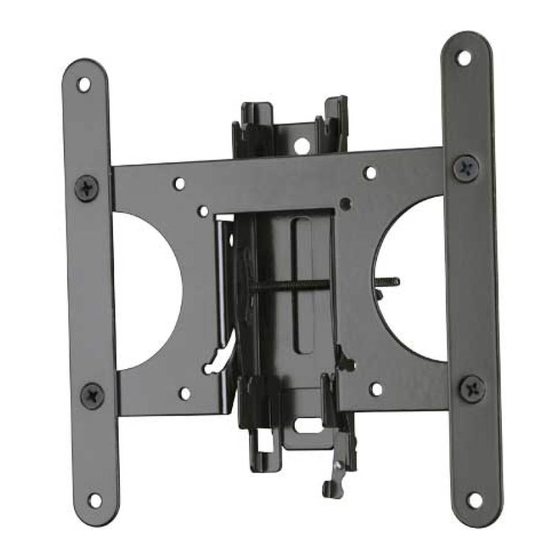

SAN18B
(6904-002017 <00>)
Wood
12 mm
3mm
(7/16 in.)
(1/8 in.)
Sanus Systems
2221 Hwy 36 West
Saint Paul, MN 55113 USA
Customer Service
Americas: 800-359-5520 • 651-484-7988 • info@sanus.com
Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com
Asia Pacifi c: 86 755 8996 9226 • sanus.ap@milestone.com
accents.sanus.com
©2010 Milestone AV Technologies, a Duchossois Group Company.
All rights reserved. Accents is a Milestone brand.
All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sanus SAN18B
Summary of Contents for Sanus SAN18B
- Page 1 Saint Paul, MN 55113 USA Customer Service Americas: 800-359-5520 • 651-484-7988 • info@sanus.com Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com Asia Pacifi c: 86 755 8996 9226 • sanus.ap@milestone.com accents.sanus.com ©2010 Milestone AV Technologies, a Duchossois Group Company.
- Page 2 WARNING: This product Wood stud walls Tools required Choose an Option contains small items that could Caution / Warning be a choking hazard. Troubleshooting and Heavy! Assistance Required. Maintenance 6904-002017 <00>...
- Page 3 54.1 mm 2.13 in. 12° 35.0 mm 1.38 in. 12° 200 mm 7.87 in. 100 mm 3.94 in. 225.4 mm 8.87 in. 177.8 mm 200 mm 7.0 in. 7.87 in. 120.7 mm 100 mm 4.75 in. 3.94 in. 61.6 mm 2.43 in.
- Page 4 CAUTION: IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT Specifi cations Weight capacity-DO NOT EXCEED: 22.67 kg (50 lbs) includes TV and any accessories CAUTION: Avoid potential personal injuries and property damage! ...
- Page 5 [02] x 1 [01] x 1 [03] x 4 M4 x 12mm M4 x 30mm [04] x 4 [05] x 4 M6 x 12mm M6 x 20mm M6 x 35mm [06] x 4 [07] x 4 [08] x 4 M8 x 16mm M8 x 35mm [09] x 4 [10] x 4...
- Page 6 CAUTION: Install TV Brackets Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Verify that there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service. CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accomodate your needs.
- Page 7 For TVs with a fl at back. Ensure that the bracket is level on the back of the TV. Standard confi gurations are shown. If you need extra space to accommodate cables, recesses, or protrusions, see the installation option (1-2) that uses spacers. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.
- Page 8 For TVs with a fl at back. Ensure that the bracket is level on the back of the TV. Standard confi gurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service. [01] [01] [03] [03]...
- Page 9 12mm (7/16 in.) (1/8 in.) CAUTION: Wood Stud Mounting Locate stud. Verify the center of the stud with an awl or thin nail or use an edge to edge stud fi nder. Level the wall plate [02] and mark the hole locations. Drill pilot holes as illustrated.
- Page 10 Hang the TV onto the wall plate. For tilting option see 3-1 For low profi le option see 3-2 HEAVY! You will need assistance with this step. [01] [02] Adjust Up / Down Tilt Tension ± 12° 6904-002017 <00>...
- Page 11 [01] [02] Secure TV to wall mount. 6904-002017 <00>...
- Page 12 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.
