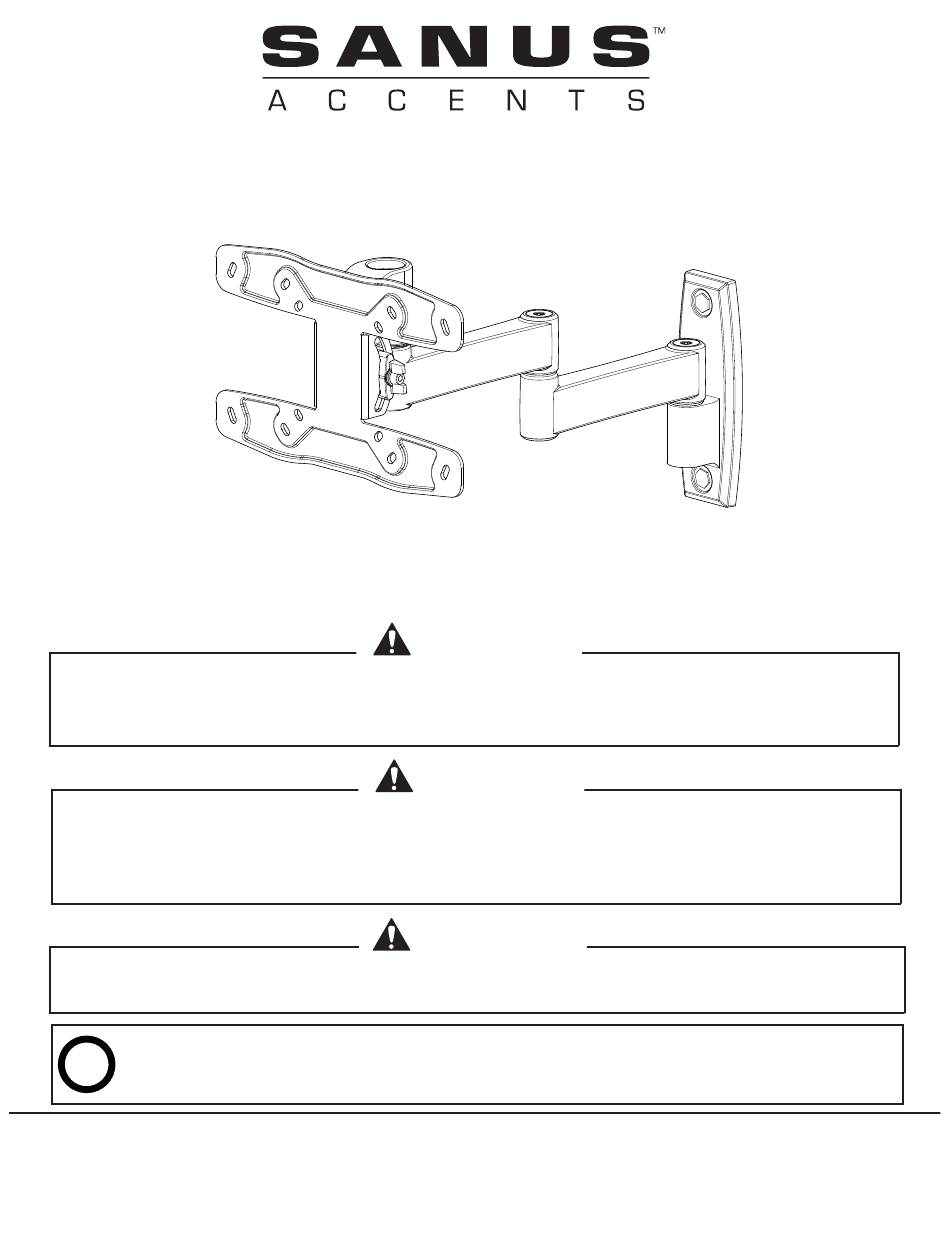

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
Thank you for choosing an Accents wall mount. The SAN213 is designed to mount monitors with VESA 75x75, 100x100,
or 200x100 hole patterns, weighing less than 45 lbs (20.5 kg) to a vertical wall; it is also adjustable, allowing ±15° of tilt.
The wall must be capable of supporting up to five times the weight of the monitor and mount combined. If you
have any doubts about the ability of the wall to support the monitor, contact Customer Service, or a qualified
contractor.
Do not use this product for any purpose not explicitly specifi ed by Accents. Improper assembly may cause
property damage or personal injury. If you do not understand these directions, or have doubts about the safety
of the assembly, contact Customer Service or call a qualifi ed contractor. Accents is not responsible for damage or
injury caused by incorrect assembly or use.
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
Hardware and procedures for multiple mounting configurations are included. When you see this symbol,
OPT
choose the correct configuration to suit your needs. Not all hardware included will be used.
©2008 Milestone AV Technologies. All rights reserved. Sanus Accents is a Milestone Brand. Sanus and Sanus Systems
are registered trademarks, and Sanus Accents and the Sanus Accents logo are trademarks of Milestone.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
SAN213
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
Customer Service: 1-800-359-5520 • 651-484-7988
info@sanus.com • www.accents.sanus.com
(6904-100136 <00>)
CAUTION
CAUTION
WARNING

Advertisement

loading
Need help?

Need help?

Do you have a question about the SAN213 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanus SAN213

  • Page 1 IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS Thank you for choosing an Accents wall mount. The SAN213 is designed to mount monitors with VESA 75x75, 100x100, or 200x100 hole patterns, weighing less than 45 lbs (20.5 kg) to a vertical wall; it is also adjustable, allowing ±15° of tilt.
  • Page 2 3/8 in. 3/16 in. Supplied Parts and Hardware Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item to your dealer; contact Customer Service. Never use damaged parts! [01] x 1 [02] x 1 1/4-20 x 3.25 in.
  • Page 3 1-1: Wood Stud Mounting 3/16 in. NOTE Use awl to verify stud location. [01] 64 mm (2.5 in.) CAUTION Any material covering the wall must not exceed 13 mm (1/2 in.). [03] CAUTION Do not over-tighten the lag bolts [03]. Tighten the lag bolts [03] only until they are pulled against the wall plate [01].
  • Page 4 1-2: Concrete Block Mounting 3/8 in. CAUTION For concrete block walls, install the fasteners into the face of the [01] block. Never drill into mortar between blocks. Ensure the anchors [04] seat fl ush with the block. [04] [03] CAUTION Do not over-tighten the lag bolts [03].
  • Page 5 2-1: TV with Flat Back [02] [11] 2-2: TV with Curved Back or Obstruction [13] [02] [12] 6904-100136 <00>...
  • Page 6 3: Attach Head to Arm Assembly [18] [05] [10] [09] [10] [02] [06] [07] [08] [01] 6904-100136 <00>...
  • Page 7 [16] [16] [02] [01] [16] [16] [16] 6904-100136 <00>...
  • Page 8 Pull the arm to its full extension then route the cables through the arm, leaving enough slack to prevent stretching the cables when the arm is moved. [14] [15] [17] 6904-100136 <00>...
  • Page 9 A: Adjust arm extend / retract tension B: Adjust left / right swivel tension [18] C: Adjust up / down tilt tension Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations.
