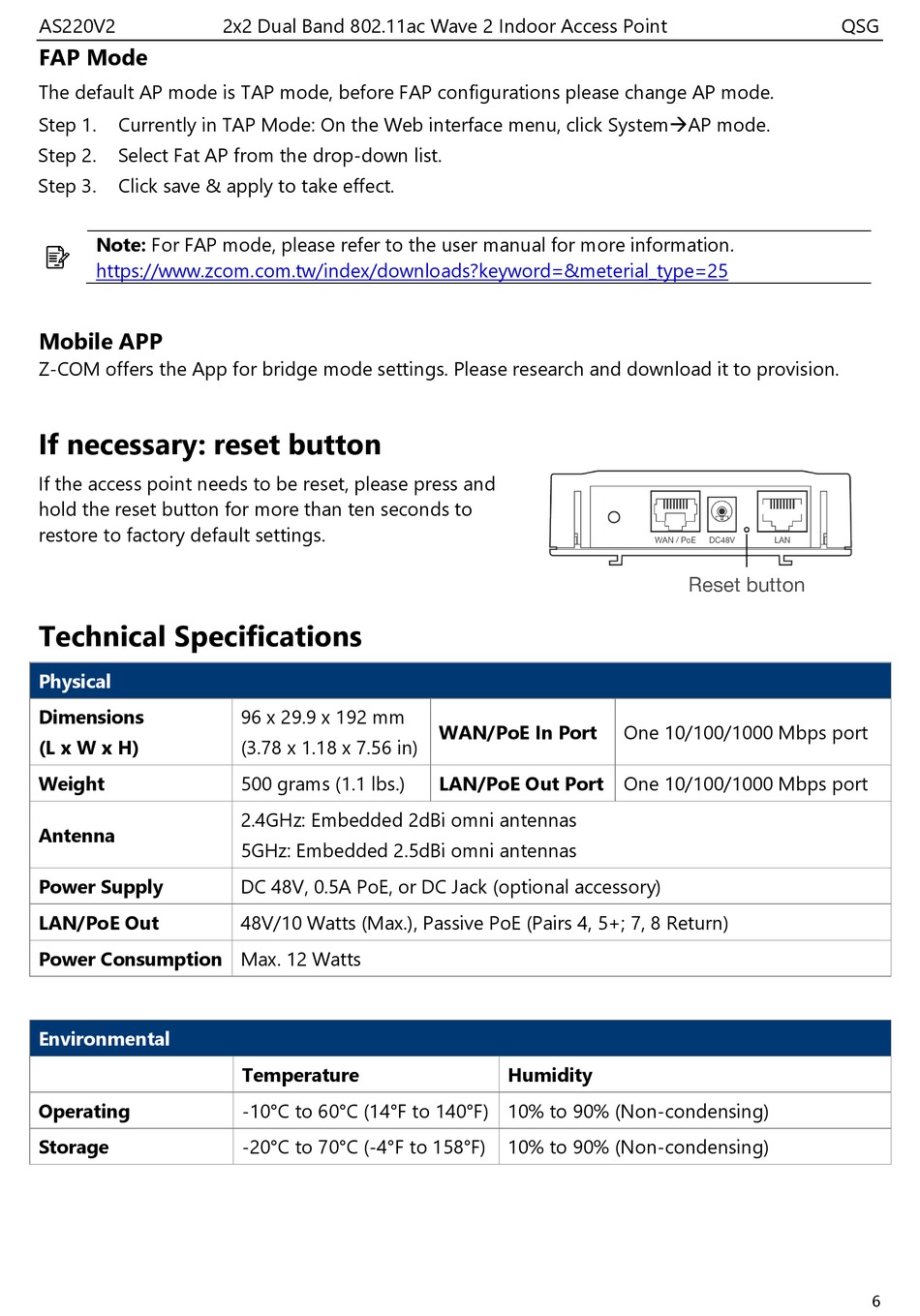

Technical Specifications - Zcom AS220V2 Quick Start Manual

AS220V2
FAP Mode
The default AP mode is TAP mode, before FAP configurations please change AP mode.
Step 1. Currently in TAP Mode: On the Web interface menu, click SystemAP mode.
Step 2. Select Fat AP from the drop-down list.
Step 3. Click save & apply to take effect.
Note: For FAP mode, please refer to the user manual for more information.
https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25
Mobile APP
Z-COM offers the App for bridge mode settings. Please research and download it to provision.
If necessary: reset button
If the access point needs to be reset, please press and
hold the reset button for more than ten seconds to
restore to factory default settings.

Technical Specifications

Physical
Dimensions
(L x W x H)
Weight
Antenna
Power Supply
LAN/PoE Out
Power Consumption Max. 12 Watts
Environmental
Operating
Storage
2x2 Dual Band 802.11ac Wave 2 Indoor Access Point
96 x 29.9 x 192 mm
(3.78 x 1.18 x 7.56 in)
500 grams (1.1 lbs.)
2.4GHz: Embedded 2dBi omni antennas
5GHz: Embedded 2.5dBi omni antennas
DC 48V, 0.5A PoE, or DC Jack (optional accessory)
48V/10 Watts (Max.), Passive PoE (Pairs 4, 5+; 7, 8 Return)
Temperature
-10°C to 60°C (14°F to 140°F) 10% to 90% (Non-condensing)
-20°C to 70°C (-4°F to 158°F)
WAN/PoE In Port
LAN/PoE Out Port One 10/100/1000 Mbps port
Humidity
10% to 90% (Non-condensing)
One 10/100/1000 Mbps port
QSG
6
