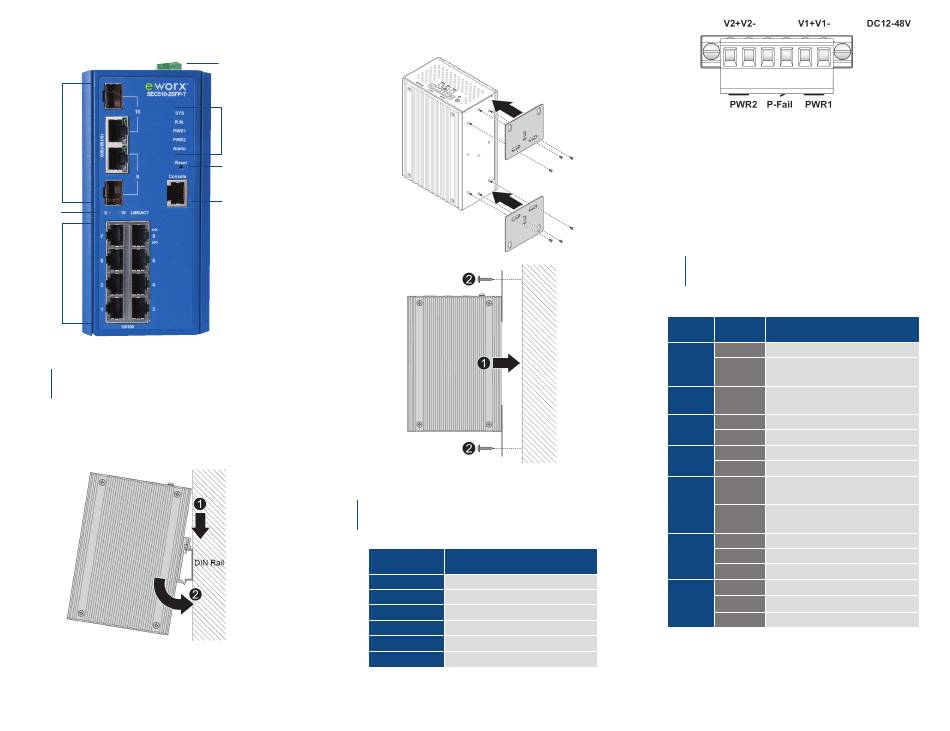

Product Overview
10/100/
1000
Ports
LEDs
10/100
Ports
1
Hardware Installation
DIN Rail Mounting
Wall Mounting
Power
LEDs
Reset
Console
2
Terminal Blocks
Terminal
V2-
V2+
P-Fail
P-Fail
V1-
V1+
Description
Power Input 2 (DC Ground)
Power Input 2 (12 to 48VDC)
Power Fault Relay
Power Fault Relay
Power Input 1 (DC Ground)
Power Input 1 (12 to 48VDC)
Wire Gauge: 12-24 AWG (3.31 - 0.205 mm2).
Torque:
7lb-in.
NOTE: P-Fail Relay is closed if both power input ports
are powered. The default is open.
3
LED Status
LED
Status
Description
Green
Normal operation
SYS
System down or initializing
Off
operation
Active when determining
R.M.
Green
Ring Master
Green
Power Applied
PWR1
Off
No Power
Green
Power Applied
PWR2
Off
No Power
Power is applied to one input
Red
but not both inputs
Alarm
No Power or Power is
Off
applied to both inputs
Solid
Link established
LNK
Blinking
Data present
Off
Not connected to Network
Green
1000M speed
SPD
Amber
100M speed
Off
10M speed
