Operator's Manual
Please indicate the following information from the service part drawing provided.
Model Number:____________________________
Model Description:_________________________

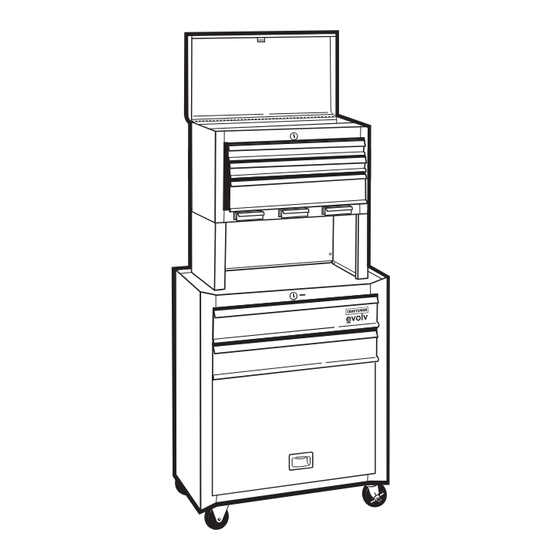

*Your model may vary from the one shown.
CAUTION: Read and follow all Safety Rules and Operating Instructions before first use
of this product. Retain this document for future reference.
Distributed by Sears Brands Management Corporation, Hoffman Estates, IL 60179 USA
SAFETY WARNINGS AND CAUTIONS:
• DO NOT stand on this product. You may fall which may cause personal injury.
• WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could
slip which may cause personal injury.
• When moving this product, do not pull it. Push the product to prevent personal injury.
• Stacked products should be bolted together. The products could become unstable and
tip, which may cause personal injury or product damage.
• Handle and swivel casters must be attached on the same side of the product.
• USE THE BRAKES when not moving this product. This will prevent the product from
rolling, which may cause personal injury or product damage.
• BE CAREFUL when opening more than one drawer. The product may become un
stable and tip, which may cause personal injury or product damage.
• DO NOT mount this product on a truck bed or any other moving object. This may cause
personal injury or product damage.
• DO NOT step in the drawers. You may fall which may cause personal injury.
• Appropriately secure this product before moving it with a forklift.
• DO NOT tow with power equipment. The product could tip, which may cause personal
injury or product damage.
• DO NOT alter this product in any manner. For example, do not weld external lockbars or
attach electrical equipment. This may cause product damage or personal injury.
• Keep the product on level surfaces. T he product may become unstable and tip if stored
or moved on an un-level surface, which may cause personal injury or product damage.
• When rearranging the drawers, be careful not to put too many heavy items in the top
drawers. The product could become top heavy and tip, which may cause personal injury
or product damage.
• BE CAREFUL when closing the cover. Remove hands before the cover closes
completely to prevent personal injury.
• Close the cover and lock the drawers and doors before moving this product. The
drawers or doors could come open and make the product unstable and tip, which may
cause personal injury or product damage.
• When locking this product, close the drawers before closing the cover for lock bars to
work properly.
• The maximum weight for each drawer should be no more than 25 pounds.
• The maximum product weight, including contents, should be no more than 300 pounds
for tool centers.
Call 1-800-4MY-HOME (1-800-469-4663) for Service Parts.
Refer to Service Parts Drawing for full listing of Service Parts.
F1711A1
SAFETY
2

Advertisement

loading

  Summary of Contents for Craftsman evolv

  • Page 1 SAFETY SAFETY WARNINGS AND CAUTIONS: • DO NOT stand on this product. You may fall which may cause personal injury. • WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could slip which may cause personal injury. • When moving this product, do not pull it. Push the product to prevent personal injury. •...
  • Page 2: Operation

    HARDWARE: • Attach casters using 1/4-20 x 7/16 • Position the chest on the riser. Secure TO LOCK CHEST: using four 10-16 x 1/2 sheet metal hex screws and 1/4-20 hex nuts. • Insert the lockbar (which stores in the 1/4-20 Hex Nut Wrench tighten.
  • Page 3: Maintenance

    MAINTENANCE • For casters, use high quality bearing grease, (yearly). • Lubricate the slides, (twice yearly). • Lubricate lock with graphite, (yearly). • Periodically the drawer fronts, drawer trim, and other surfaces should be mild detergent and water. • Auto wax will preserve the storage unit’s luster finish.
  • Page 4: Advertencias Y Precauciones De Seguridad

    SEGURIDA ADVERTENCIAS Y PRECAUCIONES DE SEGURIDAD: • NO se pare sobre este producto. Se puede caer y lesionarse. • USE GAFAS DE SEGURIDAD al quitar o volver a situar las correderas. Se podría resbalar la herramienta y causar lesiones personales. •...
  • Page 5: Montaje

    QUINCALLERIA: • Asegure las ruedecillas usando tornillos cabeza tronconónica de 8-32 x 1/4 y • Para volver a colocar el cajón, saque cuatro tuercas hexagonales de 8-32. hexagonales de 1/4-20 x 7/16 y el tope lo suficiente para enganchar la Tuerca Hexagonal de 1/4-20 tuercas hexagonales de 1/4-20.
  • Page 6: Mantenimiento

    INSTALACIÓN PLÁSTICA DEL COMPARTIMIENTO: • Si su pecho tiene compartimientos plásticos: Inserte la parte posteriora del compartimiento a un ángulo leve en la funda. Enderece el compartimiento y resbale dentro de la posición. Relance para los compartimientos restantes. MANTENIMIENTO • Para las ruedecillas, use grasa de alta calidad para cojinetes, (una vez al año).
