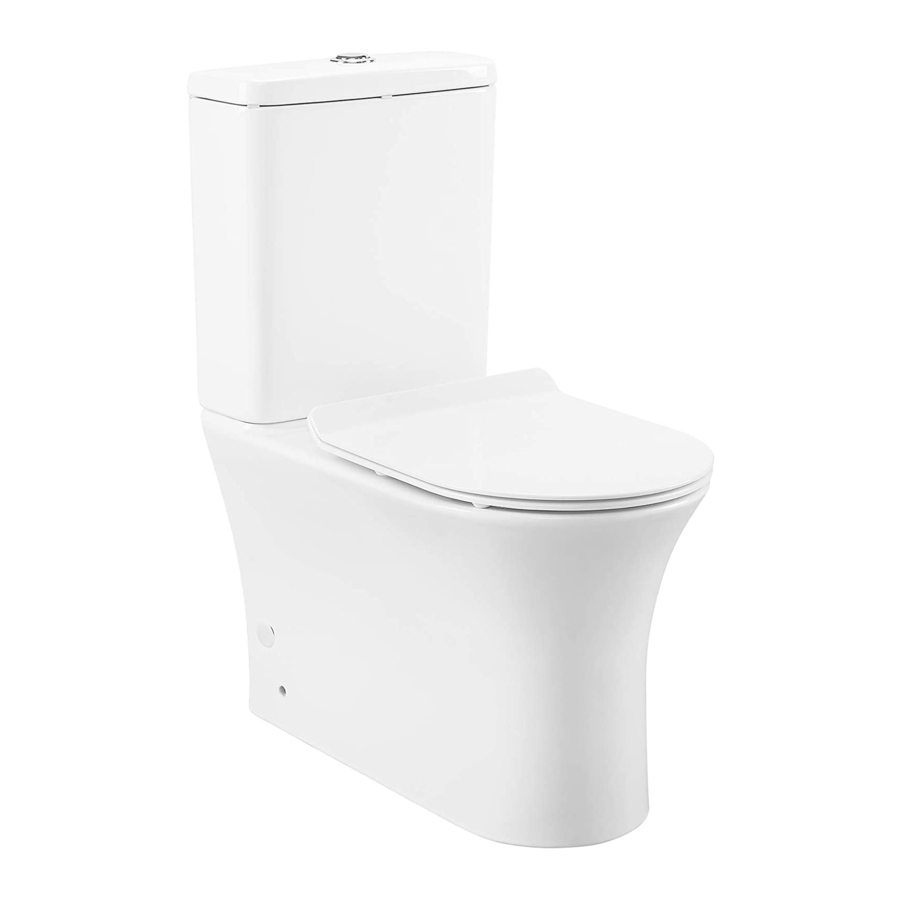

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Calice Two-Piece Elongated Rear Outlet Toilet SM-2T120 @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Thank you for your purchase! Thank you for purchasing a Swiss Madison Two-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com. - Page 3 MODELS 14 ¹¹⁄16” W” 5 ¹⁄2” 32 7⁄8” H” 25 ³⁄16” L” 16 ¹5⁄16” 7” 7” 16” Calice Collection SM-2T120 - White Model - Color ³⁄16” x 14 ¹¹⁄16“ x 32 7⁄8” L” x W” x H” — 2 —...
-
Page 4: Parts List
TWO-PIECE TOILET ROUGH DIMENSIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Two-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. -
Page 5: Installation Instructions
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 1. Remove Old Toilet · Close toilet supply valve and flush tank completely, use towel or sponge to remove excess water. · Disconnect and remove supply line, if you are replacing the valve shut off the main water supply first. ·... - Page 6 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 3. Connect Supply Hose 4. Attach Gasket · Thread the supply hose onto the tank. · Position the gasket on the bowl inlet. 5. Position Tank onto Bowl · Holes should line up so threaded rod can fit smoothly connecting the cistern body to the bow. NOTE: Drawings may not exactly define contour of china.
-
Page 7: Drill Holes
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 6. Secure Tank to Bowl · Slide the metal washer and the rubber washer onto the bolt. · Thread the bolts into the bottom of the tank tighten the bolts using a screwdriver. NOTE: Do not over tighten! Over tightening can lead to the ceramic cracking. Metal Washer Bolt... -
Page 8: Install Hardware
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 9. Install Hardware 10. Secure Toilet · Install anchors into all pre-drilled locations. · Return toilet to desired location. · Install brackets onto floor. · Carefully thread bolts onto the nuts on the bracket. · Tighten to secure into place, do not over tighten. ³⁄8”... - Page 9 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 13. Connect Push Button · Unscrew the big white nut on the push button and insert the button into the hole on the tank. · When the rods meet the push buttons, measure the height (H) with a ruler. ·...
- Page 10 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS Toilet Seat Installation 1. Dissassemble · Disassemble the cover cap and the hinge. Pull 2. Construct Hinges · Insert screw and nut into the hole on the hinge. · Attach blind hole screw fixing to the bottom on the screw. 3.
- Page 11 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 4. Adjust and Cover Hinges · Be sure the hinge is all the way forward for proper seat fitting. · Place the covers onto the hinges. Incorrect: Correct: 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. ·...
- Page 12 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
