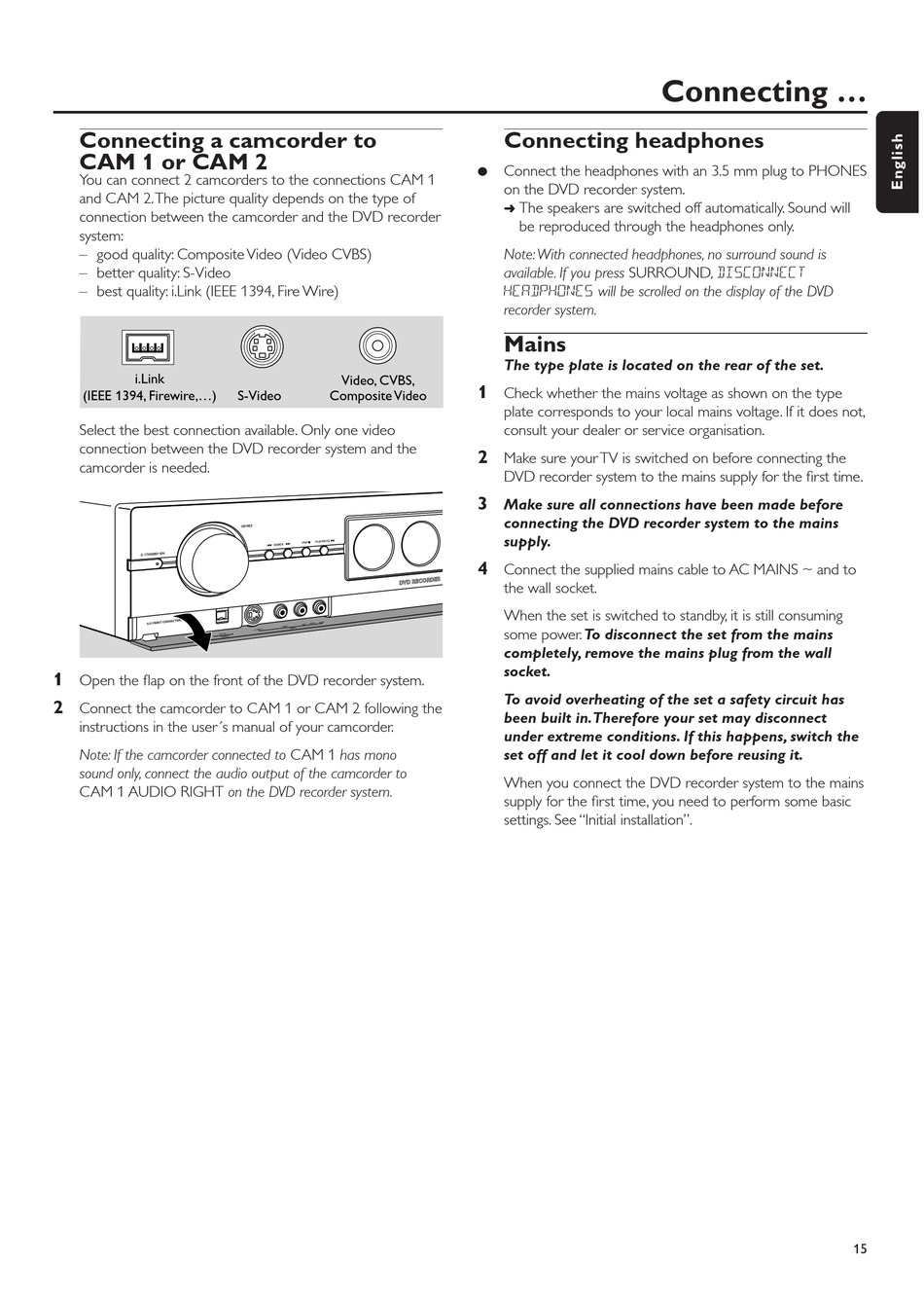

Connecting a camcorder to
CAM 1 or CAM 2
You can connect 2 camcorders to the connections CAM 1
and CAM 2.The picture quality depends on the type of
connection between the camcorder and the DVD recorder
system:
– good quality: Composite Video (Video CVBS)
– better quality: S-Video
– best quality: i.Link (IEEE 1394, Fire Wire)
i.Link
(IEEE 1394, Firewire,...)
Select the best connection available. Only one video
connection between the DVD recorder system and the
camcorder is needed.
1
Open the flap on the front of the DVD recorder system.
2
Connect the camcorder to CAM 1 or CAM 2 following the
instructions in the user´s manual of your camcorder.
Note: If the camcorder connected to CAM 1 has mono
sound only, connect the audio output of the camcorder to
CAM 1 AUDIO RIGHT on the DVD recorder system.
Video, CVBS,
S-Video Composite Video

Connecting headphones

Connect the headphones with an 3.5 mm plug to PHONES
on the DVD recorder system.
The speakers are switched off automatically. Sound will
be reproduced through the headphones only.
Note:With connected headphones, no surround sound is
available. If you press SURROUND, DISCONNECT
HEADPHONES will be scrolled on the display of the DVD
recorder system.

Mains

The type plate is located on the rear of the set.
1
Check whether the mains voltage as shown on the type
plate corresponds to your local mains voltage. If it does not,
consult your dealer or service organisation.
2
Make sure your TV is switched on before connecting the
DVD recorder system to the mains supply for the first time.
3
Make sure all connections have been made before
connecting the DVD recorder system to the mains
supply.
4
Connect the supplied mains cable to AC MAINS ~ and to
the wall socket.
When the set is switched to standby, it is still consuming
some power. To disconnect the set from the mains
completely, remove the mains plug from the wall
socket.
To avoid overheating of the set a safety circuit has
been built in.Therefore your set may disconnect
under extreme conditions. If this happens, switch the
set off and let it cool down before reusing it.
When you connect the DVD recorder system to the mains
supply for the first time, you need to perform some basic
settings. See "Initial installation".
Connecting ...
15
