28.09.2017
WidowX Robot Arm Assembly Guide
excess off onto the side of the spoon.
Building with Turbo Fuse & Turbo Lock

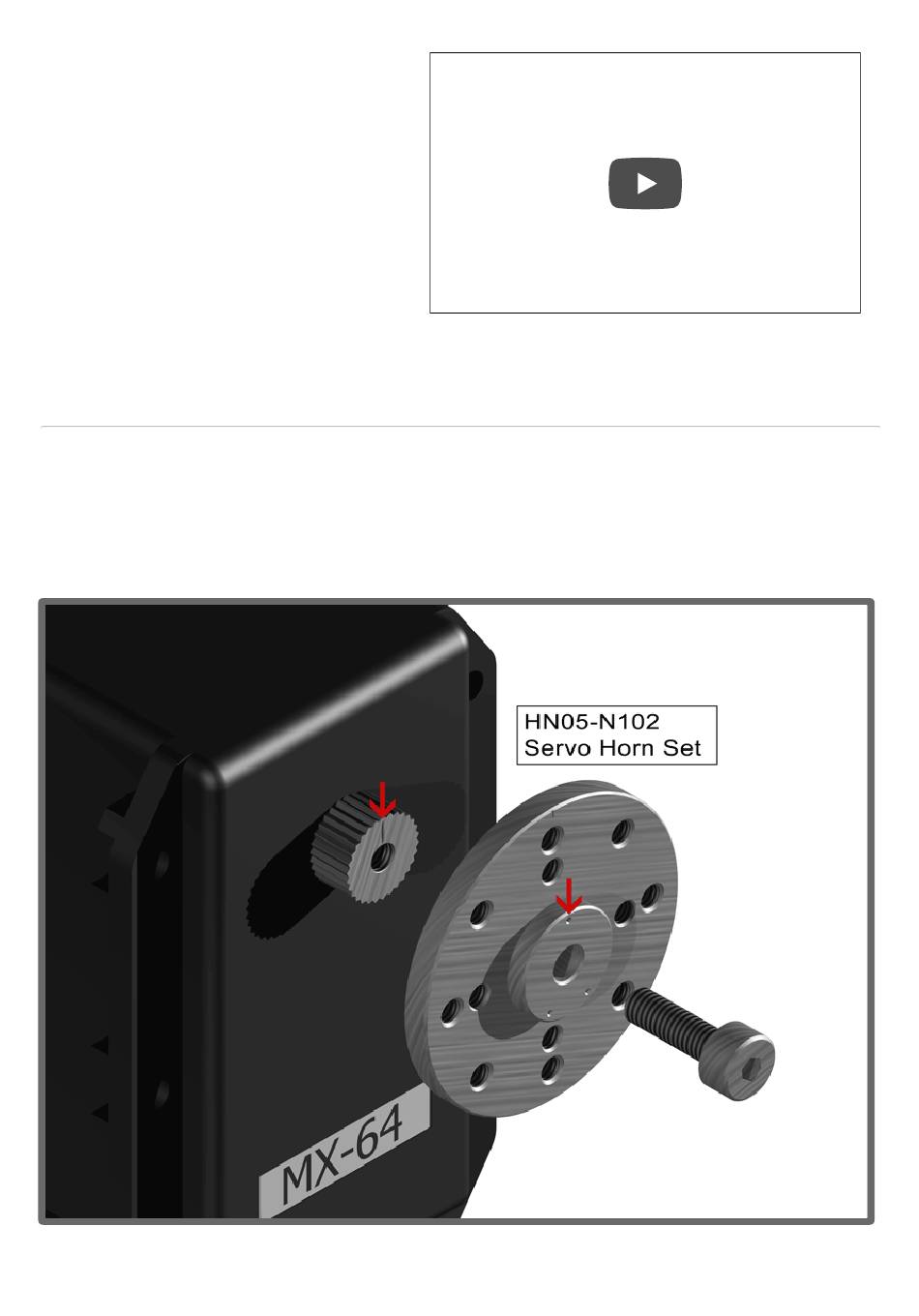

Horn Installation
Mount one each of the HN05-N102 Servo Horn to the two MX-64 servos using a Hex Socket
Head M3 x 8mm bolt. There is a notch on the spline, indicating the position of the servo. Make
sure this is facing up (centered position) and that the single dot on the horn is aligned with the
notch, as shown.
NOTE: there is a plastic washer that you will place between the horn and the
servo.
http://www.trossenrobotics.com/productdocs/assemblyguides/widowx-robot-arm-mk2.html
7/24
