WidowX Robot Arm Assembly Guide

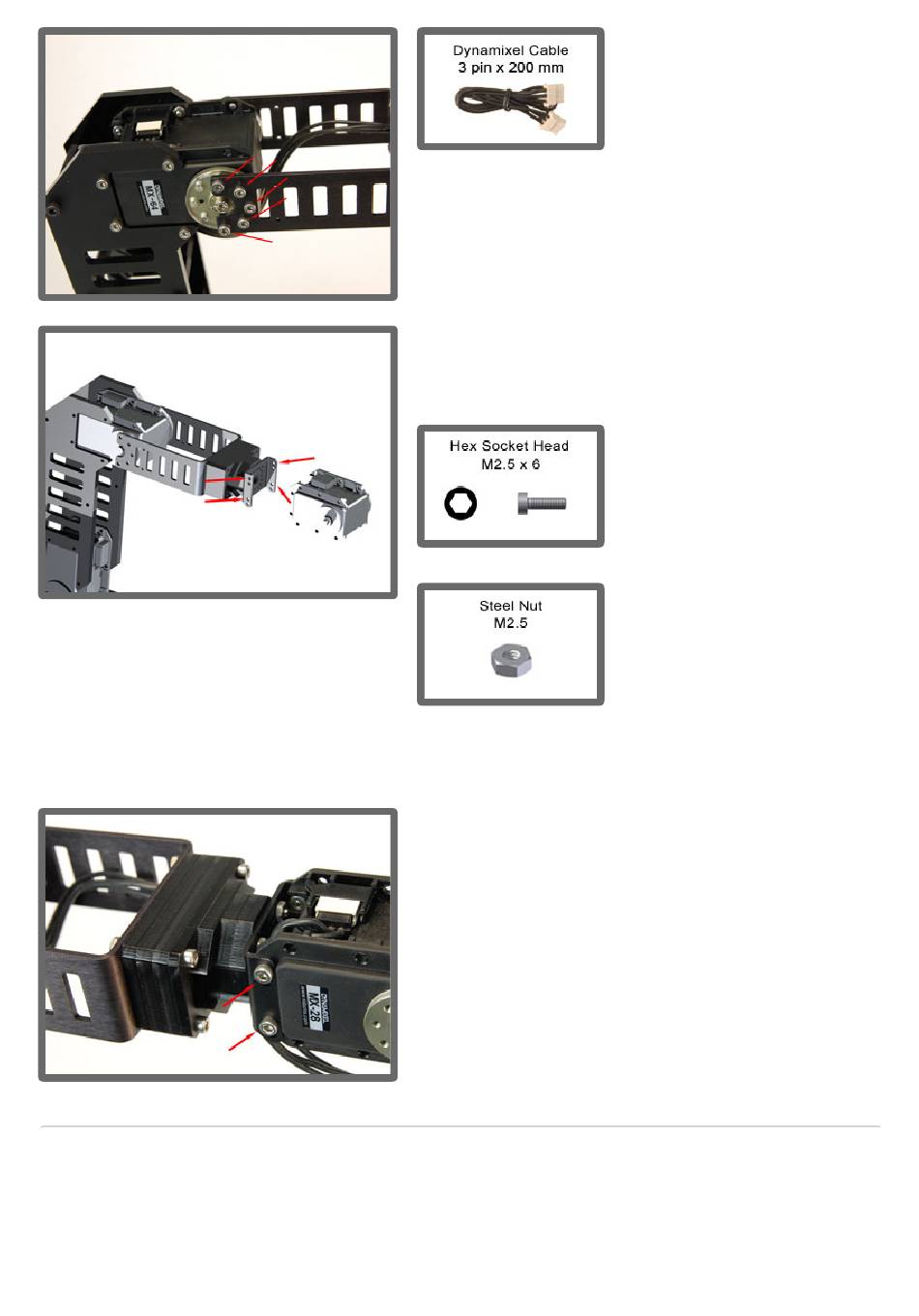

Seat 4x M2.5 nuts in the bottom sockets of the ID #
4 servo and attach it to the FR07-S101K Frame as
shown.
4 x
4 x
Connect the cable coming from Servo ID # 3 to
Servo ID #4. Picture shown for reference, arrows
reference bolts in prior step.
Build the Wrist
Mount the Bottom Reverse Bracket to FR07-H101
Hinge Frame.
2 x 2 x
