Pay close attention to the orientation of the plates. Misaligning the plates can cause your arm to
be at the wrong angle when centered.
http://www.trossenrobotics.com/productdocs/assemblyguides/widowx-robot-arm-mk2.html
WidowX Robot Arm Assembly Guide

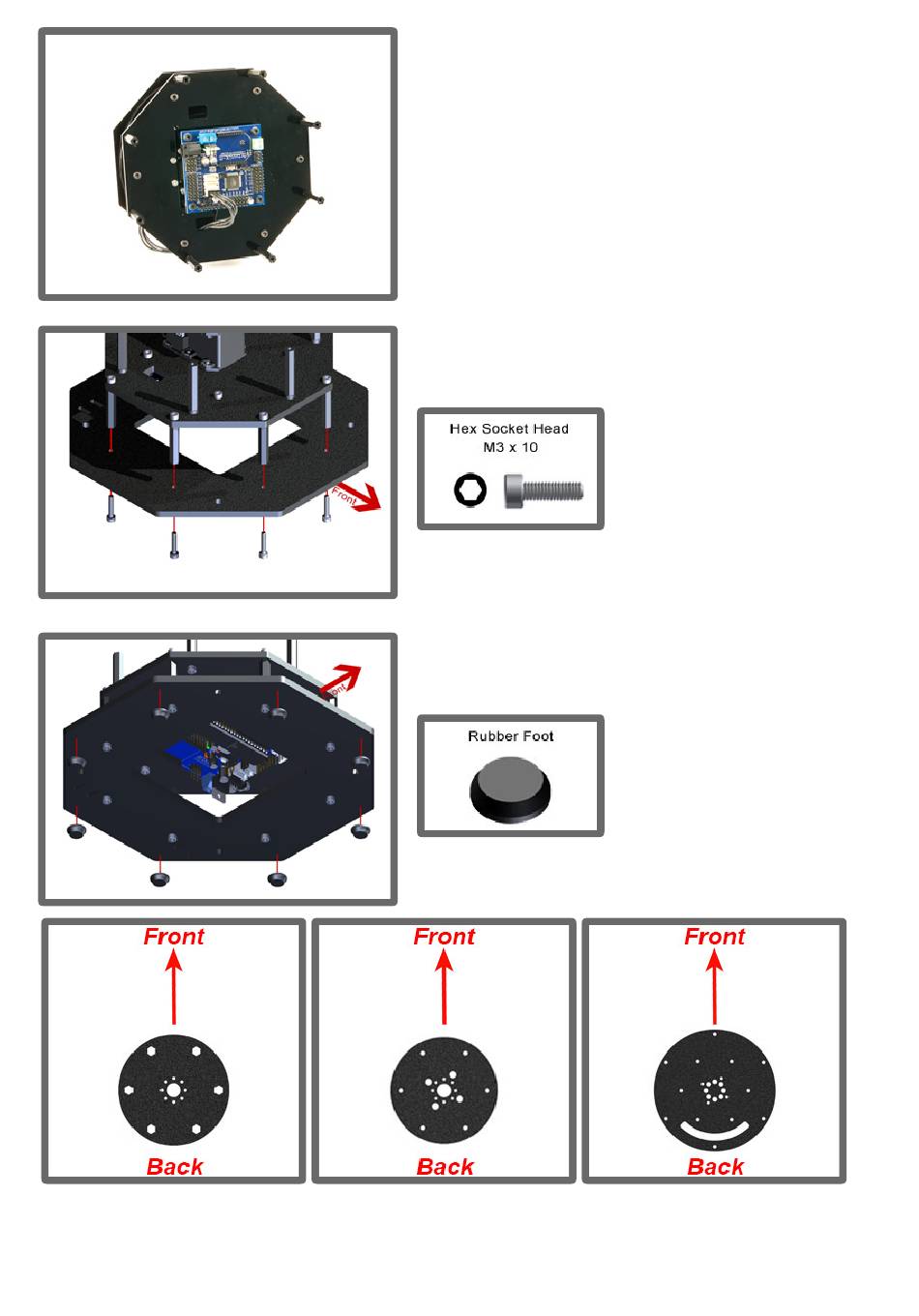

Mount the Bottom Base to the standoffs on the
bottom side of the Middle Base.
8 x
Apply the Rubber Feet to the bottom side of the
Bottom Base.
8 x
