WidowX Robot Arm Assembly Guide

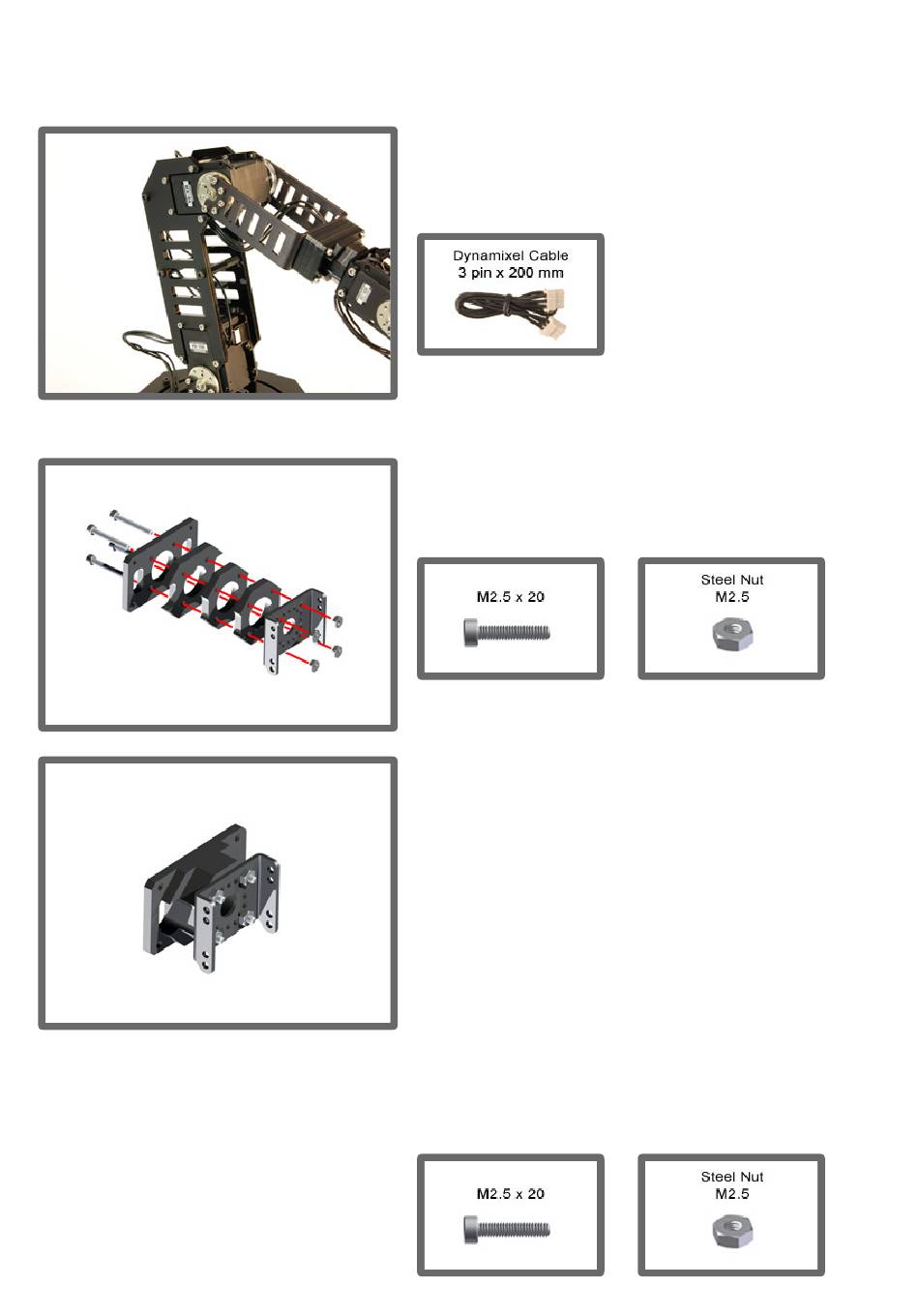

Picture shown for reference (ignore forearm section
for now). Run a 200mm cable from the Shoulder
servo to the Elbow servo.
1x
Next we will build the forearm portion of the arm.
Stack Forearm Spacers 3, 4, 5 (2x), as shown and
bolt together with the FR07-S101K Frame.
4 x
Stack Forearm Spacers 1 (2x), 2, 3, as shown and
bolt together to the X-Long Bracket & forearm
assembly from previous step.
4 x
4 x
4 x
18/24
