Engine Oil Mist Detection System
MULTIPLEX

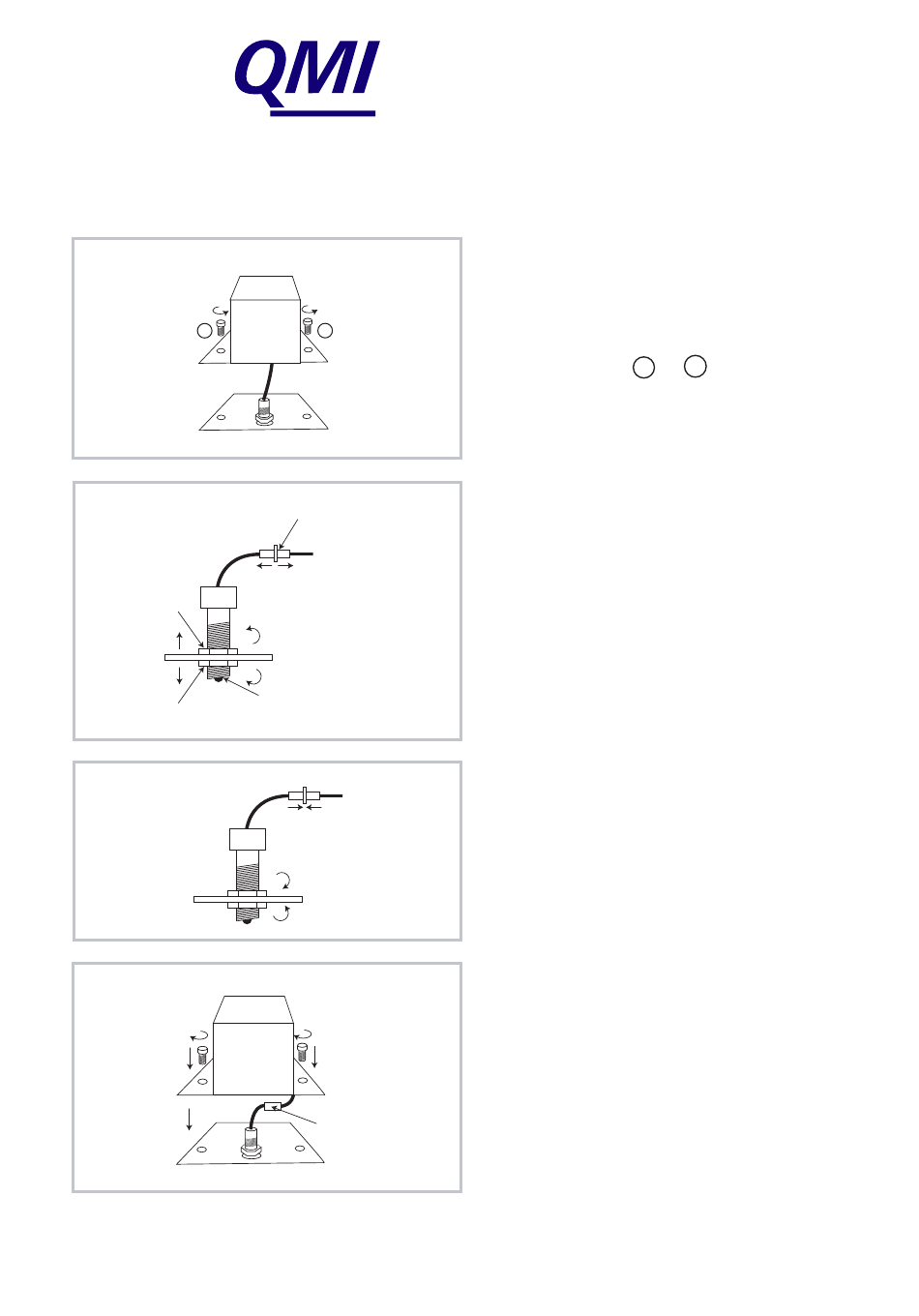

Replacement of Fan Failure Sensor
1
TO REMOVE FAN FAILURE
HOUSING
a
b
Remove fan failure box case by
unscrewing a & b screws only
2
TO REPLACE AND ADJUST GAP
connector
BETWEEN SENSOR AND BAR
Rotate screw to achieve correct
unplug connector
gap
locking nut
electro-magnet sensing tip
locking nut
3
TO REASSEMBLE
lock sensor in correct position and
reconnect plug
4
REPLACING FAN FAILURE
HOUSING
Re-attach box to fan, taking care
not to trap wire and connector
connector
Maintenance
Part5-2
EM6/March 2015
