WIRING OF SOCKET

125mm
  
j
Retaining ring
k
Connecting block with terminals
l
Bared and tinned wires
m
Main housing of socket
n
Cable locking screw
o
Main securing thread to hold socket to plug
p
24mm adhesive heat shrink sleeving (not supplied by QMI)

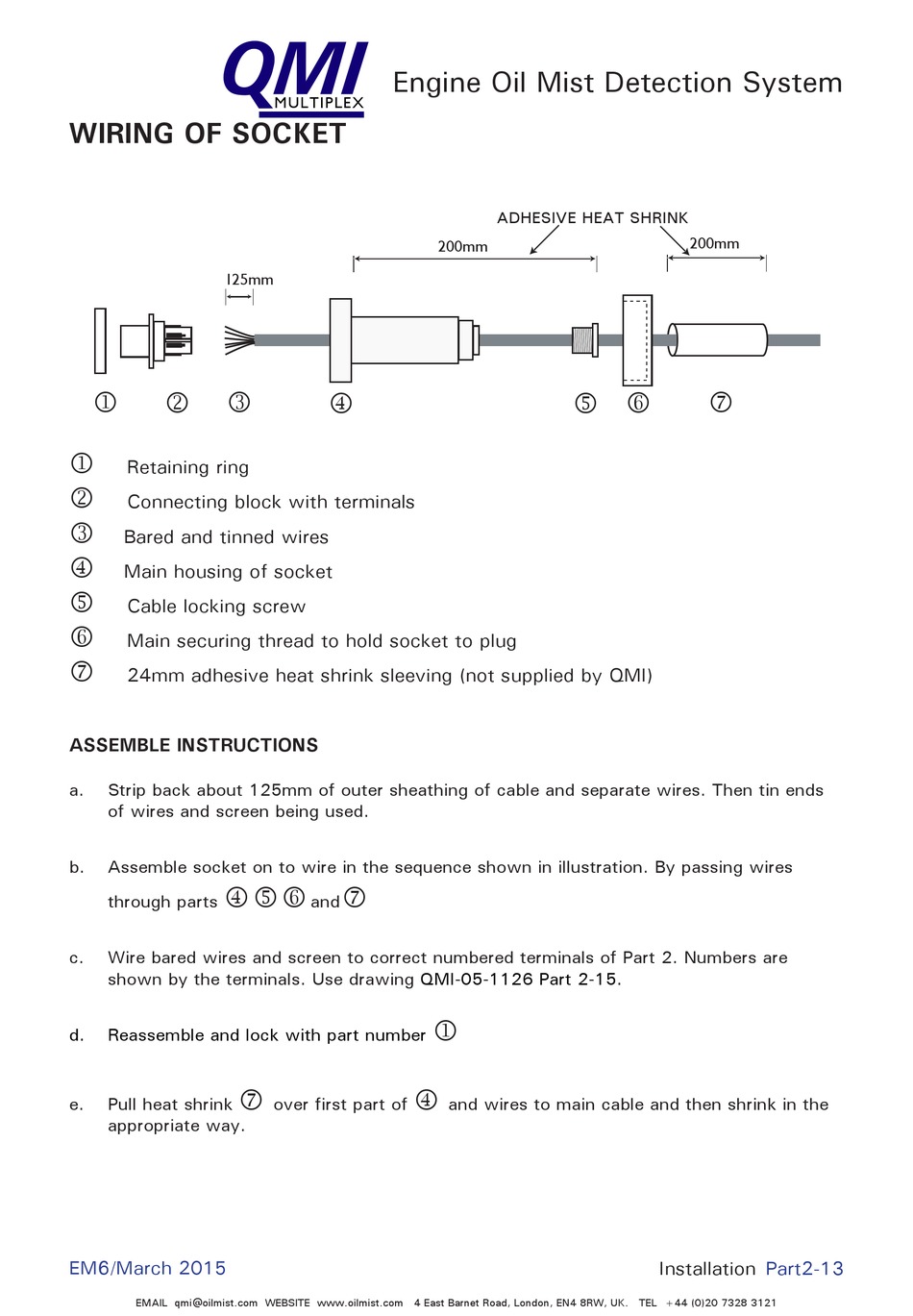

ASSEMBLE INSTRUCTIONS
a. Strip back about 125mm of outer sheathing of cable and separate wires. Then tin ends
of wires and screen being used.
b. Assemble socket on to wire in the sequence shown in illustration. By passing wires
m no
through parts
c. Wire bared wires and screen to correct numbered terminals of Part 2. Numbers are
shown by the terminals. Use drawing
d. Reassemble and lock with part number
p
e. Pull heat shrink
appropriate way.
