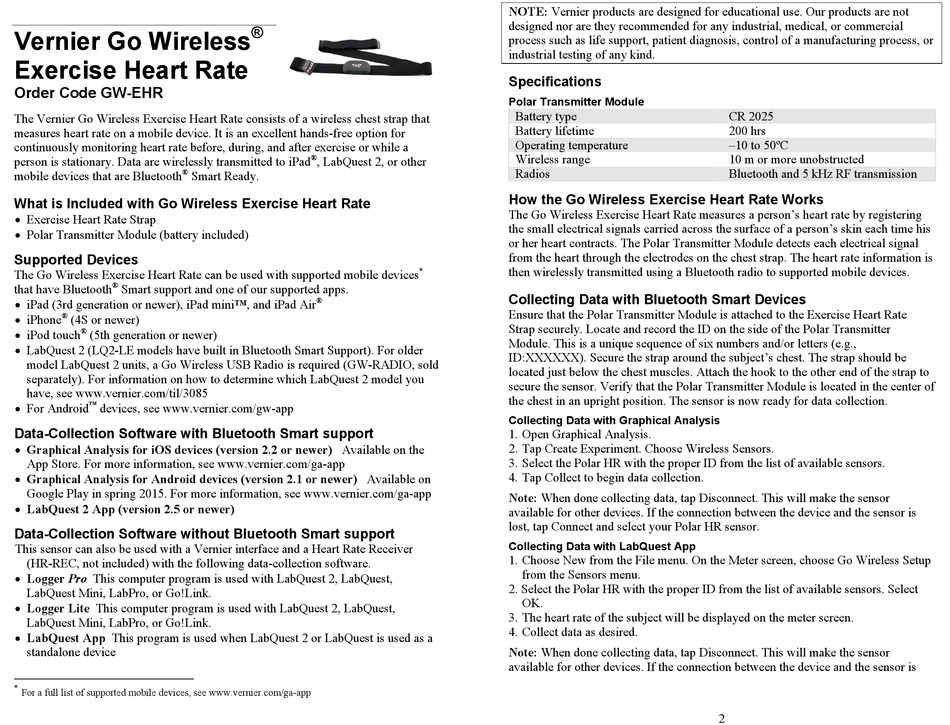

Vernier Go Wireless GW-EHR Manual

Vernier Go Wireless
Exercise Heart Rate
Order Code GW-EHR
The Vernier Go Wireless Exercise Heart Rate consists of a wireless chest strap that
measures heart rate on a mobile device. It is an excellent hands-free option for
continuously monitoring heart rate before, during, and after exercise or while a
person is stationary. Data are wirelessly transmitted to iPad
®
mobile devices that are Bluetooth Smart Ready.
What is Included with Go Wireless Exercise Heart Rate

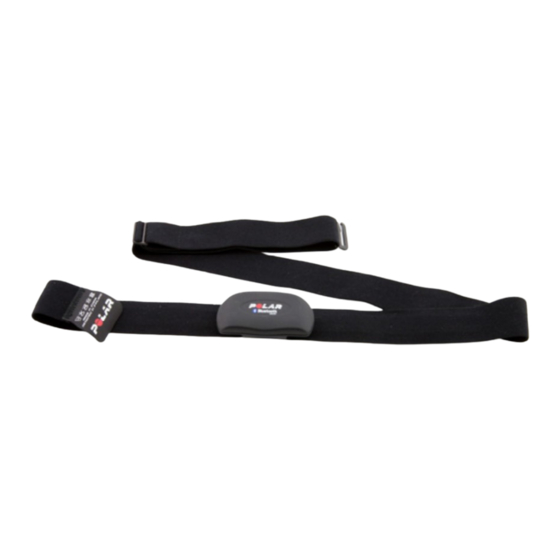

 Exercise Heart Rate Strap
 Polar Transmitter Module (battery included)
Supported Devices
The Go Wireless Exercise Heart Rate can be used with supported mobile devices
®
that have Bluetooth Smart support and one of our supported apps.
 iPad (3rd generation or newer), iPad mini™, and iPad Air
 iPhone ®
(4S or newer)
®
 iPod touch
(5th generation or newer)
 LabQuest 2 (LQ2-LE models have built in Bluetooth Smart Support). For older
model LabQuest 2 units, a Go Wireless USB Radio is required (GW-RADIO, sold
separately). For information on how to determine which LabQuest 2 model you
have, see www.vernier.com/til/3085
 For Android ™
devices, see www.vernier.com/gw-app
Data-Collection Software with Bluetooth Smart support
 Graphical Analysis for iOS devices (version 2.2 or newer) Available on the
App Store. For more information, see www.vernier.com/ga-app
 Graphical Analysis for Android devices (version 2.1 or newer) Available on
Google Play in spring 2015. For more information, see www.vernier.com/ga-app
 LabQuest 2 App (version 2.5 or newer)
Data-Collection Software without Bluetooth Smart support
This sensor can also be used with a Vernier interface and a Heart Rate Receiver
(HR-REC, not included) with the following data-collection software.
 Logger Pro This computer program is used with LabQuest 2, LabQuest,
LabQuest Mini, LabPro, or Go!Link.
 Logger Lite This computer program is used with LabQuest 2, LabQuest,
LabQuest Mini, LabPro, or Go!Link.
 LabQuest App This program is used when LabQuest 2 or LabQuest is used as a
standalone device
*
For a full list of supported mobile devices, see www.vernier.com/ga-app
®
®
, LabQuest 2, or other
*
®
NOTE: Vernier products are designed for educational use. Our products are not
designed nor are they recommended for any industrial, medical, or commercial
process such as life support, patient diagnosis, control of a manufacturing process, or
industrial testing of any kind.

Specifications

Polar Transmitter Module
Battery type
Battery lifetime
Operating temperature
Wireless range
Radios
How the Go Wireless Exercise Heart Rate Works
The Go Wireless Exercise Heart Rate measures a person's heart rate by registering
the small electrical signals carried across the surface of a person's skin each time his
or her heart contracts. The Polar Transmitter Module detects each electrical signal
from the heart through the electrodes on the chest strap. The heart rate information is
then wirelessly transmitted using a Bluetooth radio to supported mobile devices.
Collecting Data with Bluetooth Smart Devices
Ensure that the Polar Transmitter Module is attached to the Exercise Heart Rate
Strap securely. Locate and record the ID on the side of the Polar Transmitter
Module. This is a unique sequence of six numbers and/or letters (e.g.,
ID:XXXXXX). Secure the strap around the subject's chest. The strap should be
located just below the chest muscles. Attach the hook to the other end of the strap to
secure the sensor. Verify that the Polar Transmitter Module is located in the center of
the chest in an upright position. The sensor is now ready for data collection.
Collecting Data with Graphical Analysis
1. Open Graphical Analysis.
2. Tap Create Experiment. Choose Wireless Sensors.
3. Select the Polar HR with the proper ID from the list of available sensors.
4. Tap Collect to begin data collection.
Note: When done collecting data, tap Disconnect. This will make the sensor
available for other devices. If the connection between the device and the sensor is
lost, tap Connect and select your Polar HR sensor.
Collecting Data with LabQuest App
1. Choose New from the File menu. On the Meter screen, choose Go Wireless Setup
from the Sensors menu.
2. Select the Polar HR with the proper ID from the list of available sensors. Select
OK.
3. The heart rate of the subject will be displayed on the meter screen.
4. Collect data as desired.
Note: When done collecting data, tap Disconnect. This will make the sensor
available for other devices. If the connection between the device and the sensor is
CR 2025
200 hrs
–10 to 50ºC
10 m or more unobstructed
Bluetooth and 5 kHz RF transmission
2
