Installation
Packing List
•
•
•
IS
T H
E
•
S ID
U P
215-1582 Rev. H; ECN 18-02-003
© 2018 Bradley
6/13/2018
1 of 7

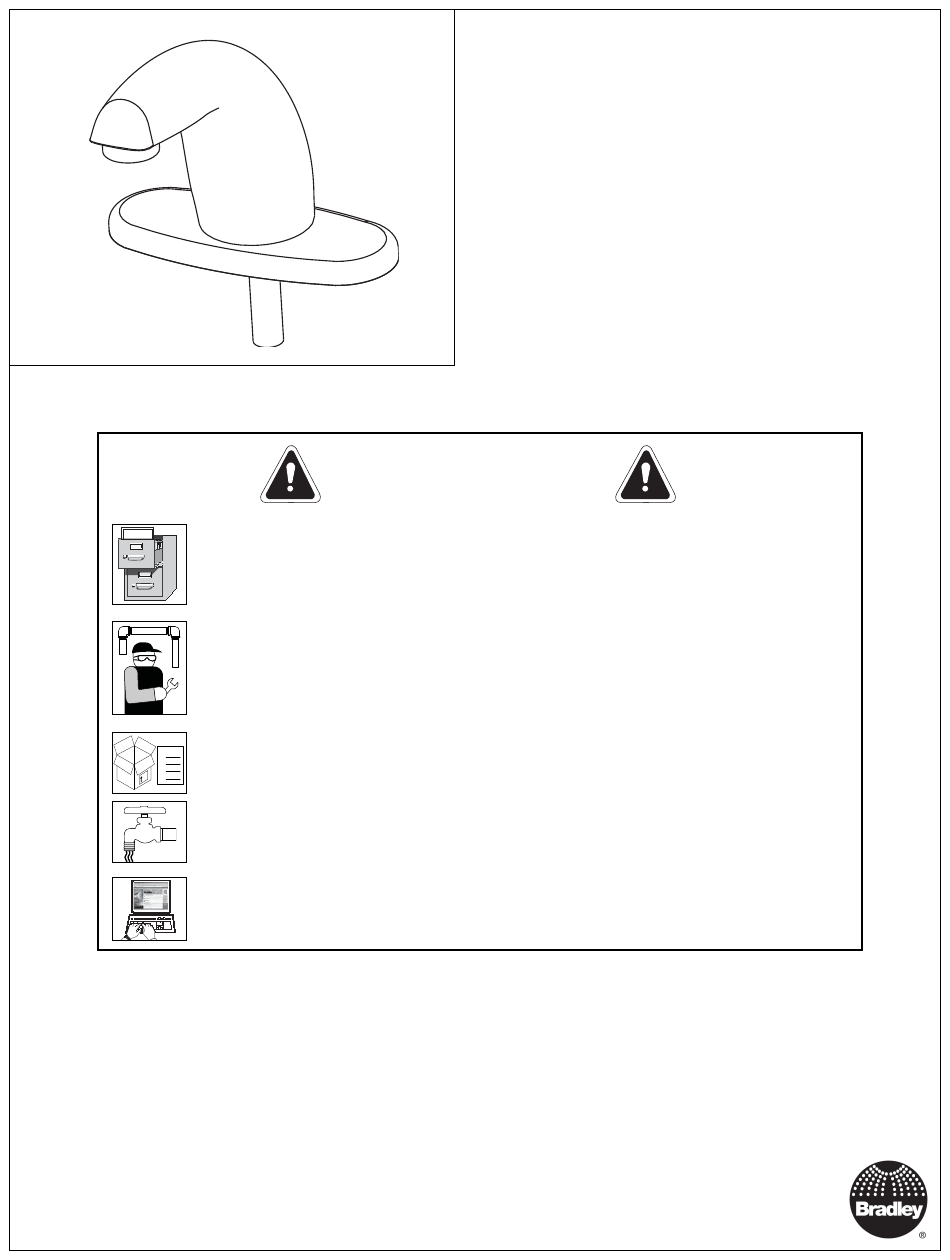

IMPORTANT!
Read this entire installation manual to ensure proper installation, then file
this manual with the owner or maintenance department. Compliance and
conformity to local codes and ordinances is the responsibility of the installer.
Pressurized plumbing fixtures must be installed in accordance with
manufacturer's recommendations. The supply piping to these devices must
be securely anchored to the building structure to prevent unnecessary
movement of the installed device when operated by the user. Use extreme
caution when installing the device to prevent damage to the exposed
significant surface.
Separate parts from packaging and make sure all parts are accounted for
before discarding any packaging material. If any parts are missing, do not
begin installation until you obtain the missing parts.
Flush water supply lines before making connections. DO NOT use pipe dope
on any faucet or supply connections. Possible valve contamination could
occur which will void any warranty. Teflon tape is the recommended sealant.
Product warranties may be found in the "Products" section of our web site at
www.bradleycorp.com.
Installation
™

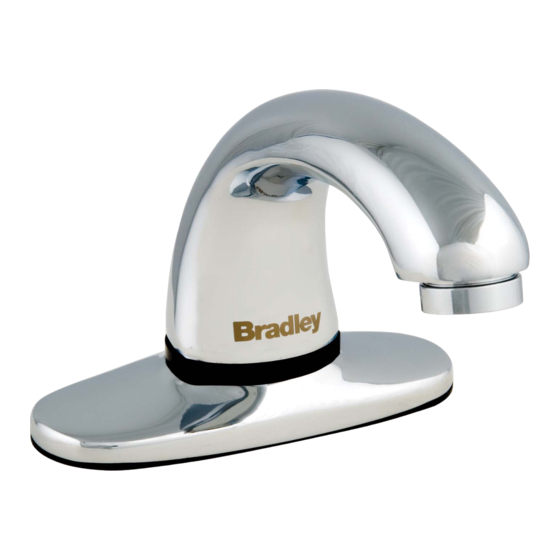

Aerada
1200 Series
CS Faucet
S53-315 Battery Operated
Capacitive Sensing Faucet
Centershank with 4-inch Trim Plate
(Optional: 8-inch or no Trim Plate)
Menomonee Falls, WI 53052 USA
800-BRADLEY (800 272 3539
P.O. Box 309
bradleycorp.com
Advertisement
Related Manuals for Bradley S53-315
Summary of Contents for Bradley S53-315
- Page 1 Installation ™ Aerada 1200 Series CS Faucet S53-315 Battery Operated Capacitive Sensing Faucet Centershank with 4-inch Trim Plate (Optional: 8-inch or no Trim Plate) IMPORTANT! Installation Read this entire installation manual to ensure proper installation, then file this manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances is the responsibility of the installer.
- Page 2 • Control Module WASHER BLACK • Grounding Kit SENSOR • Dirt Filter WIRE DRAIN GROUNDING • 1/2'' NPS x 1/2'' NPS x 12'' hose included WIRE VALVE • (4) Alkaline Batteries included CONTROL MODULE 6/13/2018 Bradley • 215-1582 Rev. H; ECN 18-02-003...
- Page 3 After removing Trim Plate, re-attach gaskets and faucet spacer using shorter M4 x 12MM screws (supplied). Do not re-install screw spacers. Long Trim Plate Screws White Plastic Screw Spacers Short Trim Plate Screws Bradley • 215-1582 Rev. H; ECN 18-02-003 6/13/2018...
- Page 4 ATTACH ACTIVATION HARDWARE TO SHANK BRASS MOUNTING NUT IN THE ORDER SHOWN. Connect the Valve Control Module PLACE RUBBER WASHER INTO WHITE TOP NUT FITTING. HAND TIGHTEN VALVE CONTROL MODULE TO FAUCET SHANK. 6/13/2018 Bradley • 215-1582 Rev. H; ECN 18-02-003...
- Page 5 ON ONE OF THE THREADED STUDS AND FASTEN WITH LOCK WASHER AND NUT. RING TERMINAL SIDE CONNECT THIS END OF SINK SINK GROUND WIRE GROUND WIRE TO ONE TAB ON U-TAB CONNECTION. U-TAB CONNECTION Bradley • 215-1582 Rev. H; ECN 18-02-003 06/13/2018...
- Page 6 (OR AC POWER CONNECTOR) SECURE BATTERY COMPARTMENT TO WALL USING WALL ANCHORS OR DOUBLE-SIDED TAPE. INSERT (4) D-CELL ALKALINE REMOVE BATTERY BATTERIES AND BOX COVER BY REPLACE COVER. UNSCREWING (2) PHILLIPS SCREWS. 6/13/2018 Bradley • 215-1582 Rev. H; ECN 18-02-003...
- Page 7 If the connector has broken off of the black sensor wire or the valve box appears to be Broken or corrupt sensor wire defective please contact Bradley Technical Service. Do not attempt to repair the valve box or defective valve box or sensor wire.
