Whelen Engineering Company 6220-01-057-0746 Installation Manual

Installation Guide:
Beacon, Strobe Light (24V)
NSN:6220-01-057-0746
2
4

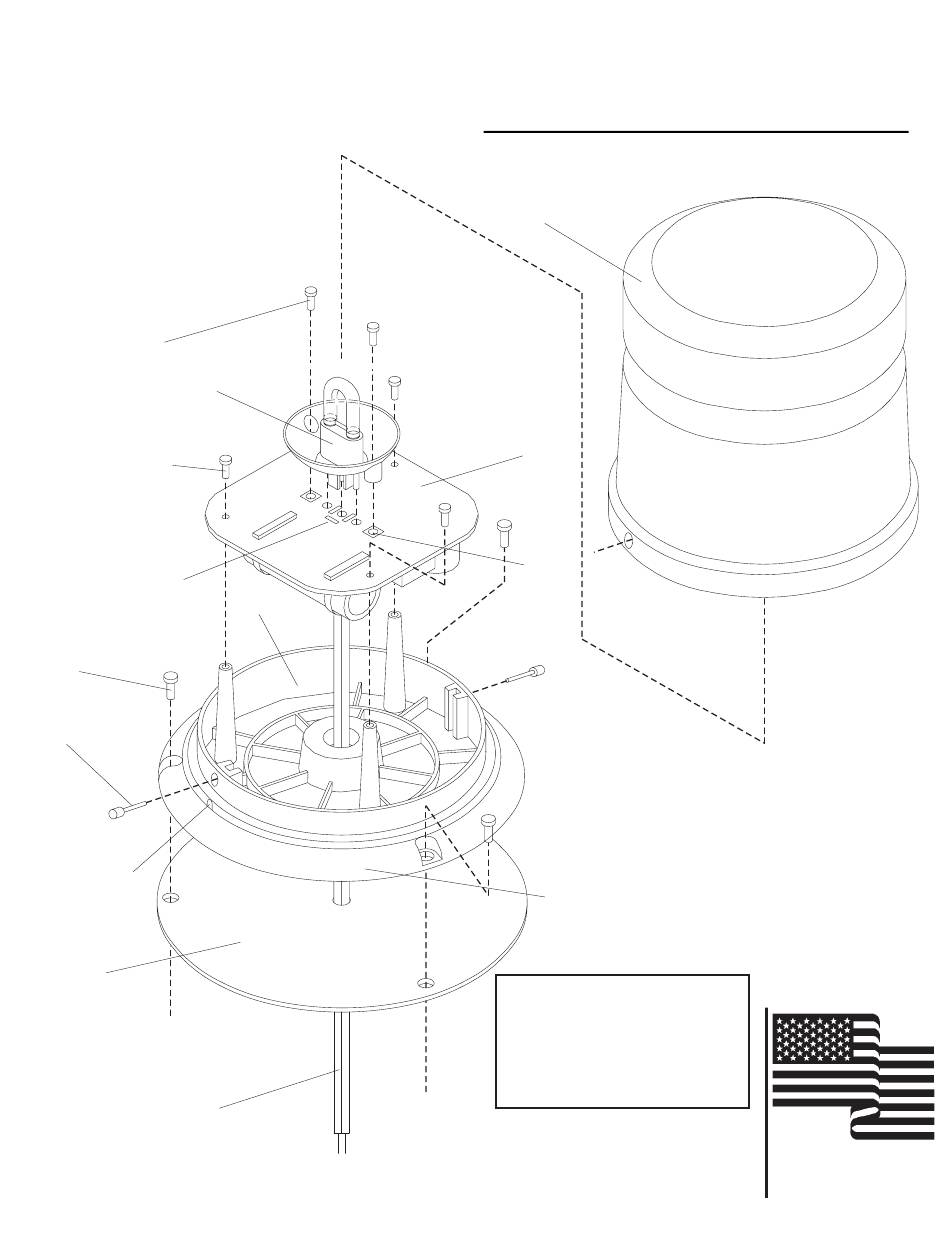

WHEN INSERTING FLASH
TUBE ASSEMBLY INTO
STROBE POWER SUPPLY
ASSEMBLY, ALIGN THE THREE
PRONGS ON FLASH TUBE
ASSEMBLY WITH SLOTS ON
STROBE POWER SUPPLY
ASSEMBLY
8
9
IMPORTANT NOTE:
KEEP DRAIN HOLE
IN BASE FACING
REAR OF BEACON.
10
WIRES TO BE CRIMPED TO CUSTOMER
SUPPLIED TWO CONDUCTOR CABLE.
BLACK WIRE, NEGATIVE (-) GROUND,
RED WIRE, POSITIVE (+).
NOTE: SEE BOX COPY ON PAGE 2 FOR
IMPORTANT WIRING INSTRUCTIONS.
©1998 Whelen Engineering Company Inc.
Form No.13406A (091099)
3
7
WARNING: All customer supplied wires that connect to
the positive (+) terminal of the battery, must be sized to
supply at least 125% of the maximum operating current,
and fused "at the battery" to carry that load.
WITH POLYCARBONATE BASE
1
5
6
SEE OTHER SIDE OF PAGE FOR
COMPLETE PARTS LISTING.
BASE CAN BE USED FOR BOTH 1 INCH (NPT) PIPE MOUNTING,
OR PERMANENT MOUNTING. FOR PERMANENT MOUNTING
USE THREE SCREWS ITEM 9 AND GASKET 11.
WARNING... THE STROBE POWER
SUPPLY IS A HIGH VOLTAGE
DEVICE. DO NOT REMOVE TUBES OR
DISMANTLE STROBE LIGHT HEAD
ASSEMBLY WHILE IN OPERATION.
WAIT 10 MINUTES AFTER TURNING
OFF POWER BEFORE STARTING
WORK OR TROUBLE SHOOTING.
MADE
IN THE U.S.A.
