CONDTROL Vector 100 User Manual page 9

LASER DISTANCE METER
EN

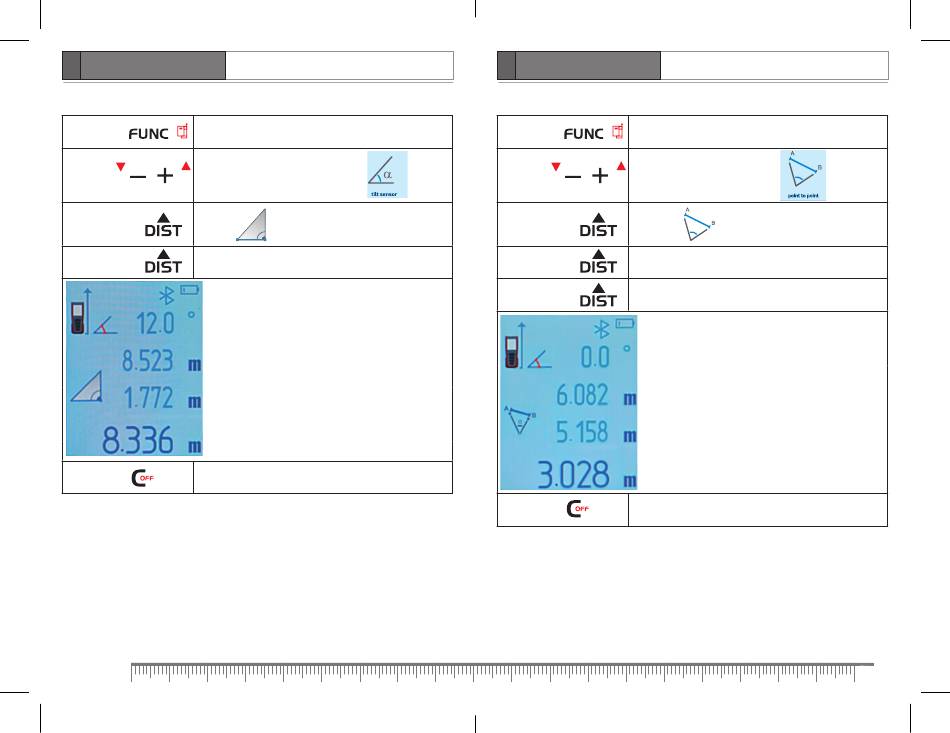

Calculation of horizontal distance by tilt sensor
Short press Enter menu of functions.
Select function "Calculation
Short press /
of horizontal distance by tilt sensor"
Symbol
Short press
is on.
Short press Take first measurement (hypotenuse).
- tilt angle value (measured)
- hypotenuse (measured)
- cathetus/vertical distance (calculated)
- cathetus/horizontal distance (calculated)
Short press Exit the mode.
16
Vector 100 CONDTROL
User manual
will appear on display. Laser beam
LASER DISTANCE METER
EN
Point to point measurement
Short press Enter menu of functions.
Short press / Select function "Point to point"
Symbol
Short press
Short press Make the first measurement (distance to point A)
Make the second measurement (distance to
Short press
point B)
– distance to point A (measured)
– distance to point B (measured)
– distance between points A and B (calculated)
Short press Exit the mode.
Vector 100 CONDTROL
User manual
will appear on display.
Laser beam is on.
17
