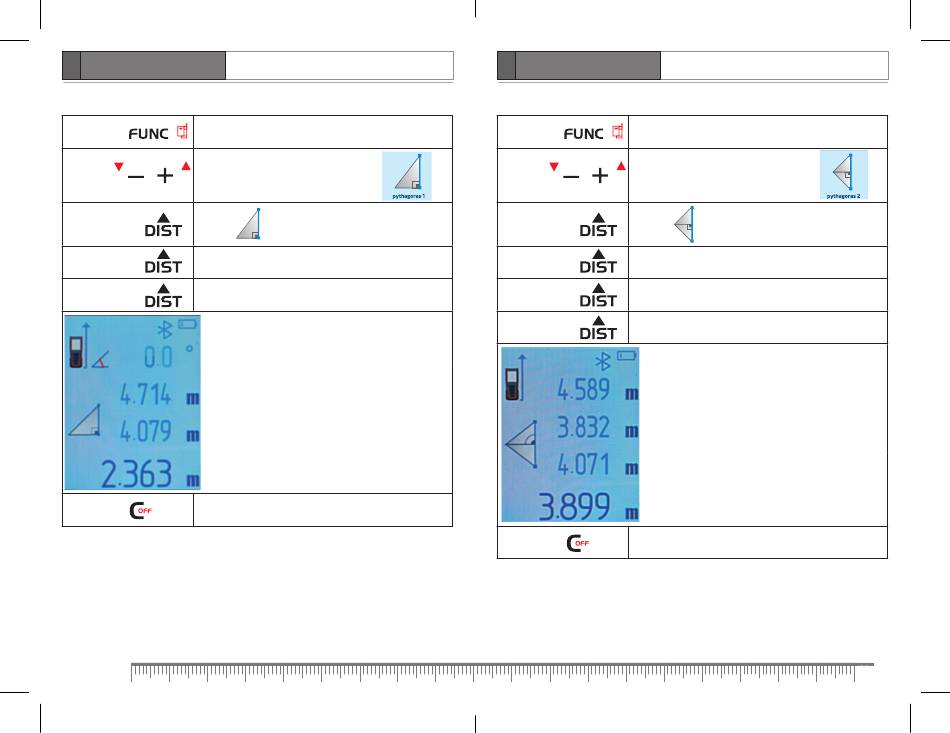

Calculation of distance by 2 additional measurements (Pythagoras' theorem)
Short press Enter menu of functions.
Select function "Calculation of distance
Short press /
by 2 additional measurements"
Symbol
Short press
Short press Make the first measurement (hypotenuse).
Short press Make the second measurement (cathetus 1)
- hypotenuse (measured)
- cathetus 1 (measured)
- cathetus 2 (calculated)
Short press Exit the mode.
18
Vector 100 CONDTROL
User manual
will appear on display.
Laser beam is on.
LASER DISTANCE METER
EN
Calculation of distance by 3 additional measurements (sum of cathetuses)
Short press Enter menu of functions.
Select function "Calculation of distance
Short press / by 3 additional measurements
(sum of cathetuses)"
Short press Symbol
Short press Make the first measurement (hypotenuse 1).
Short press Make the second measurement (cathetus).
Short press Make the 3rd measurement (hypotenuse 2).
– hypotenuse 1 (measured)
– cathetus (measured)
– hypotenuse 2 (measured)
– cathetus (calculated)
Short press Exit the mode.
