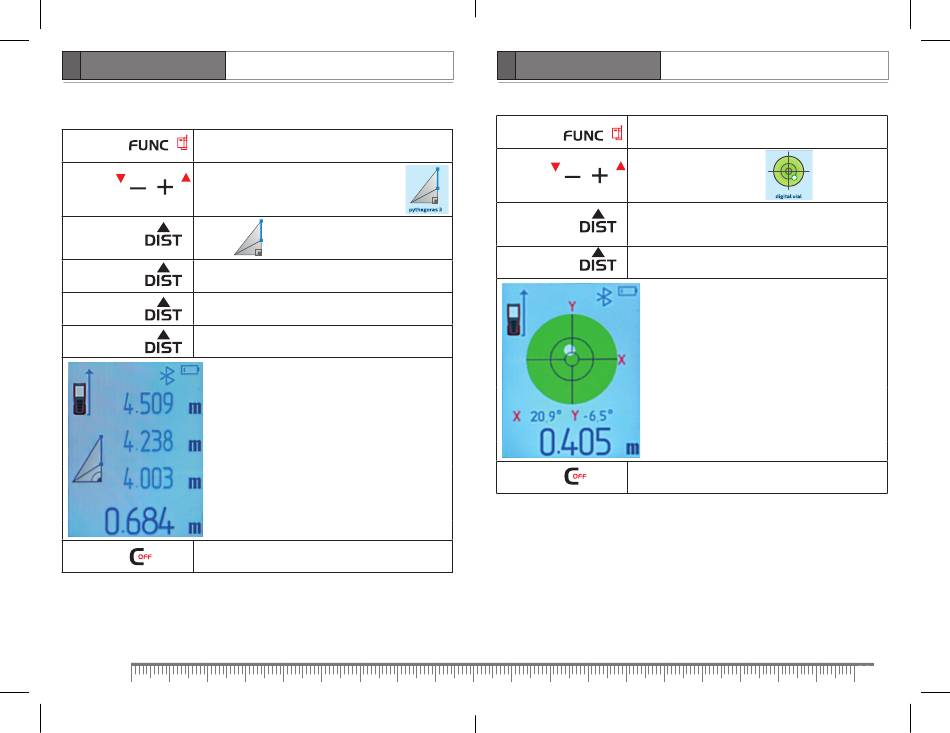

CONDTROL Vector 100 User Manual page 11

LASER DISTANCE METER
EN
Calculation of distance by 3 additional measurements
(subtraction of 2 cathetuses)
Short press Enter menu of functions.
Select function "Calculation of distance by 3
Short press / additional measurements (subtraction of 2
cathetuses)"
Symbol
Short press
Short press Make the first measurement (hypotenuse 1).
Short press Make the second measurement (hypotenuse 2).
Short press Make the 3rd measurement (cathetus).
– hypotenuse 1 (measured)
– hypotenuse 2 (measured)
– cathetus (measured)
– cathetus (calculated)
Short press Exit the mode.
20
Vector 100 CONDTROL
User manual
will appear on display.
Laser beam is on.
LASER DISTANCE METER
EN
Digital vial
Short press Enter menu of functions.
Short press / Select function "Digital vial"
Enter digital vial mode. Aim the product in appropriate
Short press
direction using angle readings shown on the display.
Short press Make a measurement.
- measuring result
Short press Exit the mode.
Vector 100 CONDTROL
User manual
21
