PEERLESS SR1G Installation And Assembly Manual

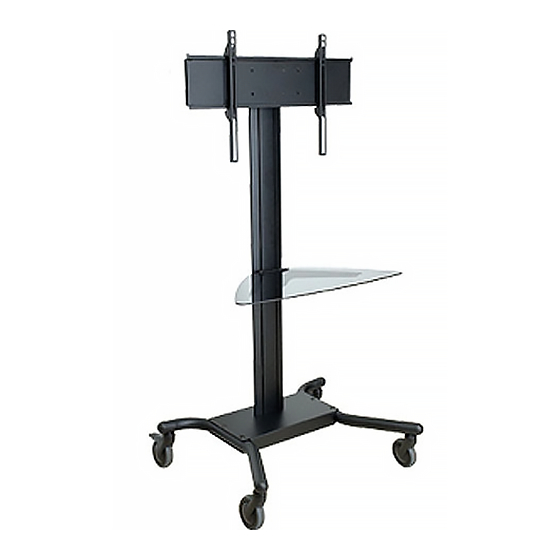

32" - 60" flat panel tv cart
Hide thumbs Also See for SR1G:

Advertisement

Quick Links

Download this manual
Installation and Assembly: 32" - 60" Flat Panel TV Cart
Models: SR1G, SR560G
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf
ISSUED: 01-10-07 SHEET #: 009-9033-2 03-12-07

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEERLESS SR1G

Summary of Contents for PEERLESS SR1G

  • Page 1 Installation and Assembly: 32" - 60" Flat Panel TV Cart Models: SR1G, SR560G This product is UL Listed. It must be installed by a qualified professional installer. Max UL Load Capacity: 150 lb (68 kg) screen 50 lb (22.7 kg) per shelf 3215 W.
  • Page 2 Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.

  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List SR1G SR560G Black Black Description Qty. Part Number Part Number screen mount bracket 201-1156 201-1156 hook plate 201-1157...
  • Page 4 Some parts may appear slightly different than illustrated. 4 of 14 ISSUED: 01-10-07 SHEET #: 009-9033-2 03-12-07...
  • Page 5 Insert four end caps (Z) into ends of left and right support legs (T & S) as shown. Guide left leg (S) towards base housing (E) as seen in fig.2.1. Then line up holes in base housing with holes in left leg. Fasten base housing to left leg using two 3/8-16 x 1.5"...
  • Page 6 Insert and screw casters (V & U) into holes of support legs (S & T). Attach casters with brake (V) to the back of left and right support legs (S & T). Attach casters without brake (V) to front of support legs (S &...
  • Page 7 Loosely attach four 1/4-20 x 12 mm screws (L), washers (N), and 1/4-20 nuts (M) to shelf support (C). Slide shelf support onto upright (H) so that 1/4-20 nuts slide into slots of upright (H) as shown in figure 6 and detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (L) using 4 mm allen wrench (Q).
  • Page 8 Attaching Glass Shelf Insert six button bumpers (K) into shelf support (C). Place glass shelf (I) on shelf support. Insert three button bumpers (K) into bottom of shelf clamp bracket (D). Attach shelf clamp bracket (D) to shelf support (C) using two 1/4-20 x 20 mm screws (AA) and two 1/4-20 nuts (M).
  • Page 9 Loosely attach six 1/4-20 x 12 mm screws (L), Slide screen mount bracket (A) onto upright (H) so washers (N), and 1/4-20 nuts (M) to screen mount that 1/4-20 nuts (M) slide into slots of upright (H) as bracket (A). shown in figure 9 and detail 2.
  • Page 10 Attaching Screen Using Universal Plate with Adapter Brackets For attaching screens with VESA 100 hole pattern, skip to page 13. Attach universal plate (F) to hook plate (B) using four Attach hook plate (B) to screen mount bracket (A). M10 x 15 mm socket screws (QQ). Tighten screws using 6 mm allen wrench (R).
  • Page 11 Installing Adapter Brackets Refer to Screen Compatibility Chart to determine the proper fasteners to use. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached. Place adapter brackets (G) on back of screen, align to holes, and center on back of screen as shown in figure 15.1.
  • Page 12 Mounting and Removing Flat Panel Screen WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television. Hook adapter brackets (G) onto universal plate (F), then slowly swing screen in as shown. Turn screws (G) clockwise at least six times to prevent screen from being removed as shown in detail 4.
  • Page 13 Attaching Screen with VESA 100 Mounting Pattern WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and hook plate is still not tightly secured, damage may occur to screen or product may fail. Choose hole pattern as shown in figure 17.

  • Page 14: Cable Management

    14 of 14 ISSUED: 01-10-07 SHEET #: 009-9033-2 03-12-07 © 2007 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

Sr560g
