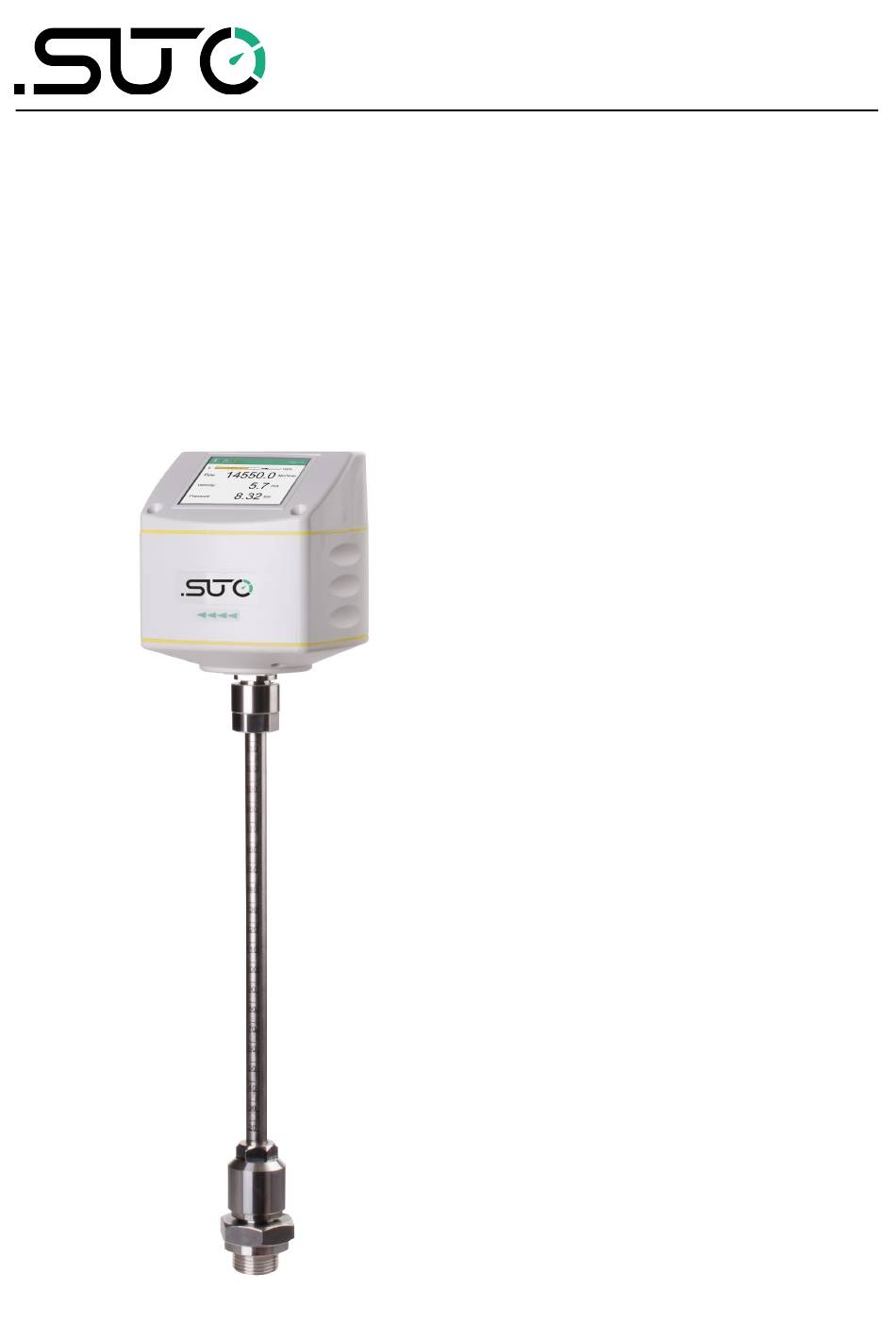

- Page 1 English Instruction and operation manual S 430 Pitot tube flow sensor...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
9.2 Pulse output.................21 9.3 Pulse Connection Diagram............23 9.4 Modbus output ..............23 9.5 M-Bus output ..............24 10. Sensor display (option).............25 10.1 Starting process..............25 10.2 Configuration using the display..........26 11. Calibration................27 12. Maintenance................27 13. Disposal or waste..............27 14. Warranty................27 Appendix..................29 S 430... - Page 4 • Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S 430...
- Page 5 • Always observe the direction of the flow when installing the sensor. The direction is indicated on the housing. • Do not exceed the maximum operation temperature at the sensors tip. • Avoid condensation on the sensor element as this will affect the accuracy enormously. S 430...
-
Page 6: Application
, pressure in bar, temperature in °C. Other units can be programmed by the optional display or the service kit. The S 430 flow sensor is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 7: Features
• Tube diameters from 1” up to 10”, larger diameters on request. • No mechanical wear parts. • All parts which are in contact with the medium are made of stainless steel. • Optional display directly on the sensor, showing velocity, volume flow and consumption, temperature, pressure. S 430... -
Page 8: Technical Data
Protection class IP65 Dimensions See dimensional drawing on chapter 5 Display (optional) 2.4” colour graphics display with keypad (optional) Tube diameter 1” to 10” (bigger diameters on request) Screwing thread G1/2” (ISO 228/1) Weight 1.10 kg S 430... -
Page 9: Electrical Data
Ambient/process humidity <90% Process pressure at 0.6 MPa Working range: Flow range for air at 6 barg, 50°C and 90% humidity. For other gas and condition please see appendix or download flow range software from the homepage of the manufacturer. S 430... - Page 10 4. Technical Data Cut-off flow of S 430 is pressure depending. Following chart shows the relationship at tube of 100 mm, 50°C and 90% humidity. For other tube and conditions please download “Flow range” software from the homepage of the manufacturer.
- Page 11 4. Technical Data S 430...
-
Page 12: Dimensional Drawing
5. Dimensional drawing 5. Dimensional drawing S 430... -
Page 13: Determination Of The Installation Point
Obstructions can cause counter-flow turbulence as well as turbulence in the direction of the flow. • The sensor is for indoor use only! At an outdoor installation, the sensor must be protected from solar radiation and rain. S 430... - Page 14 Installation in a vertical pipe is possible, required the flow is from bottom up and the sensor has at least a 10 degree angle (recommended is 20 degree). ATTENTION: Do not install in vertical pipes if the flow is from top to down. S 430...
-
Page 15: Inlet And Outlet Section
L2 : Length of outlet section D : Diameter of tube Please keep at least 8 x D upstream and 3 x D downstream to ensure an significant influence to the measuerement due to up and downstreampipe bends. S 430... -
Page 16: Sensor Installation
8. Sensor Installation 8. Sensor Installation Before installing the sensor, please make sure that all components listed below are included in your package. Qty Description Item No. S 430 Sensor S695 4300 Sealing ring No P/N Alignment key No P/N... - Page 17 This is the default and recommended installation type Insertion depth= x+ y ; OD=Outer diameter of pipe Example for a 2” pipe and a 87 mm ball valve: y=87 mm ; OD=60.3 mm 60.3 mm =30.15 mm Insertion depth=30.15 mm+87 mm=117.15 mm S 430...
-
Page 18: Ball Valve
Insertion depth= x+ y+100 x is the wall thickness of pipes Example for a 12” pipe, the wall thickness of pipes 9 mm and a 87 mm ball valve: x=9 mm ; y=87 mm Insertion depth=9 mm+87 mm+100 mm=196 mm S 430... - Page 19 10. Tighten clamp sleeve with clamping torque 20...30 Nm. 11. During the final check control the installation depth again because sometimes the shaft is moved from its original position due the compressed air. Maximum angle deviation of a proper installation: S 430...
- Page 20 2. Release the clamp sleeve at the connection thread. 3. Pull out the shaft slowly until the value “10” can be read at the scale. 4. Close the ball valve. 5. Release the connection thread and unscrew the flow sensor. S 430...
-
Page 21: Electrical Connection
8. Sensor Installation Zero flow calibration ： 8.3 Electrical connection The flow sensor is equipped with two connector plugs “A” and “B”. The cables are connected to the sensor through the M12 connector. Connector plug A Connector plug B S 430... - Page 22 Negative 4... 20 mA signal SW: Isolated pulse switch input/output D+: Modbus data + Modbus data - M-Bus data N/A: Not applicable ATTENTION! Do not screw the M12 plug using force. Otherwise, it may damage the connecting pins. S 430...
-
Page 23: Sensor Signal Outputs
The sensor will send out one pulse per consumption unit. This pulse output can be connected to an external pulse counter to count the total consumption. The number of m per second are summed up and indicated after one second. Pulse length depends on consumption rate. S 430... - Page 24 In case the flow rate is higher than 50 m /s, l/s of ft /s, the S 430 can not output the pulses with default settings (one pulse per consumption unit). For this the pulse can be set by our service software or a connected display to 1 pulse per 10 consumption units or 1 pulse per 100 consumption units.
-
Page 25: Pulse Connection Diagram
Variant 2: 9.4 Modbus output Mode : RTU Baud rate : 19200 Device address Framing / parity / : 8, E, 1 stop bit Response time : 1 second Response delay : 0 ms Inter-frame spacing : 7 char S 430... -
Page 26: M-Bus Output
Fabrication No. Baud rate / parity : 2400 bps / even Device address : primary address: 1; secondary address: serial number Response delay / : 7ms / 500ms timeout Channel Data information Field Unit Range coding (DIF) Counter Flow S 430... -
Page 27: Sensor Display (Option)
Now the display goes to the standard mode, showing the online values, flow, velocity and pressure, alternately. Home page: • Status bar • Moving bar to indicate flow and cut-off value • Measuring values S 430... -
Page 28: Configuration Using The Display
For this please observe the following steps: 1. Please press “Enter” (>3s) key to check and change settings (unlock code:12). 2. Use the “Up” and “Down” key on the keyboard to choose the setting which should be changed. S 430... -
Page 29: Calibration
12. Maintenance To clean the sensor it is recommended to use distilled water or isopropyl alcohol only. If the contamination can not be removed the sensor has to be inspected and maintained by the manufacturer. S 430... -
Page 30: Disposal Or Waste
14. Warranty SUTO provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. -
Page 31: Appendix
0.840 700.00 232754.32 3879.24 3879238.6 64653.98 136994.1 276458.4 4607.64 76.79 0.840 800.00 304005.64 5066.76 5066760.6 84446.01 178931.0 361088.5 6018.14 100.30 0.840 900.00 384757.14 6412.62 6412618.9 106876.98 226459.6 457002.6 7616.71 126.95 0.840 1000.00 475008.81 7916.81 7916813.5 131946.89 279579.7 564200.8 9403.35 156.72 S 430... - Page 32 Appendix SUTO iTEC GmbH SUTO iTEC Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
