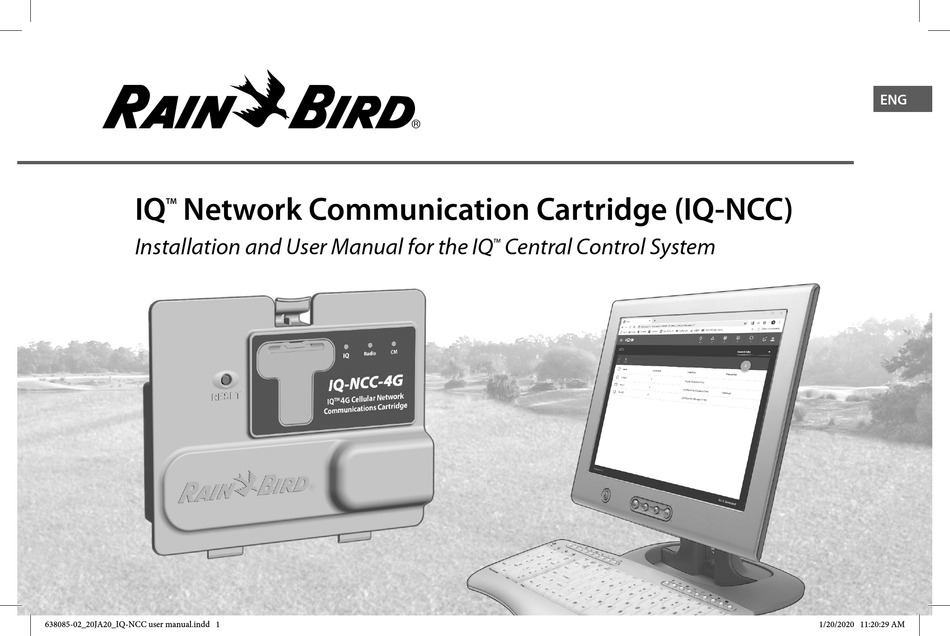

- Page 1 Rain+Birdt Network Communication Cartridge (IQ-NCC) Installation and User Manual for the IQ Central Control System 638085-02_20JA20_IQ-NCC user manual.indd 1 638085-02_20JA20_IQ-NCC user manual.indd 1 1/20/2020 11:20:29 AM 1/20/2020 11:20:29 AM...
- Page 2 Indicates a hazardous situation that, if not avoided, could result in death or serious injury. iqcloudsupport@rainbird.com CAUTION Or for users with a Rain Bird Global Support (GSP) Plan, contact: Indicates a hazardous situation that, if not avoided, could U.S. and Canada International result in minor or moderate injury.
-
Page 3: Table Of Contents
Contents Introduction ..........5 Box Contents ............10 Figure 3 - Box Contents ..........11 Welcome to Rain Bird ........... 5 Cartridge Installation ........12 About This Manual ..............5 Access Controller Cabinet ..........12 ESP-LX Series Controllers ............ 5 Remove the Communication Cable Knock-out ..13 Central Control System ........ - Page 4 Status Menu ............33 Direct Satellite Controllers ..........33 Ethernet ................33 4G Cellular ................34 Server Satellite Controllers ..........35 Ethernet ................35 4G .....................36 Client Satellite Controllers ..........37 IQNet Alarms Menu ..........38 Appendix ............. 40 Connection Modules .......... 40 Connection Module Options ..........40 Base Module ...............40 Flow Smart Module ............40 IQ Connection Module ..........41...
-
Page 5: Introduction
IQ Central Control System. For more than seven decades, ESP-LX Series Controllers from a computer, tablet, or smart Rain Bird has led the irrigation industry in meeting all of phone. your water management needs by providing the highest IQ™... -
Page 6: Types Of Iq
(IQNCCEN) Direct Satellites communicate with the IQ-Cloud or IQ Cen- • 4G Cellular Network Communication Cartridge tral Computer through IQ-NCC Cellular or Ethernet con- (IQ4G-USA and IQ4G) nections. Direct Satellites do not communicate with other • RS-232 Network Communication Cartridge Satellites. -
Page 7: Cartridge
Figure 1 - IQ™ Network Communication Cartridge (IQ-NCC-4G shown) IQ Network Communication Cartridge 638085-02_20JA20_IQ-NCC user manual.indd 7 638085-02_20JA20_IQ-NCC user manual.indd 7 1/20/2020 11:20:30 AM 1/20/2020 11:20:30 AM... -
Page 8: Installation
Network Communication Radio Modem Cable Cartridge Components A radio modem can also be connected to the IQ-NCC Car- Network Communication Cartridge tridge using the Y Cable to provide wireless radio commu- Three types of IQ-NCC cartridges are available to communi- nication between Server and Client Satellites on the IQNet. -
Page 9: Figure 2 - Installation Overview
ESP-LX Controller Front Panel IQ Port Cable (or Antenna) IQ Network Communication Ground Wire a. a. Cartridge (IQNCCEN shown) IQNet PE Communication Connection Module (CM) Cable Cable to other Satellites (CM Y-Cable shown) Connection Module a. To IQNet Radio Modem (FSCM-LXME shown) Figure 2 - Installation Overview b. -
Page 10: Box Contents
Box Contents The following components are included with each IQ-NCC and are required for installation. NOTE: If anything is missing, please contact your distribu- tor before proceeding. 1. IQ Network Communication Cartridge (ONE of the following): • IQNCCEN Ethernet Cartridge •... -
Page 11: Figure 3 - Box Contents
Connection Module (CM) Cables IQ Network CM Y-Cable (black) Communication Connects IQ-NCC Cartridge Cartridge (IQ-NCC) to IQ Radio. IQ-NCCNMC Null- Modem (Serial) Cable Used with Y-Cable, NCC IQ Port Cable Options Configurator Software, and computer to config- Ethernet Cable ure IQNCCEN Ethernet... -
Page 12: Cartridge Installation
Cartridge Installation Pull the handle towards you and swing it to the left. This section provides steps required to install an IQ-NCC and connect the required cables. The steps apply to all types of cartridges with any differences explained separately. -
Page 13: Remove The Communication Cable Knock-Out
Remove the Communication Cable Knock-out Locate the IQ Port communication cable knock-out on the bottom left of the controller case, next to the transformer junction box. If a CM connection module will be installed for IQNet communication, locate the rear knock-out for the IQNet communication cable. -
Page 14: Install An External Antenna For Lxmm
Install an External Antenna for LXMM Using a screwdriver or other pointed tool; center the point of tool on the “dimple” in the center of the knock- If the LXMM Metal Case is used along with the a IQ4G out, then punch through and remove the antenna cartridge, then an external antenna must be installed in knock-out hole located on the top right of the ESP-LX place of the internal antenna provided. - Page 15 Follow the instructions which came with the LXMM to WARNING install the ESP-LX Series controller into the metal case. To comply with FCC RF safety exposure limits, the Route the antenna cable through the knockouts antenna used for this transmitter must be installed to on top of the metal case and the controller.
-
Page 16: Install The Cartridge
Install the Cartridge • If the satellite is a Server or Client that will use a radio modem for wireless communications with other satel- Press down on the top-latch of the cartridge bay cover lites on the IQNet, then install the Y-cable. The Y-cable and remove it from the back of the front panel. -
Page 17: Figure 4 - Installation/ Cable Options
IQ Port IQ Port Cables RJ-45 Ethernet Cable (green) IQ Network Communication 4G Cellular Internal Antenna (gold) Cartridge (IQ-NCC) RS-232 External Modem Cable (beige) Align Arrows on Cable and Housing for Correct Fitting Figure 4 - Installation/ Cable Options IQ Network Communication Cartridge 638085-02_20JA20_IQ-NCC user manual.indd 17... - Page 18 Cellular telemetry service account that is not provided into the hinge openings at the bottom of the cartridge and must be purchased separately. See the SIM Card bay. Then gently swing the IQ-NCC up into place, Installation section in the Appendix for details. snapping the top latch.
-
Page 19: Complete Cable Connections
Complete Cable Connections Route all cables from the cartridge through the channel in back of the front panel. IQ Network Communication Cartridge 638085-02_20JA20_IQ-NCC user manual.indd 19 638085-02_20JA20_IQ-NCC user manual.indd 19 1/20/2020 11:20:31 AM 1/20/2020 11:20:31 AM... - Page 20 For IQNCCEN Ethernet Cartridges, route the supplied If required, install the type of connection module in RJ-45 Ethernet cable through the knockout in the Slot 0 that is necessary for the intended configuration. lower left of the unit. NOTE: If the satellite is being configured as a server or a client with a wired connection (IQNet PE Com- munication Cable) to another satellite, an IQ-FSCM- LXME (for the ESP-LXD, ESP-LXIVM or ESP-LXIVM Pro)
- Page 21 Secure all cables inside the controller and close the front panel. NOTICE Ensure that all installed cables inside the satellite do not contact the transformer directly, as heat from the transformer may cause damage to a cable. Connect the metal shield of the PE-Cable to the orange ground terminal (at one end of the PE-Cable only).
-
Page 22: Internal Antenna Installation
Internal Antenna Installation Top Inside Of Cabinet IQ4G-USA and IQ4G Cellular Cartridges use the supplied internal antenna (if not using a metal enclosure). To install the internal antenna(s): Clean surface to remove any dust or dirt. Cellular Antenna Remove the adhesive backing cover strip from the 4G Cellular antenna. - Page 23 This page intentionally left blank. 638085-02_20JA20_IQ-NCC user manual.indd 23 638085-02_20JA20_IQ-NCC user manual.indd 23 1/20/2020 11:20:31 AM 1/20/2020 11:20:31 AM...
-
Page 24: Iq-Ncc Configuration
Direct This section provides the steps arrows to select Setup Wizard; Satellites always have an address required to configure an IQ-NCC for press Next. of 001; press Next. communication with the IQ computer. Follow the same steps for each type of IQ-NCC, any differences are addressed in the specific step. - Page 25 NOTE: The RS Cartridge has three options, External Modem and IQ Direct Connect, and IQSSRADIO. All other cartridges have only one option, either 4G/GPRS Cellular or Ethernet modem The following message will be displayed. Press Dismiss to exit screen. The Satellite is now ready to be con- figured by the NCC Configurator software (only required for IQNCC- EN Ethernet Cartridge configura-...
-
Page 26: Server Satellite Setup Wizard
Server Satellite Setup Wizard The IQ Settings main menu is The Setup – Satellite Address displayed. Use the UP or DOWN screen is displayed. Server Follow these steps to configure a arrows to select Setup Wizard; Satellites always have an address Server Satellite: press Next. - Page 27 NOTE: Cartridges have only NOTE: If the Y-cable is installed NOTE: If an IQ-FSCM-LXME or one option, either 4G/GPRS Cel- for connection to a radio an IQ-CM-LXD connection mod- lular, or Ethernet, depending on modem for wireless commu- ule is installed for wired com- the cartridge that is installed.
-
Page 28: Client Satellite Setup Wizard
Client Satellite Setup Wizard The IQ Settings main menu is The Setup – Satellite Address displayed. Use the UP or DOWN screen is displayed. Use + or - Follow these steps to configure a arrows to select Setup Wizard; to select a unique address from controller as a Client Satellite: press Next. -
Page 29: Ncc Configurator Software
IQNCCEN Ethernet The Setup – Satellite CM Port The Setup – CM Port Termination Cartridge. Consult the IQ-NCC Con- screen is displayed. Use + or - screen is displayed. Use + or - to figurator Instructions for Help with... -
Page 30: Operation
Turn the ESP-LX Controller dial to IQ Settings and select Sta- IQ Network Communication tus for text version of the communication ports status. Cartridge (IQ-NCC-EN shown) IQ Network Communication Cartridge 638085-02_20JA20_IQ-NCC user manual.indd 30 638085-02_20JA20_IQ-NCC user manual.indd 30... -
Page 31: Table 1 - Iq Port Led Indicators
LED State IQNCCEN Status IQ4G Status IQNCCRS Status Dark Port Disabled Port Disabled Port Disabled Solid Red Connected to active No SIM card installed network (default IP address) Blinking Red No connection to cable/ No RF signal from cell No IQ computer switch tower connection/no radio... -
Page 32: Table 2 - Cm Port Led Indicators
Connection Module Status LED State Radio Modem Status LED State (CM or FSCM) Dark Port disabled (also dark if configured as Client or No Radio Installed option Dark Port disabled (also dark if configured selected in Setup Wizard) as Client or No Module Installed option selected in Setup Wizard) Solid Red Solid Red... -
Page 33: Status Menu
Status Menu Direct Satellite Controllers Ethernet The IQ Settings main menu is The Status Menu is used to display displayed. Use the UP or DOWN To display the status of Direct Satel- the status of each communication arrows to select Status; press lites IQNCCEN cartridge installed: port on the front panel LCD. -
Page 34: 4G Cellular
Direct Satellite Controllers The IQ Settings main menu is The Signal Strength screen is displayed. Use the UP or DOWN displayed. The signal strength 4G Cellular arrows to select Status; press between the satellite and the 4G To display the status of Direct Satel- Next. -
Page 35: Server Satellite Controllers
Server Satellite Controllers The IQ Settings main menu is The IQNet Ping screen is displayed. Use the UP or DOWN displayed. Use the + and - Ethernet arrows to select Status; press buttons to select any Client To display the status of Server Next address. - Page 36 Server Satellite Controllers The IQ Settings main menu is The Signal Strength screen is displayed. Use the UP or DOWN displayed. The signal strength arrows to select Status; press between the satellite and the 4G To display the status of Server Satel- Next.
-
Page 37: Client Satellite Controllers
The IQNet Ping screen is Client Satellite Controllers The IQ Settings main menu is displayed. Use the + and - displayed. Use the UP or DOWN To display the status of Client Satel- buttons to select any Client arrows to select Status; press lites with any cartridge installed: address. -
Page 38: Iqnet Alarms Menu
IQNet Alarms Menu The IQ Settings main menu is If there is a communication displayed. Use the UP or DOWN failure between the Server The IQNet Alarms Menu is used to arrows to select IQNet Alarms; Satellite and Client Satellites, display communication failures... - Page 39 If there is a communication failure between a Client Satellite and the Server Satellite, the IQNet Alarm screen will be displayed on the Client Satellite. Use the UP or DOWN arrows to view other alarms. On either IQNet Alarm screen, press Clear to clear all alarms.
-
Page 40: Appendix
Module used in an ESP-LXME control- There are four different types of ESP-LXME controller. This module can ler can be used with an IQ-NCC when connection modules that may be be used with an IQ-NCC when wired wired communications with other... -
Page 41: Iq Connection Module
IQ Connection Module IQ Flow Smart Connection Module NOTE: See the ESP-LXME Con- troller Manual for instructions If wired communications (IQNet PE If wired communications (IQNet PE on configuring the Flow Smart Communication Cable) is required Communication Cable) is required Module. -
Page 42: Connection Module Installation
Connection Module Installation Orient the connector on the bottom of the IQ-FSCM- LXME or IQ-CM-LXD module with the connection Follow these steps if a connection module is required for socket on the satellite backplane. IQNet wired communications: Carefully fasten the module onto the satellite To remove an existing base module, press in on the backplane, pressing firmly until it snaps into place. - Page 43 Connect the green and yellow ground wire to the grounding post on the left side of the satellite backplane. IQ Network Communication Cartridge 638085-02_20JA20_IQ-NCC user manual.indd 43 638085-02_20JA20_IQ-NCC user manual.indd 43 1/20/2020 11:20:34 AM 1/20/2020 11:20:34 AM...
-
Page 44: Connect Iq-Cm Grounding Wire
Connect IQ-CM Grounding Wire An additional ground wire is required if you’re installing either an IQ-CM-LXD or IQ-CM-LXME connection module. Attach one end only of the PE-Cable metal shield to the orange grounding terminal. Optionally connect a grounding wire to Earth ground (electrical ground rod or ground plate). -
Page 45: Sim Card Installation
SIM Card Installation Orient the SIM card to match the image of the SIM card as displayed molded on the cartridge (with the “cut- The IQ4G-USA version of the 4G Cellular Cartridge includes corner” on top and to left as shown). a SIM card a 1-year of Cellular service. -
Page 46: Regulatory Information
Changes or modifications not expressly approved by If the equipment does cause harmful interference to radio Rain Bird Corporation could void the user’s authority to or television reception, which can be determined by turn- operate the equipment. - Page 47 IMEI The wireless carrier will require the device’s IMEI (Interna- tional Mobile Equipment Identity) number. This IEMI num- ber is printed on the label on the backside of the modem cartridge. 638085-02_20JA20_IQ-NCC user manual.indd 47 638085-02_20JA20_IQ-NCC user manual.indd 47 1/20/2020 11:20:35 AM 1/20/2020 11:20:35 AM...
- Page 48 Tel: (626) 812-3400 Tel: +1 (626) 963-9311 www.rainbird.com 2020 Rain Bird Corporation. All rights reserved. This material may not be published or reproduced without permission. “Rain Bird” and “IQ Central Control System” are registered trademarks of Rain Bird Corporation. P/N: 638085-02 Rev.01/20 638085-02_20JA20_IQ-NCC user manual.indd 1...
