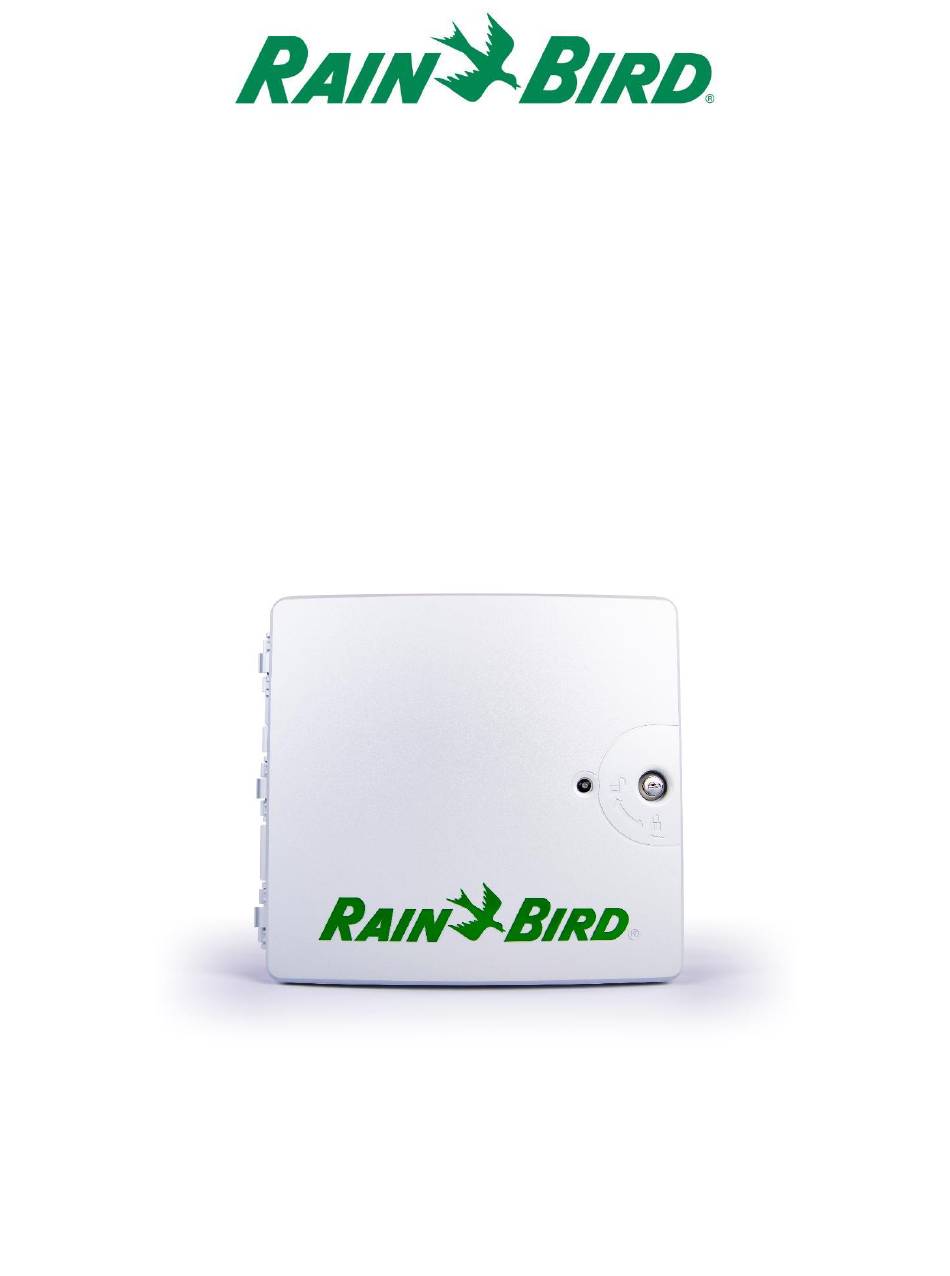

- Page 1 Integrated Control Interface Plus (ICI+) Installation Manual P/N 640338 Rev. 12/19...
-
Page 2: Table Of Contents
Central Grounding Grid ..........................19 LINK Radio Antenna, Coaxial Cable and Grounding Installation Steps ............. 20 Coaxial Cable Connection to ICI+LINK Module ..................24 LINK Radio Installation Detail for Base Antenna, Coaxial Cable & Grounding Wires ........ 25 Antenna Grounding Lug Mounting Detail ....................26 Weatherproofing Coaxial Cable Connections ..................... -
Page 3: Prior To Installation: Verify Communication Protocol
Satellites (Only) The switch must be toggled down, to TWI. The LED light on ICI+ door should be amber. LINK (Radio) Satellites (ICI+LINK) The switch can be TWI or TWX. The LED light should be red. Note: if you install a separate ICI+ Two-Wire driver board, refer to two-wire systems detailed above. -
Page 4: Installing The Ici
Installing the ICI+ This section explains how to mount the ICI+ on the wall and connect the wiring. NOTE: The ICI+ must be installed in compliance with all local electrical codes and must be installed in an environmentally sealed environment. NOTE: The installation of the ICI+ should be done with power supply disconnected. -
Page 5: Installation Checklist
Installation Checklist We recommend you complete the following steps in order to properly install the ICI+. For your convenience, a check-off box has been provided for each step. Verify the contents of the packing box Verify recommended Power Supply Method and Device ... -
Page 6: Verify Contents Of The Packing Box
Verify Contents of the Packing Box Keys ICI+ Rain Bird Manuals: ICI+ Installation Manual & IC System™ Tips for a Successful Installation Mounting Template In some markets the following will also be included: Power supply cord USB cable(s) -
Page 7: Recommended Power Supply Methods And Devices
Recommended Power Supply Methods and Devices Main - Incoming Power Supply Use a dedicated circuit to supply power to the Rain Bird Irrigation Equipment. o This reduces potential electrical noise from air conditioning and other industrial equipment. Install a power surge arrestor such as a Tytewadd Zap Trap or similar surge arrestor to protect the circuit. -
Page 8: Choose Location To Mount The Ici
Choose Location to Mount the ICI+ Choose an indoor location that: Is easily accessible Allows for comfortable viewing Has a flat wall surface Is near a 100V, 120 V or 230/240 V AC dedicated power source, depending on model Is located within 5 feet (1.5 meters) of the Central Control computer –... -
Page 9: Gather Installation Tools
Gather Installation Tools Phillips head screwdriver Slotted thin-blade screwdriver Marking Pencil Metal drill bit(s) Hammer Wire strippers Electric drill (or hammer drill if installing in masonry or concrete) P/N 640338 Rev. 12/19... -
Page 10: Mount Ici
Mount ICI+ 1. Drill or tap a pilot hole on each mark for the mounting holes. 2. Remove the mounting template from the surface prior to installation. If necessary, install drywall anchors. Drive a #8 screw into the top center pilot hole. 3. -
Page 11: Connect Ici+ Ground Wire (Not Included)
Connect ICI+ Ground Wire (Not Included) A #6 (4 mm) gauge ground wire should be installed in a separate conduit between the ICI+ and the ground grid. A conduit no less than 1-½” (40 mm) in diameter shall be installed through the wall to the valve box that contains the first rod in the ground grid. The ground wire may be connected to the ground rod with a four way Cad Weld exothermic weld or acorn nut sharing the ground wires from the FREEDOM antenna, Polyphaser, ground grid, and shielding wire when present. -
Page 12: Connect Field Wiring
Connect Field Wiring Field wires are connected to the Driver Boards using screw terminals located at the bottom of the board. The Integrated Control Interface Plus (ICI+) comes with two ICI+ Driver Boards, for a total of four wire path outputs. Each wire path supports up to 750 ICM equivalent devices. -
Page 13: Usb Connections
USB Connections Connect USB Cables from your computer to the USB Port(s) inside of the ICI+ or ICI+LINK interface according to the type of field hardware. You must have one USB cord per type of field hardware you have installed: IC System™... -
Page 14: Radio (Link) Connections
Radio (LINK) Connections On the lower edge of the IFX-Link Printed Circuit Board Assembly (Figure D) is a 9-Pin DSUB connection block (see Figure E). The radio used for communication with the Satellites connects to the DSUB connector and is used for power and communications to the field. -
Page 15: Connect Source Power
Connect Source Power The ICI+ has an internal transformer that reduces supply voltage (120 VAC, 230/240 VAC and 100 VAC) to 24 VAC - to operate the CPU and Driver Board and power the ICMs on each wire path. NOTE: Each ICI+ is specifically configured based upon the power supply requirements where the system will be installed. -
Page 16: Complete Installation
Complete Installation 1. Double-check that: a. The ICI+ is mounted securely to the wall* *The ICI+ must be installed indoors as it is not rated for outdoor use b. Conduit for field wiring (if used) is attached securely c. The power cord easily reaches the power entry module on the bottom of the ICI+ with no strain on the cord or ICI+ d. -
Page 17: Appendix - Grounding Requirements
Appendix - Grounding Requirements To prevent lightning damage to your equipment, Rain Bird recommends installing a grounding system for the equipment (including interfaces, weather stations, and central control systems). The grounding system discharges lightning-induced electrical current into the earth rather than allow the surge to pass through power wires or field wires to your equipment’s electronic components. -
Page 18: Grounding Requirements For The Ic System
Grounding Requirements for the IC System™ Proper grounding is very important for the IC System. Ensure Rain Bird MSP surge devices are installed on each wire path prior to entering the Integrated Control Interface Plus (ICI+) at the central. Important! -
Page 19: Central Grounding Grid
Central Grounding Grid P/N 640338 Rev. 12/19... -
Page 20: Link Radio Antenna, Coaxial Cable And Grounding Installation Steps
On the building that houses the Central Equipment and the ICI+ LINK, or on a suitable antenna tower, mount a Model ANT-02, ANT-03 or a Yagi Type Base Antenna for the ICI+LINK unit. The installation will require the following equipment for a successful installation: ... - Page 21 Step 12: See Figure K Mount the PolyPhaswer Surge Arrestor on the inside wall, near the ICI+LINK unit and near the floor. Use lag screws or other type fasteners, as may be dictated by the type of wall material, for securing the unit to the wall.
- Page 22 Use a ring type lug, on the end of a #6 gauge or larger bare copper wire, connect it to the Ground Terminal on the PolyPhaser Surge Arrestor. Step 15: See Figure H Route the Ground Wire from the PolyPhaser Surge Arrestor through the exterior wall and connect it to one rod of the 3-rod grounding grid, using a brass ground rod clamp.
- Page 23 Step 18: See Figures G, H, K, L Run a #6 Gauge or larger bare copper wire from the grounding lug of the ICI+LINK out and connect it to one rod of the 3-rod grounding grid, using a brass clamp.
-
Page 24: Coaxial Cable Connection To Ici+Link Module
Coaxial Cable Connection to ICI+LINK Module Figure G ICI+ Installation Manual... -
Page 25: Link Radio Installation Detail For Base Antenna, Coaxial Cable & Grounding Wires
LINK Radio Installation Detail for Base Antenna, Coaxial Cable & Grounding Wires Figure H P/N 640338 Rev. 12/19... -
Page 26: Antenna Grounding Lug Mounting Detail
Antenna Grounding Lug Mounting Detail Figure I ICI+ Installation Manual... -
Page 27: Weatherproofing Coaxial Cable Connections
Weatherproofing Coaxial Cable Connections Figure J P/N 640338 Rev. 12/19... -
Page 28: Mounting And Wiring Of Polyphaser Surge Arrestor
Mounting and Wiring of Polyphaser Surge Arrestor Figure K ICI+ Installation Manual... -
Page 29: Installation Detail For 3-Rod Grounding Gird At Central Location
Installation Detail for 3-Rod Grounding Gird at Central Location Figure L P/N 640338 Rev. 12/19... -
Page 30: Ici+ System Specifications
ICI+ System Specifications INDOOR INSTALLATION ONLY Operating Temperature: 14ºF to 125ºF (-10ºC to 51ºC) Storage Temperature: -40ºF to 150ºF (-40ºC to 65ºC) Operating Relative Humidity: 75% max at 40ºF to 108ºF (4.4ºC to 42ºC) Storage Relative Humidity: 75% max at 40ºF to 108ºF (4.4ºC to 42ºC) Input Voltage Options North America 120VAC +/- 10% @ 60Hz +/- 2Hz...
