- Page 1 TCY-MT, TCY-FT Product Introduction LESS IS MORE! Competitive PI controller series 11/19/2010 Intro TCY-MT, TCY-FT Slide 1...
-

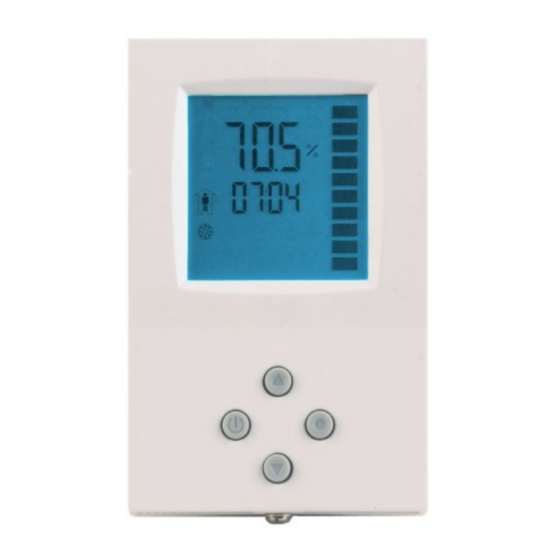

Page 2: Product Pictures
Product Pictures TCY-MT, TCY-FT TCY-MT-U, TCY-FT-U 11/19/2010 Intro TCY-MT, TCY-FT Slide 2... - Page 3 Contents Features Overview Applications Product Range (2-Pipe or 4-Pipe) Plug & Play (Auto Detection of Inputs) Control Modes Output Options: VAV, Manual Override Change of Heat – Cool Mode for -2 Types Auxiliary Features on External Input User Settings Connection Diagrams 11/19/2010 Intro TCY-MT, TCY-FT Slide 3...
- Page 4 Applications Temperature Control for Radiator, Floor heating, Cooling Ceilings Stand alone VAV outlets for pressure dependent control or in conjunction with VAV actuators: pressure independent control Zone control for residential, offices, meeting rooms, hotels or schools. For 0-10V/2-10V or 24VAC 3-point actuators 11/19/2010 Intro TCY-MT, TCY-FT...
-
Page 5: Main Features
Main Features Specific temperature control Less programming, lower cost Auto detection for external control sensor Key card or occupation sensor input. Specific solution for 2-pipe or 4-pipe applications VAV solution for –MT type Plug & Play for standard applications. No need to setup anything. -
Page 6: Product Range
Product Range Housing types: Wall mounted. TCY-MT, TCY-FT : Flush mount ø60mm TCY-MT-U, TCY-FT-U : Flush mount 2” x 4” Configuration: Name System Output Input TCY-MT2(-U) 2-pipe 1 0/2-10VDC 2 NTC / OC TCY-MT4(-U) 4-pipe 2 0/2-10VDC 1 NTC / OC TCY-FT2(-U) 2-pipe 2 24VAC TRIAC... -
Page 7: Plug And Play
Plug & Play Auto detection of inputs The control signal will be taken automatically from the external sensor if a valid input signal is detected No need to program 11/19/2010 Intro TCY-MT, TCY-FT Slide 7... -
Page 8: Control Modes
Control Modes The temperature controller operates a heating or cooling device. Select the control logic with one parameter: CP11 defines the control mode 0 = Cooling mode: order preset with W01 1 = Heating only mode: order preset with W02 2 = 2-pipe mode: (Factory default for -2 products) 3 = 4-pipe mode: (Factory default for -4 products) This option is only available on -4 products. - Page 9 VAV Function on TCY-MT Define individual min and max limits for heating and cooling on the analog outputs This is used to set min and max airflow on linearized VAV actuators. 11/19/2010 Intro TCY-MT, TCY-FT Slide 9...
-
Page 10: Manual Override
Manual Override Activate manual positioning for comissioning Set CP12 to ON to set the outputs into manual mode. On -4 products: To switch between heating and cooling outputs, change heat – cool mode of controller 11/19/2010 Intro TCY-MT, TCY-FT Slide 10... - Page 11 Limitations on outputs TCY-MT 0-10V DC or 2-10VDC 10mA load max TCY-FT 24VAC 50...250mA Running time: 5...255 Seconds 11/19/2010 Intro TCY-MT, TCY-FT Slide 11...
- Page 12 Heat-Cool Change 2-pipe controllers need to change heating and cooling mode. They can be defined with three parameters: These options are available: Change by: CP22 CP23 CP24 Enable Heating Cooling Key pad only Outdoor temperature 25°C 15°C Supply media temperature 15°C 25°C Open contact: Close = heating...
- Page 13 Features on Ext Input All products have at least one ext input. These are the features: CP18 = 0: Auto detection mode. Use as control input, if the controller detects a valid input signal. CP18 = 1: Occupation sensor: switch comfort – standby mode CP18 = 2: Remote enable: Switch Comfort –...
-
Page 14: User Features
User Features The following may be set with user parameters: Access to operation mode change Access to setpoint change Operation state after power failure Enable standby functionality Celsius/Fahrenheit Enable Frost protection 11/19/2010 Intro TCY-MT, TCY-FT Slide 14... - Page 15 Connection TCY-MT 11/19/2010 Intro TCY-MT, TCY-FT Slide 15...
- Page 16 Connection TCY-FT 11/19/2010 Intro TCY-MT, TCY-FT Slide 16...
