Vector TCY3-T1102 Series Manual

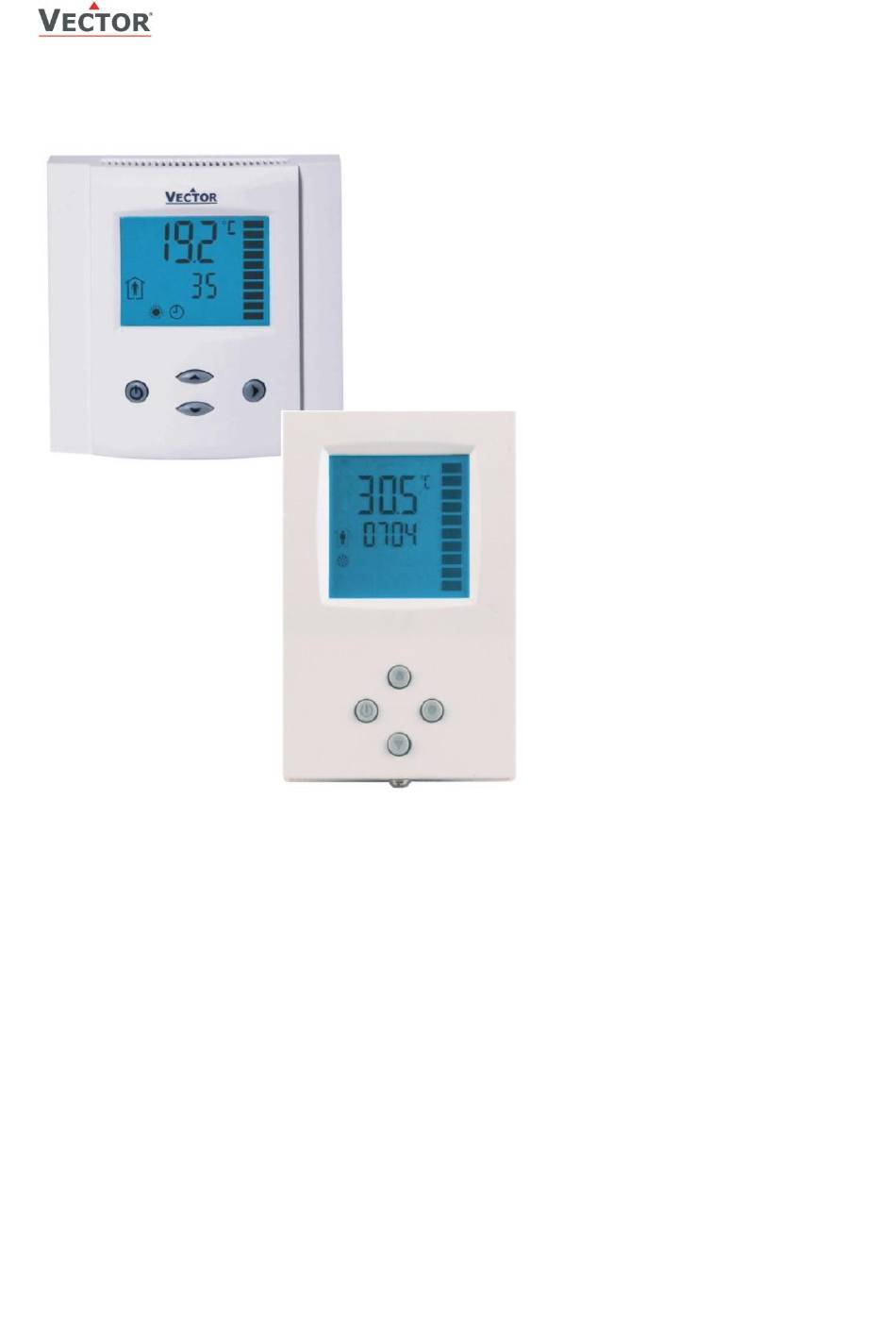

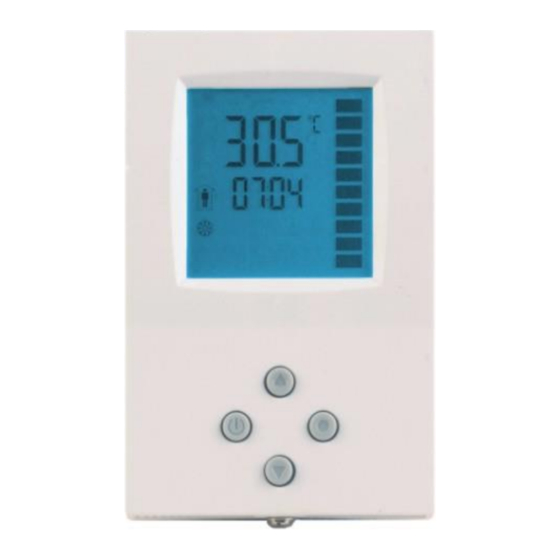

TCY3-T1102 Series Intelligent Compact Controller
Applications
 Air only systems: constant or variable air volume systems for single or dual duct systems with options of:
supply air, extract air cascade control
o
humidity control
o
control for variable speed fans
o
 Air/water systems:
radiator control,
o
chilled ceiling
o
 Water only systems: radiator, floor heating or chilled ceilings
 Analog interface for building automation systems
 Individual room control for hotel rooms, meeting rooms, etc.
General description
The TCY3 is a stand-alone electronic universal controller with two autonomous control loops. Each control loop may use up
to 2 PID sequences. The TCY3-T1102 features 1 NTC temperature sensor and 1 analog input, 1 binary input and 1 analog
output. The outputs need to be assigned to the control sequences by parameters. A detailed configuration is possible by
following a simple setup routine. The TCY3 can be configured using the standard operation terminal. No special tool or
software is required.
Doc: 70-000003 V1.0, 20150710
Subject to alteration
© Vector Controls GmbH, Switzerland
Features
 Temperature control for 2-pipe, 4-pipe HVAC
systems.
 -H version: humidity control with integrated
humidity sensor
 Universal PID and binary control for any
analog input/output signal and range
 4 independent PID sequences
 2 modulating outputs for DC 0...10 V or
0...20 mA actuators with 10 bit resolution.
 1 input for DC 0...5 V, 0...10 V or 0...20 mA
sensors with 10 bit resolution
 1 internal temperature sensor and 1 external
sensor input
 1 binary input for open contacts for auto
changeover, remote control, alarm and more.
 Monitoring of low and high limits on all inputs.
Programmable reaction in case of alarm.
 Feedback functions for internal sensors and set
points.
 Special functions for dehumidifying, set point
shift and VAV control
 Transformation of display value according to
analog sensor range
 Password protected programmable user and
control parameters
 Blue backlight
 Deluxe version only:
Power cap protected real time clock with 24h
o
power backup
16 switching times, grouped in 4 time
o
schedules.
Infrared remote control
o
TCY3-T1102
Page 1
