Viessmann VITOCROSSAL 200 CM2 Service Instructions For Contractors

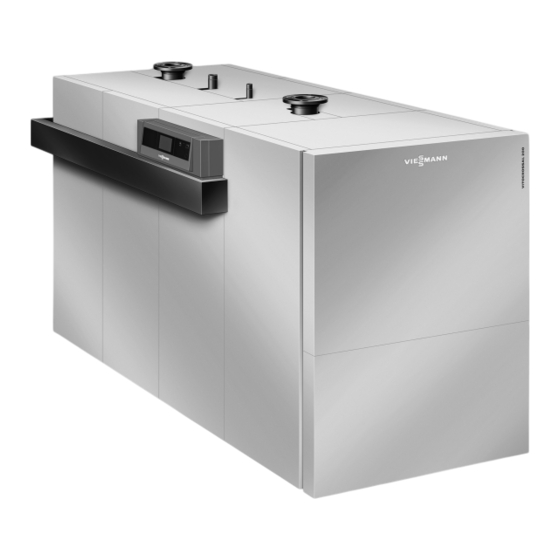

400 to 620 kw gas condensing boiler with matrix cylinder burner, for open flue and room sealed operation, permissible operating pressure 6 bar
Hide thumbs Also See for VITOCROSSAL 200 CM2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Manual, Instruction and Installation Manual
VIESMANN
Service instructions
for contractors
Vitocrossal 200
Type CM2, 400 to 620 kW
Gas condensing boiler with MatriX cylinder burner
For open flue and room sealed operation
Permissible operating pressure 6 bar
VITOCROSSAL 200
Please keep safe.
5833544 GB
6/2018
