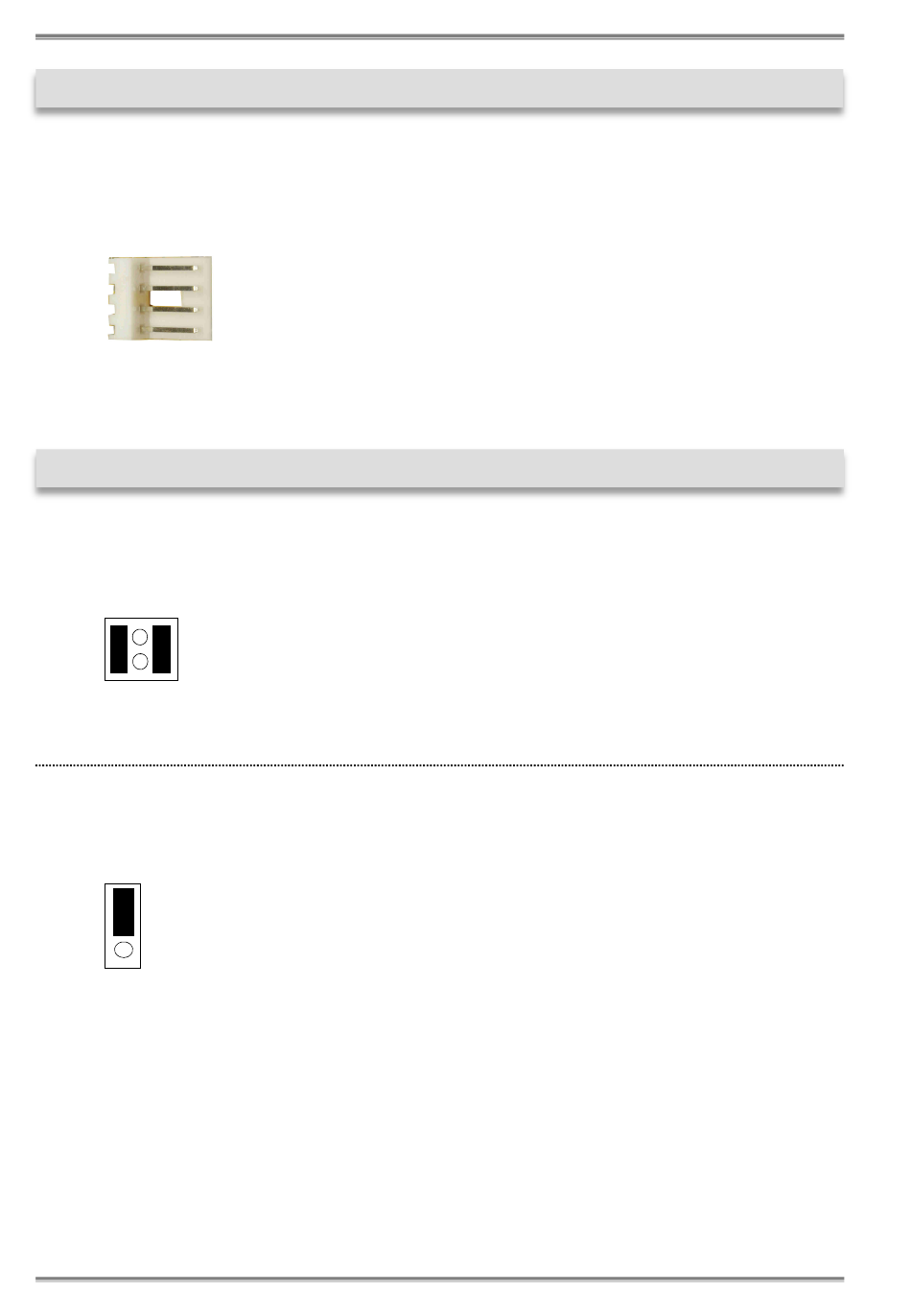

3. Layout & Connections
3.2 Connections
J2:
4. Jumper Settings
JP1:
I12 X12 X5
JP3:
DIS
ENA
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
+5V
For aux power (JP1), J2 must be connected to pc power
GND
supply! If not the card won't work.
GND
+12V
There are two different voltage sources (Mainboard & Power Supply).
(If the jumper JP1 set to X5 / X12 then the power connector J2 must be
connected with the PC power supply)
X5
= 5Volt from Power Supply (Factory Setting)
X12
= 12Volt from Power Supply
I12
= 12Volt from Mainboard (Factory Setting)
DIS
= The function PME is disable. (Factory Setting)
ENA
= The function PME is enable. Now the card can be activate
the computer through the serial ports.
But this should not be adjusted for standard applications.
