Exsys EX-44041-2 Installation Manual

EX- EX EX - - 44041- 44041 44041 - - 2 2 2

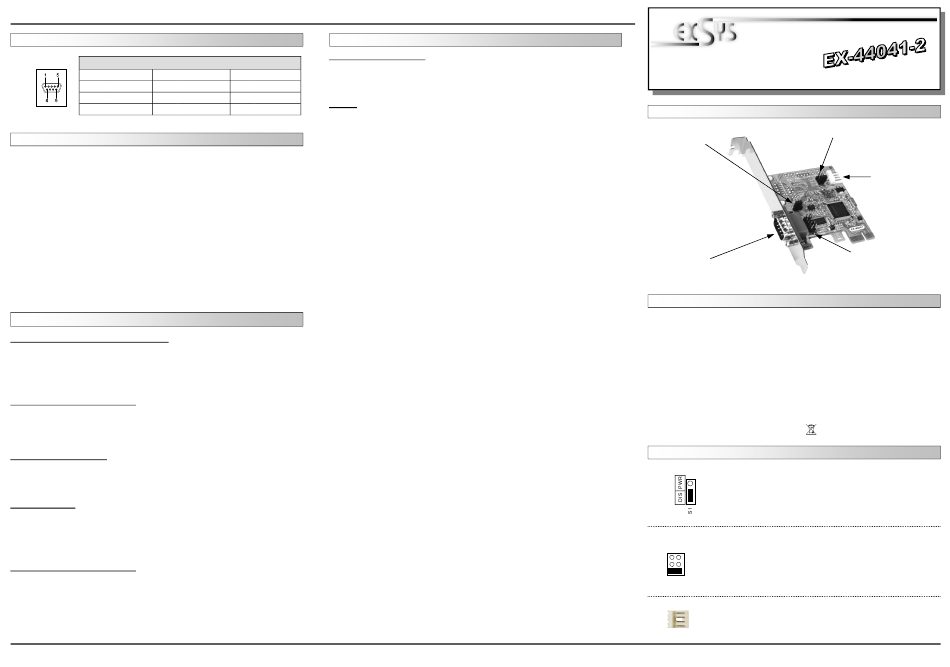

JUMPER SETTING & CONNECTORS
DB 9M:
Serial 9 Pin D-SUB connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because there are large differences between PC's, we can give you only a
general installation guide. Please refer to your computer's reference manual whenever in
doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/ or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 2000/ XP/ 7/ 8/ Server 200x
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS99xx\Win7_8_XP_2K_2003_2008 on the CD and then
select the correct folder for your Bit system. Now start the file "StnSetup.exe" by dou-
ble click on it and follow the setup program to finish installation process.
Attention! Restart your PC in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find a
new „PCI Port" as sample (COM3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 till COM256.
Windows Vista
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS99xx\VISTA on the CD and then select the correct folder
for your Bit system. Now start the file "StnSetup.exe" by double click on it and follow
the setup program to finish installation process.
Attention! Restart your PC in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find a
new „PCI Port" as sample (COM3). If you see this or similar entries the card is installed
correctly.
5
English English English EX EX EX- - - 44041- 44041 44041
DRIVER INSTALLATION
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Signal Pin Signal Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 till COM256.
DTR 7 RTS
8 CTS
LINUX
DSR 9 RI
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual for
standard I/O ports from your Linux version! In some newer versions the card will even
be installed automatically after starting Linux.
- - 2 2 2
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.3 / 01.07.13
AUFBAU
JP1: Power auf 9 Pin
Stecker Ein/Aus
S1: 9 Pin Stecker
Seriell Anschluss
BESCHREIBUNG & TECHNISCHE DATEN

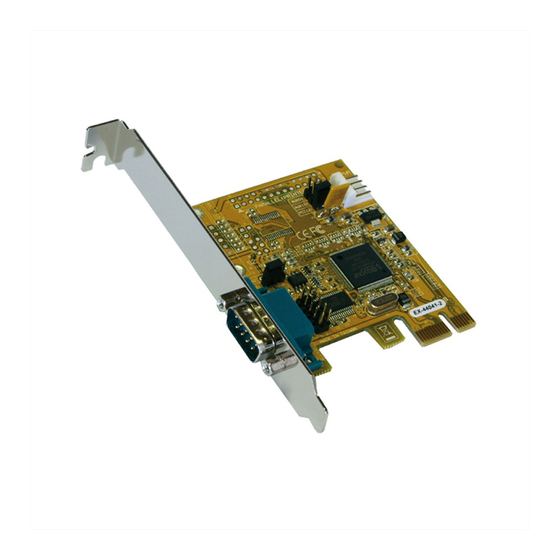

Die EX-44041-2 ist eine PCI-Express serielle RS-232 Karte mit 1 seriellem FIFO
16C550 Port, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten
(z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei
optimal die Leistung des schnellen 16C550 Chipset mit 256byte FIFO Cache. Die Karte
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
115,2KBaud/s! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht mög-
lich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte
vom System (BIOS) und vom Betriebssystem automatisch vorgenommen werden.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows DOS/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Mac/ Linux
Anschlüsse: 1x 9 Pin Seriell D-Sub Stecker
Lieferumfang: EX-44041-2, Treiber CD, Anleitung
Zertifikate: CE / FCC / RoHS / WEEE
CE CE CE
JUMPER EINSTELLUNG & ANSCHLÜSSE
JP1:
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator)
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
Die Einstellung der Spannung nehmen Sie mit dem JP2 vor. Dies sollte
aber bei Standard Anwendungen nicht verstellt werden.
JP2: Wenn Sie den Jumper JP1 für S1 auf PWR gesetzt haben, können Sie
mit dem Jumper JP2 den Spannungswert einstellen. Es gibt 3 verschie-
dene Spannungsquellen.
AUX5V
(Nur in Verbindung mit JP1 auf PWR!!!)
AUX12V
PCI12V AUX 5V = 5Volt vom PC-Netzteil
AUX 12V = 12Volt vom PC-Netzteil
PCI 12V = 12Volt vom Mainboard (STANDARD)
J7:
1 +5V
Für AUX Einstellung (JP2) muss J7 mit PC Netzteil verbunden
2 GND
3 GND werden! Sonst wird die Karte nicht mit Strom versorgt.
4 +12V
JP2: Jumper für die Stromquelle
(Netzteil oder PCI-Express Bus)
J7: Anschluss für Strom
vom PC Netzteil
J1: Interner serieller Anschluss
DE97424562 / WHQL
(Werkseinstellung)
eingestellt werden
