EX-44384

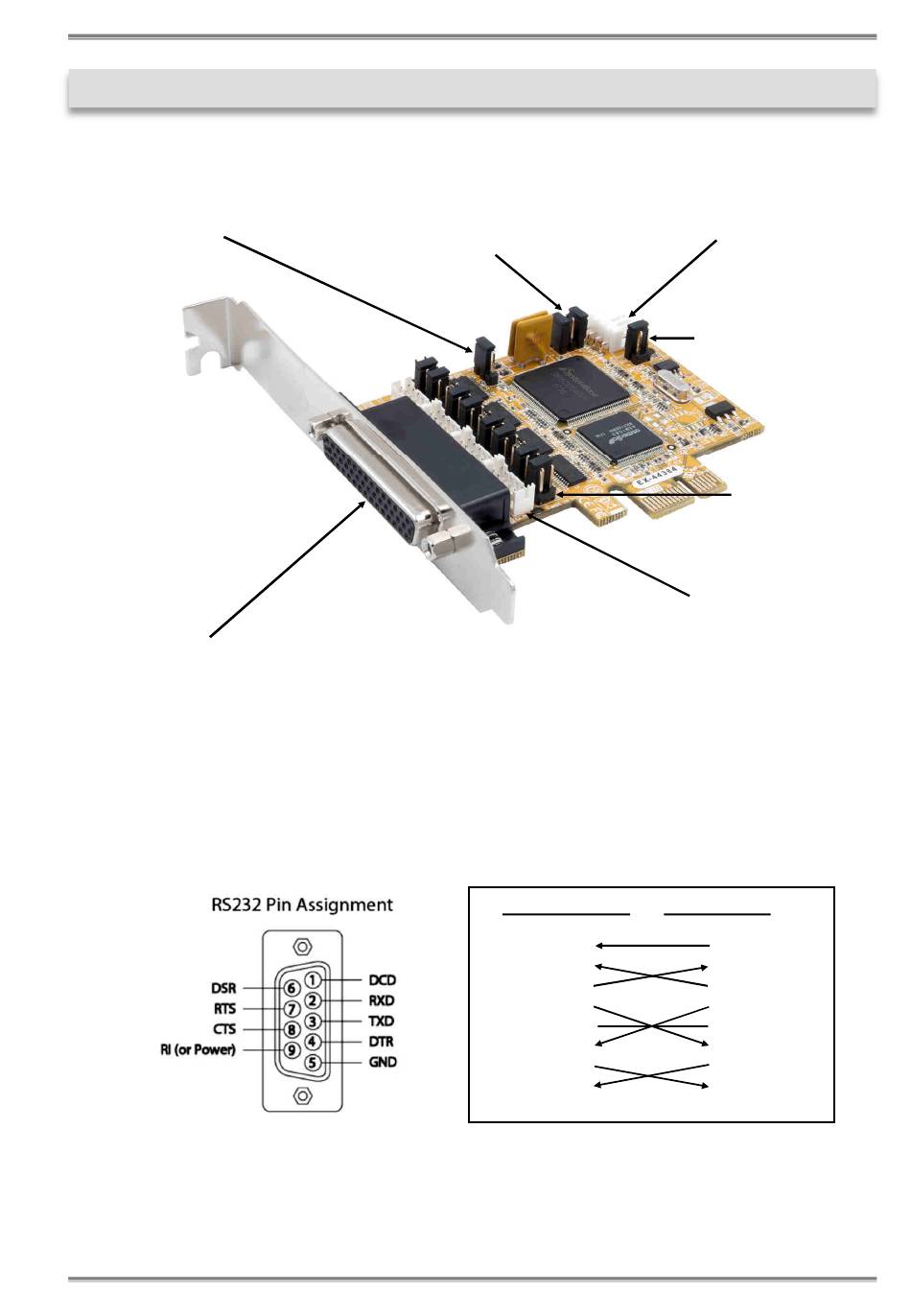

3. Layout & Connections
3.1 Layout
JP3: PME On / Off
S1-S4: 44 pin connector to
4 x 9Pin serial connectors
3.2 Connections
S1-S4:
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
JP1: Select the power over Power
Supply or PCI-Express Bus
DB9 (EX-44384)
11
J2: Connector for PC
JP2: Only for Tests
S1~S4-PH:
Internal serial headers
DB9 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
English
Power Supply
(Do not change!)
S1~S4_PWR:
Power to Pin 1 or
Pin 9 On / Off
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
