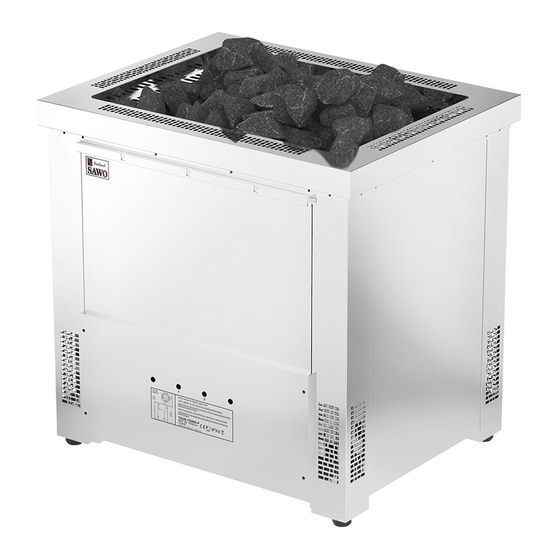

Sawo Taurus Series Manual

Electric sauna heater

Hide thumbs Also See for Taurus Series:

Manual (32 pages)

Table Of Contents

Quick Links

Download this manual See also: Manual

TAU-90NS

TAU-180NS

TAU-90NS-G

TAU-180NS-G

Congratulations on your purchase of SAWO sauna heater.

Please read the manual carefully before using the heater.

ELECTRIC

SAUNA HEATER

TAU-105NS

TAU-180NS-V12

TAU-105NS-G

TAU-180NS-G-V12

TAU-120NS

TAU-150NS

TAU-210NS-V12

TAU-240NS-V12

TAU-120NS-G

TAU-150NS-G

TAU-210NS-G-V12

TAU-240NS-G-V12

Not for use in the USA, Canada and Mexico.

MANUAL

ENGLISH

Table of Contents

Need help?

Do you have a question about the Taurus Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sawo Taurus Series

Page 1 TAU-210NS-V12 TAU-240NS-V12 TAU-90NS-G TAU-105NS-G TAU-120NS-G TAU-150NS-G TAU-180NS-G TAU-180NS-G-V12 TAU-210NS-G-V12 TAU-240NS-G-V12 Congratulations on your purchase of SAWO sauna heater. Please read the manual carefully before using the heater. ELECTRIC SAUNA HEATER Not for use in the USA, Canada and Mexico. ENGLISH...
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions for the User Safety Instructions for the Technician Heater Installation Heater Stones Electrical Diagram Product Illustration Heating of the Sauna Insulation Air Ventilation Technical Data Taurus Heater Spare Parts READ THE MANUAL FOR COVERING THE HEATER ADDITIONAL IMPORTANT CAUSES FIRE HAZARD INSTRUCTIONS...
Page 3 Safety Instructions Please take note of these safety precautions before using the sauna or when installing the heater. For user: This product is not designed to be used by persons (including children) with limited physical or mental abilities and limited experience and knowledge except under close supervision by a responsible person with knowledge and experience or having been advised by such person.
Page 4 For Technicians: Wiring and repairs must be done by a certi ed electrician. Follow the Minimum Safety Distances when mounting the heater (see Fig.2) The electronic and electric system should be mounted in a way so that incoming air will not interfere with it. The control must be mounted outside the sauna cabin.
Page 5: Heater Installation
Heater Installation In most countries there is a law that requires heater to be screwed to the oor as indicated in Fig.1A. Ensure that there is enough space for service and maintenance, see Fig.1B. To avoid accidental contact with heater it is recommended to install Taurus heater guard. For safety and convenience, follow the minimum safety distances as provided in Fig.2.
Page 6: Heater Stones
The required amount of stones is also listed in the manual provided. See Fig.9. NOTE! Never use the heater without stones as it may cause fire. Use only manufacturer recommended SaWo-stones. Using unsuitable stones may lead to heating element damage and will void the warranty.
Page 7 Minimum Safety Distance (mm) Fig. 2B Residential Use TAURUS TAURUS G-Model NOTE: TAU-90NS TAU-90NS-G 1210 1900 Sensor location is always in TAU-105NS TAU-105NS-G Min. the ceiling and must be center TAU-120NS TAU-120NS-G 1000mm part of the heater. TAU-150NS TAU-150NS-G 1410 2100 TAU-180NS TAU-180NS-G...
Page 8: Electrical Diagram
Electrical Diagram Fig. 4 TAURUS TAU-90NS 9.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 9 kW TAU-105NS TAU-120NS 10.5 kW 12.0 kW 400V 3N~ 400V 3N~ 50/60 Hz 50/60 Hz TERMINAL 1 TERMINAL 1 6 kW 6 kW TERMINAL 2 TERMINAL 2 4.5 kW 6 kW...
Page 9 TAU-180NS-V12 18.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 9 kW TERMINAL 2 9 kW TAU-210NS-V12 21.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 9 kW 12 kW...
Page 10 TAU-240NS-V12 24.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 TERMINAL 3 TERMINAL 4 6 kW 6 kW 6 kW 6 kW TAURUS G-Model TAU-90NS-G 9.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 9 kW TAU-105NS-G TAU-120NS-G 10.5 kW 12.0 kW 400V 3N~ 400V 3N~...
Page 11 TAU-150NS-G 15.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 7.5 kW 7.5 kW TAU-180NS-G 18.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 9 kW 9 kW TAU-180NS-G-V12 18.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 9 kW TERMINAL 2 9 kW...
Page 12 TAU-210NS-G-V12 21.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 TERMINAL 3 9 kW 6 kW 6 kW TAU-240NS-G-V12 24.0 kW 400V 3N~ 50/60 Hz TERMINAL 1 TERMINAL 2 TERMINAL 3 TERMINAL 4 6 kW 6 kW 6 kW 6 kW...
Page 13: Product Illustration
Product Illustration Fig. 6 Heating Element For iIlustrative purpose only Fig. 5 Heater Placement TAURUS Stone Container TAU75 TAU100 Heating TAURUS G-Model Element Compartment Lock Heating Element Compartment TAU150 TAU200 NOTE: Removing Heating Elements: Control Cover - Carefully remove the stones. - Remove the stone container.
Page 14: Heating Of The Sauna
Heating of the sauna CAUTION! Smoke and odor formation when heating up for the rst timeWork materials from the manufacturing process will be present on the new heating elements. These evaporate when the sauna heater is heated up for the rst time. This produces smoke and an unpleasant odor.
Page 15: Insulation
Insulation The sauna must have proper insulation on the walls, ceiling and door. One square meter (m²) of uninsulated surface increases the cubic volume by approximately 1,2m³ when determining the power requirement of the heater. Refer to Technical Data. Ensure that moisture proo ng is appropriate for the sauna room. The purpose of this is to prevent spreading of moisture to the other rooms or wall structure.
Page 16: Technical Data
Technical Data Fig. 9 SAUNA SIZE OF HEATER SIZE OF WIRE WEIGHT OF HEATING ELEMENT SUPPLY ROOM HEATER FUSE CONTROL HEATER STONES VOLTAGE MIN MAX LENGTH WIDTH HEIGHT MODEL TYPE (AMP.) (mm) (kg) (kg) NUMBER TAU-90NS 5 x 2.5 separate 6 x 1.5 40-50 3 x 16...
Page 17 Tuarus Heater Spare parts Heating Element Cable Holder Terminal Block (Large) Leveling Bolt Stone Container Cable Box Cover Current Sense PCB TAURUS G-Model TAU75 TAU100 TAURUS TAU150 TAU200 TAURUS TAURUS G-Model 6 Heating Element 12 Heating Element...
Page 18 Subject to change without notice.
