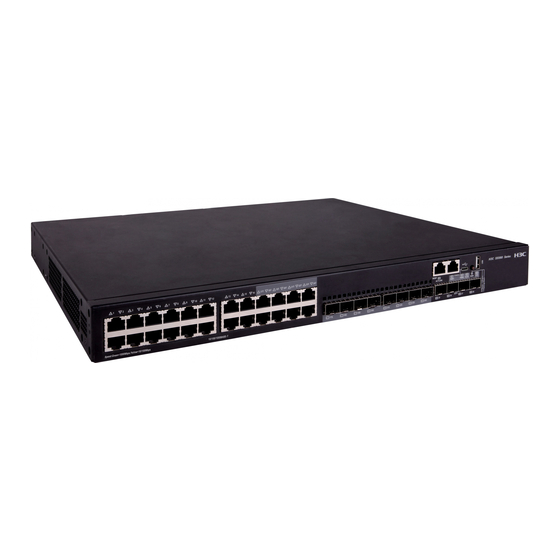

H3C S5560X-EI Switch Series
Installation Guide
New H3C Technologies Co., Ltd.
http://www.h3c.com
Document version: 6W106-20191119

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5560X-EI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for H3C S5560X-EI Series

  • Page 1 H3C S5560X-EI Switch Series Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W106-20191119...
  • Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 3 Preface H3C S5560X-EI Switch Series Installation Guide describes the appearance, installation, power-on, maintenance, and troubleshooting of the H3C S5560X-EI Switch Series. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: •...
  • Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
  • Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
  • Page 6: Table Of Contents

    Contents Preparing for installation ···································································· 1   Safety recommendations ············································································································· 1   Examining the installation site ······································································································· 2   Temperature/humidity ·········································································································· 2   Cleanliness ························································································································ 2   EMI ·································································································································· 3   Laser safety ······················································································································· 3   Installation tools ························································································································· 3  ...
  • Page 7 Verifying the IRF fabric setup ······································································································ 43   Maintenance and troubleshooting ······················································ 44   Fixed power module failure ·································································································· 44   Hot-swappable power module failure ···························································································· 45   Fixed fan tray failure ················································································································· 46   Hot-swappable fan tray failure ···································································································· 46  ...
  • Page 8: Preparing For Installation

    Preparing for installation The H3C S5560X-EI Switch Series includes the following models: Model Product code S5560X-30C-EI LS-5560X-30C-EI LS-5560X-30C-EI-GL S5560X-30C-PWR-EI LS-5560X-30C-PWR-EI LS-5560X-30C-PWR-EI-GL S5560X-54C-EI LS-5560X-54C-EI LS-5560X-54C-EI-GL S5560X-54C-PWR-EI LS-5560X-54C-PWR-EI LS-5560X-54C-PWR-EI-GL S5560X-30F-EI LS-5560X-30F-EI LS-5560X-30F-EI-GL S5560X-54F-EI LS-5560X-54F-EI LS-5560X-54F-EI-GL S5560X-34S-EI LS-5560X-34S-EI LS-5560X-34S-EI-GL S5560X-54S-EI LS-5560X-54S-EI LS-5560X-54S-EI-GL NOTE: The available chassis models and accessories vary by country and region.
  • Page 9: Examining The Installation Site

    • When replacing field replaceable units (FRUs), including expansion cards, power modules, and fan trays, wear an ESD wrist strap to avoid damaging the units. Examining the installation site The S5560X-EI switches must be used indoors. You can mount your switch in a rack or on a workbench, but make sure: •...
  • Page 10: Emi

    Table 2 Harmful gas limits in the equipment room Maximum concentration (mg/m 0.006 0.05 0.01 All electromagnetic interference (EMI) sources, from outside or inside of the switch and application system, adversely affect the switch in the following ways: • A conduction pattern of capacitance coupling. •...
  • Page 11: Installing The Switch

    Installing the switch CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence.
  • Page 12 Figure 1 Hardware installation flow Start Install the switch Connect the grounding cable With fan tray slots? Install fan trays With power module slots? Install power modules Connect power cords Verify the installation Resolve the Turn on the circuit breakers problem Turn off the Operating correctly?
  • Page 13: Installing The Switch In A 19-Inch Rack

    Installing the switch in a 19-inch rack Installation methods Table 3 Installation methods for the S5560X-EI switches Installation Chassis Installation requirements Installation procedure methods "Rack-mounting the S5560X-30C-EI switch by using front S5560X-54C-EI mounting brackets (for the S5560X-30C-EI, Using front S5560X-30F-EI Install the front mounting brackets at mounting S5560X-54C-EI,...
  • Page 14: Installation Accessories

    Installation accessories Table 4 Installation accessories for the S5560X-EI switches Front mounting brackets Rear mounting brackets and Switch model (Figure shoulder screws (Figure S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI Provided S5560X-54F-EI S5560X-34S-EI S5560X-54S-EI S5560X-30C-PWR-EI Provided Provided S5560X-54C-PWR-EI Figure 4 Front mounting bracket (1) Screw hole for attaching the bracket to the switch (2) Screw hole for attaching the bracket to the rack (3) M4 screw Figure 5 Rear mounting bracket and shoulder screw...
  • Page 15: Rack-Mounting The Switch By Using Front Mounting Brackets

    Rack-mounting the switch by using front mounting brackets (for the S5560X-30C-EI, S5560X-54C-EI, S5560X-30F-EI, S5560X-54F-EI, S5560X-34S-EI, and S5560X-54S-EI switches) Attaching the front mounting brackets to the switch Determine the mounting position for the front mounting brackets. You can install the front mounting brackets at the port side or power module side. Attach the front mounting brackets to the chassis: a.
  • Page 16 One person holds the switch chassis and aligns the installation holes on the mounting brackets with the cage nuts on the rack posts. The other person attaches the mounting brackets with M6 screws (user-supplied) to the rack. Figure 8 Mounting the switch in the rack (front mounting brackets at the port side) Figure 9 Mounting the switch in the rack (front mounting brackets at the power module side)
  • Page 17: S5560X-54C-Pwr-Ei)

    Rack-mounting the switch by using front and rear mounting brackets (S5560X-30C-PWR-EI and S5560X-54C-PWR-EI) Attaching the front mounting brackets and shoulder screws to the switch To rack-mount the S5560X-30C-PWR-EI and S5560X-54C-PWR-EI switches by using the front and rear mounting brackets, you can install the front mounting brackets at the port-side or power module-side mounting position.
  • Page 18 Figure 11 Attaching the rear mounting brackets to a rack with the wide flange inside the rack Figure 12 Attaching the rear mounting brackets to a rack with the wide flange outside the rack Mounting the switch in the rack Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
  • Page 19 One person supports the chassis bottom with one hand, holds the front part of the chassis with the other hand, and pushes the chassis into the rack gently. Make sure the shoulder screws make close contact with the upper edges of the rear mounting brackets, as shown in Figure The other person attaches the front mounting brackets with M6 screws (user-supplied) to the...
  • Page 20: Mounting The Switch On A Workbench

    Mounting the switch on a workbench IMPORTANT: • Reserve a minimum of 10 cm (3.9 in) of clearance around the chassis for heat dissipation. • Do not place heavy objects on the switch. To mount the switch on a workbench: Verify that the workbench is sturdy and reliably grounded.
  • Page 21 IMPORTANT: Orient the grounding cable as shown in Figure 15 so you can easily install or remove the expansion card. Figure 15 Connecting the grounding cable to the chassis (1) Grounding screw (2) Ring terminal (3) Grounding sign (4) Grounding hole (5) Grounding cable Connecting the grounding cable to a grounding strip (for the S5560X-30C-PWR-EI and S5560X-54C-PWR-EI switches)
  • Page 22: Grounding The Switch With A Grounding Conductor Buried In The Earth Ground

    Figure 17 Connecting the grounding cable to a grounding strip (1) Grounding post (2) Grounding strip (3) Grounding cable (4) Hex nut Connecting the grounding cable to a grounding strip (for the S5560X-30C-EI, S5560X-54C-EI, S5560X-30F-EI, S5560X-54F-EI, S5560X-34S-EI, and S5560X-54S-EI switches) Cut the grounding cable to a length required for connecting to the grounding strip.
  • Page 23: Installing/Removing A Fan Tray

    Figure 19 Grounding the switch by burying the grounding conductor into the earth ground (1) Grounding screw (2) Chassis rear panel (3) Grounding cable (4) Earth (5) Joint (6) Grounding conductor Installing/removing a fan tray CAUTION: • Install two fan trays of the same model on the switch. Do not power on the switch when it does not have fan trays or has only one fan tray installed.
  • Page 24: Installing A Fan Tray

    Installing a fan tray CAUTION: To prevent damage to the fan tray or the connectors in the chassis, insert the fan tray gently. If you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it again. To install a fan tray: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
  • Page 25: Installing/Removing A Power Module

    To remove a fan tray: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Grasp the two handles of the fan tray, as shown by callout 1 in Figure 21, and pull out the fan tray slowly along the guide rails.
  • Page 26: Installing A Psr150-A1/Psr150-A2/Psr150-D1 Power Module

    For the power modules available for the switch and their specifications, see "Appendix B FRUs and compatibility matrixes." Installing a PSR150-A1/PSR150-A2/PSR150-D1 power module CAUTION: To prevent damage to the power module or the connectors on the backplane, insert the power module gently.
  • Page 27: Removing A Psr150-A1/Psr150-A2/Psr150-D1 Power Module

    Figure 25 Installing a PSR150-A1 power module Removing a PSR150-A1/PSR150-A2/PSR150-D1 power module The removal procedure is the same for PSR150-A1, PSR150-A2, and PSR150-D1 power modules. The following procedure uses the PSR150-A1 power module as an example. To remove a PSR150-A1 power module: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
  • Page 28 Figure 26 Removing the filler panel Unpack the power module and verify that the power module model is correct. Put away the packaging box and packaging bag of the power module for future use. Correctly orient the power module with the power module slot (use the letters on the power module faceplate for orientation), grasp the handle of the power module with one hand and support its bottom with the other, and slide the power module slowly along the guide rails into the slot until you hear that the latch of the power module clicks into the slot.
  • Page 29: Removing A Psr360-56A/Psr560-56D/Psr720-56A/ Psr1110-56A Power Module

    Figure 28 PSR1110-56A power module installed in the chassis NOTE: The PSR1110-56A power module adds 64 mm (2.52 in) to chassis depth, which includes the handle of the power module. Removing a PSR360-56A/PSR560-56D/PSR720-56A/ PSR1110-56A power module The removal procedure is the same for the PSR360-56A, PSR560-56D, PSR720-56A, and PSR1110-56A power modules.
  • Page 30: Connecting The Power Cord

    Figure 29 Removing the power module Connecting the power cord Table 5 Power source options and power cord connection procedures for the power modules Power module model Power source option Power cord connection procedure Connecting the power cord for the built-in AC AC power source power module –48 VDC power source in...
  • Page 31: Connecting The Power Cord For The Built-In Ac Power Module

    WARNING! • The DC-input power receptacle on the switch requires a DC power cord with a JD5-A connector. • To use a –48 VDC power source for power supply, purchase an H3C recommended DC power cord yourself. • To use an RPS for power supply, purchase a power cord compatible with the RPS yourself.
  • Page 32: Connecting The Psr150-A1/Psr150-A2

    To connect a power cord for the built-in DC power module: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Correctly orient the power cord connector and insert the connector into the DC-input power receptacle.
  • Page 33: Connecting The Psr150-D1/Psr560-56D

    Connecting the PSR150-D1/PSR560-56D CAUTION: • To use a –48 VDC power source for power supply, purchase an H3C recommended DC power cord yourself. • To use an RPS for power supply, purchase a power cord compatible with the RPS yourself.
  • Page 34: Connecting The Psr360-56A/Psr720-56A/Psr1110-56A

    Figure 35 Connecting the PSR150-D1 Figure 36 Connecting the PSR560-56D Connecting the PSR360-56A/PSR720-56A/PSR1110-56A The power cord connection procedure is the same for the PSR360-56A, PSR720-56A, and PSR1110-56A power modules. The following procedure uses the PSR720-56A power module as an example. To connect the PSR720-56A: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
  • Page 35: Installing/Removing An Expansion Card

    Figure 37 Connecting the PSR720-56A Installing/removing an expansion card CAUTION: • Do not touch the surface-mounted components directly with your hands. • Do not use excessive force when you install or remove an expansion card. • Do not install or remove an expansion card on a starting switch. S5560X-EI switches except the S5560X-34S-EI and S5560X-54S-EI each provide an expansion slot at the rear.
  • Page 36 Figure 38 Removing the filler panel over the expansion slot Unpack the expansion card. If the expansion card has an ejector lever, follow these steps to install it: a. Rotate out the ejector lever, as shown by callout 1 in Figure b.
  • Page 37 Figure 39 Installing an expansion card with an ejector lever (LSWM2SP2PM) Figure 40 Installing an expansion card without an ejector lever (LSPM6FWD)
  • Page 38: Removing An Expansion Card

    Figure 41 LSPM6FWD firewall card installed in the switch NOTE: An LSPM6FWD or LSPM6FWD8 firewall card (including its handle) adds 75 mm (2.95 in) to the chassis depth when installed on the device. Removing an expansion card Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Use a Phillips screwdriver to remove the captive screw on the expansion card.
  • Page 39: Accessing The Switch For The First Time

    As a best practice, use the serial console port to access the switch. The switch is not provided with a serial console cable or a micro USB console cable. Prepare these cables yourself or purchase them from H3C. Figure 42 Connecting the serial console port to a PC...
  • Page 40: Connecting The Micro Usb Console Cable

    Click the following link, or copy it to the address bar on the browser to log in to download page of the USB console driver, and download the driver. http://www.h3c.com.hk/Technical_Support___Documents/Software_Download/Other_Product /USB_Console/USB_Console/ Select a driver program according to the operating system you use: XR21V1410_XR21B1411_Windows_Ver1840_x86_Installer.EXE—32-bit operating...
  • Page 41 Figure 44 Device Driver Installation Wizard Click Continue Anyway if the following dialog box appears. Figure 45 Software Installation Click Finish.
  • Page 42: Setting Terminal Parameters

    Figure 46 Completing the device driver installation wizard Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, TeraTermPro or PuTTY, on your PC. You can use the emulator program to connect a network device, a Telnet site, or an SSH site.
  • Page 43 After the startup completes, you can access the CLI to configure the switch. For more information about the configuration commands and CLI, see H3C S5560X-EI Switch Series Configuration Guides and H3C S5560X-EI Switch Series Command References.
  • Page 44: Setting Up An Irf Fabric

    Setting up an IRF fabric You can use H3C IRF technology to connect and virtualize S5560X-EI switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability. IRF fabric setup flowchart...
  • Page 45: Planning Irf Fabric Setup

    You can affect the election result by assigning a high member priority to the intended master switch. For more information about master election, see H3C S5560X-EI Switch Series IRF Configuration Guide or H3C S5560X-EI Switch Series Virtual Technologies Configuration Guide, depending on the software version.
  • Page 46: Planning Irf Topology And Connections

    Planning IRF topology and connections You can create an IRF fabric in daisy chain topology or more reliable ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Instead, the IRF fabric changes to a daisy chain topology without interrupting network services.
  • Page 47: Identifying Physical Irf Ports On The Member Switches

    SFP28 cable, or QSFP+ cable. For a long-distance IRF connection, use SFP+/SFP28/QSFP+ transceiver modules and optical fibers. The following subsections describe several H3C recommended IRF connection schemes. All these schemes use a ring topology. IMPORTANT: In these schemes, all physical IRF ports are located on the same side. If physical IRF ports are on...
  • Page 48 Connecting the IRF member switches in one rack Use twisted pair/SFP+/SFP28/QSFP+ cables to connect the IRF member switches (9 switches in this example) in a rack as shown in Figure 50. The switches in the ring topology (see Figure 51) are in the same order as connected in the rack.
  • Page 49: Configuring Basic Irf Settings

    • To bind the ports on an interface card to an IRF port, you must install the interface card first. For how to install an interface card, see H3C S5560X-EI Switch Series Interface Cards User Guide. • Execute the display irf configuration command to verify the basic IRF settings.
  • Page 50: Verifying The Irf Fabric Setup

    To avoid IP address collision and network problems, configure a minimum of one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more information about MAD detection, see H3C S5560X-EI Switch Series IRF Configuration Guide or H3C S5560X-EI Switch Series Virtual Technologies Configuration Guide,...
  • Page 51: Maintenance And Troubleshooting

    Overtemperature can cause the power module to stop working and enter the protection state. If the problem persists, contact H3C Support. RPS DC input If the system status LED or RPS status LED is off when the switch uses RPS power input, an RPS input failure might have occurred.
  • Page 52: Hot-Swappable Power Module Failure

    S5560X-54C-PWR-EI switches, observe the LEDs on the power module and the PWR LED on the front panel of the switch. For more information about the LEDs on a power module, see H3C PSR360-56A Power Module User Manual, H3C PSR560-56D Power Module User Manual, H3C PSR720-56A Power Module User Manual, or H3C PSR1110-56A Power Module User Manual.
  • Page 53: Fixed Fan Tray Failure

    Verify that the power module is supplying power to the switch. Verify that the console cable is correctly connected. Verify that the console cable does not have any problems and the PC settings are correct. If the problem persists, contact H3C Support. Garbled display Symptom The display on the PC is garbled.
  • Page 54 Flow control—None. If the problem persists, contact H3C Support.
  • Page 55: Appendix A Chassis Views And Technical Specifications

    Appendix A Chassis views and technical specifications Chassis views S5560X-30C-EI Figure 53 Front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Micro USB console port (6) Mode button (7) USB port (8) System status LED (SYS) (9) SFP+ port...
  • Page 56: S5560X-30C-Pwr-Ei

    The S5560X-30C-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 57: S5560X-54C-Ei

    The S5560X-30C-PWR-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 58: S5560X-54C-Pwr-Ei

    The S5560X-54C-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 59: S5560X-30F-Ei

    The S5560X-54C-PWR-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 60: S5560X-54F-Ei

    The S5560X-30F-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 61: S5560X-34S-Ei

    The S5560X-54F-EI switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In this figure, two LSPM1FANSB fan trays are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing/removing a fan tray."...
  • Page 62: S5560X-54S-Ei

    S5560X-54S-EI Figure 67 Front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Micro USB console port (6) Mode button (7) USB port (8) System status LED (SYS) (9) SFP+ port (10) Mode LED (MODE) (11) RPS status LED (RPS)
  • Page 63 Item S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI S5560X-54F-EI Management Ethernet port SFP+ port 24 (The rightmost 8 (Each and its eight SFP ports and corresponding their corresponding SFP port 10/100/1000BASE-T 10/100/1000BASE-T port form a combo autosensing interface.) Ethernet ports form combo interfaces.) 10/100/1000 8 (Each and its BASE-T corresponding SFP...
  • Page 64 Item S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI S5560X-54F-EI Operating -5°C to 45°C (23°F to 113°F) temperature Humidity 5% RH to 95% RH, noncondensing Fire resistance UL60950-1, EN60950-1, IEC60950-1, GB4943 compliance Table 11 Technical specifications for non-PoE switch models (2) Item S5560X-34S-EI S5560X-54S-EI 43.6 × 440 × 260 mm (1.72 × 17.32 × 43.6 ×...
  • Page 65 Table 12 Technical specifications for PoE switch models Item S5560X-30C-PWR-EI S5560X-54C-PWR-EI 43.6 × 440 × 460 mm 43.6 × 440 × 460 mm Dimensions (H × W × D) (1.72 × 17.32 × 18.11 in) (1.72 × 17.32 × 18.11 in) Weight ≤...
  • Page 66 Table 13 PoE power capacity of the S5560X-30C-PWR-EI and S5560X-54C-PWR-EI switches S5560X-30C-PWR-EI S5560X-54C-PWR-EI Power module Total PoE Max PoE power Total PoE Max PoE power configuration power capacity capacity per port power capacity capacity per port 2 × PSR1110-56A 810 W 30 W 1680 W 30 W...
  • Page 67: Appendix B Frus And Compatibility Matrixes

    Appendix B FRUs and compatibility matrixes S5560X-EI switches except the S5560X-34S-EI and S5560X-54S-EI use modular design and support FRUs. Table 14 FRUs and compatibility matrixes S5560X-30C-EI S5560X-54C-EI S5560X-30C-PWR-EI FRUs S5560X-30F-EI S5560X-54C-PWR-EI S5560X-54F-EI Hot swappable power modules PSR150-A1 Supported Not supported PSR150-A2 Supported Not supported...
  • Page 68: Hot-Swappable Power Modules

    • Max output power: 150 W • Rated input voltage range: 100 VAC to 240 VAC @ H3C PSR150-A & 50 Hz or 60 Hz PSR150-D Series Power • Max input voltage range: 90 VAC to 264 VAC @ 47...
  • Page 69: Hot-Swappable Fan Trays

    Back to front (from the power module side to the network port side) Input voltage 12 V Maximum power consumption 9.8 W Reference H3C LSPM1FANSA & LSPM1FANSB Fan Trays User Guide LSPM1FANSB fan tray Dimensions 40 × 40 × 104 mm (1.57 × 1.57 × 4.09 in) Fan speed 20000 R.P.M...
  • Page 70 Port type and quantity 8 × 10 Gbps SFP+ fiber ports Available transceiver modules Table 26 Table and cables H3C LSWM4SP8PM Interface Card User Manual and H3C Reference LSWM2SP8PM & LSWM2SP8P Interface Cards User Manual LSWM2SP2PM Description 2-port 10GE SFP+ interface card Port type and quantity 2 ×...
  • Page 71: Connecting Cables To The Copper Ports On The Interface Cards

    8-port 1/2.5/5/10GBASE-T interface card Port type and quantity 8 × 10G/5G/2.5G/1000BASE-T autosensing Ethernet ports Available cables Table Reference H3C LSWM2MGT8P & LSWM2XMGT8P Interface Cards User Manual LSWM2MGT8P Description 8-port 1/2.5/5GBASE-T interface card Port type and quantity 8 × 5G/2.5G/1000BASE-T autosensing Ethernet ports...
  • Page 72 • Use Category-6A or above cables and connectors. The max transmission distance varies by cable type: Category-6 UTP—55 m (180.45 ft). Category-6 STP—100 m (328.084 ft), no interference. Category-6 SFTP—100 m (328.084 ft). Category-6A and above twisted pair—100 m (328.084 ft). •...
  • Page 73: Appendix C Ports And Leds

    NOTE: USB devices from different vendors vary in compatibilities and drivers. H3C does not guarantee the correct operation of USB devices from all vendors on the switch. If a USB device fails to operate on...
  • Page 74: 1/10Base-T Autosensing Ethernet Port

    1/10BASE-T autosensing Ethernet port The LSWM2XGT2PM interface card provides 1/10BASE-T autosensing Ethernet ports. Table 20 1/10BASE-T autosensing Ethernet port specifications Item Specification Connector type RJ-45 Interface attributes 1/10 Gbps, full duplex, MDI/MDI-X auto-sensing • Category-6 UTP—55 m (180.45 ft) • Category-6 STP—100 m (328.09 ft) Max transmission distance •...
  • Page 75: 10G/5G/2.5G/1000Base-T Autosensing Ethernet Port

    Item Specification • 5G mode: Category-5e UTP—55 m (180.45 ft) Category-5e STP—100 m (328.09 ft) Transmission medium and max Category-6 twisted pair—100 m (328.09 ft) transmission distance Category-6e twisted pair—100 m (328.09 ft) • 2.5G mode: 100 m (328.09 ft) over Category-5e and above twisted pair cable Standards IEEE 802.3ab, 802.3an...
  • Page 76 Central Fiber diameter FE SFP module wavelength Connector transmission (µm) (nm) distance SFP-FE-LX-SM1310-A 1310 Single-mode, 9/125 15 km (9.32 miles) SFP-FE-LX-SM1310-D 1310 Single-mode, 9/125 15 km (9.32 miles) SFP-FE-LH40-SM1310 1310 Single-mode, 9/125 40 km (24.86 miles) SFP-FE-LH80-SM1550 1550 Single-mode, 9/125 80 km (49.71 miles) •...
  • Page 77: Sfp+ Port

    • As a best practice, use H3C transceiver modules and cables for the switch. • The H3C transceiver modules and cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact your H3C Support or marketing staff.
  • Page 78 Table 26 10-GE SFP+ transceiver modules available for the SFP+ ports Multimode Central Fiber 10-GE SFP+ fiber modal wavelength Connector diameter transmission module bandwidth (nm) (µm) distance (MHz × km) 2000 300 m (984.25 ft) Multi-mode, 82 m (269.03 ft) 50/125 SFP-XG-SX-M 66 m (216.54 ft)
  • Page 79: Sfp28 Port

    • As a best practice, use H3C transceiver modules and cables for the switch. • The H3C transceiver modules and cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact your H3C Support or marketing staff.
  • Page 80: Qsfp+ Port

    • As a best practice, use H3C transceiver modules and cables for the switch. • The H3C transceiver modules and cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact your H3C Support or marketing staff.
  • Page 81 Table 31 QSFP+ cables available for the QSFP+ ports QSFP+ network cable Max transmission distance LSWM1QSTK0 1 m (3.28 ft) LSWM1QSTK1 3 m (9.84 ft) LSWM1QSTK2 5 m (16.40 ft) Table 32 QSFP+ to SFP+ cables available for the QSFP+ ports QSFP+ to SFP+ cable Max transmission distance LSWM1QSTK3...
  • Page 82: Combo Interface

    • The H3C transceiver modules and cables are subject to change over time. For the most recent list of H3C transceiver modules and cables, contact your H3C Support or marketing staff.
  • Page 83: Rps Status Led

    RPS status LED The S5560X-34S-EI and S5560X-54S-EI switches support RPS power input and use an RPS status LED to indicate the RPS operating state. Table 35 RPS status LED description LED mark Status Description Steady green The RPS has normal AC input and DC output. Steady yellow The RPS has no or abnormal AC input.
  • Page 84: Sfp Port Led

    10/100/1000BASE-T autosensing Mode LED status Description Ethernet port LED status The port is sending or receiving data at 10/100 Flashing yellow Mbps No link is present on the port. The port is operating at full-duplex mode and a link Steady green is present on the port.
  • Page 85: Sfp+ Port Led

    Mode LED status SFP port LED status Description The port is operating at full-duplex mode and a link Steady green is present on the port. The port is sending and receiving data at Flashing green full-duplex mode. Steady yellow (duplex The port is operating at half-duplex mode and a link mode) Steady yellow...
  • Page 86: Management Ethernet Port Led

    Table 40 QSFP+ port LED description QSFP+ port LED Mode LED status Description status A link is present on the port and the port is Steady green operating at 40 Gbps. Flashing green The port is sending or receiving data at 40 Gbps. Steady green (rate mode) A link is present on the port and the port is Steady yellow...
  • Page 87: Port Status Led On The Expansion Card

    Port status LED on the expansion card The expansion cards provide a port status LED for each port. For more information about the LEDs, see the manuals for the expansion cards. Input status LED and output status LED on the power module The PSR360-56A, PSR560-56D, PSR720-56A, and PSR1110-56A power modules each have an input status LED and an output status LED.
  • Page 88: Appendix D Cooling System

    Appendix D Cooling system To dissipate heat timely and ensure system stability, the switch uses high-performance cooling system. Consider the site ventilation design when you plan the installation site for the switch. • The S5560X-34S-EI and S5560X-54S-EI switches use fixed fan trays and the airflow direction is from left to right.
  • Page 89 Figure 74 Airflow through the switch with hot-swappable fan trays (S5560X-54C-EI)
