Summary of Contents for H3C S5560-EI series
-
Page 1: Installation Guide

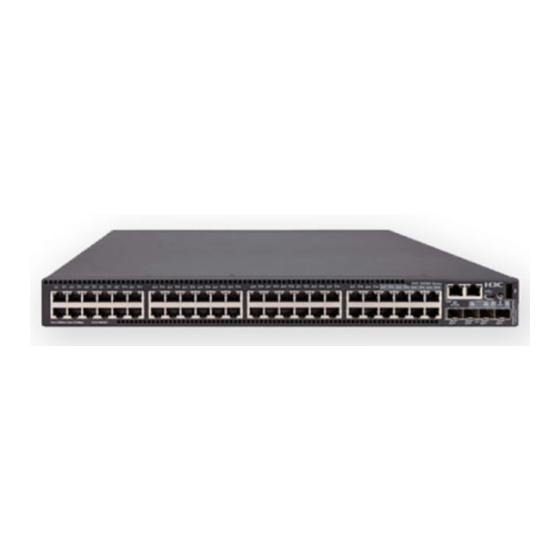

H3C S5560-EI Switch Series Installation Guide Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W102-20160822... - Page 2 Copyright © 2015-2016, Hangzhou H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd.
- Page 3 Preface H3C S5560-EI Switch Series Installation Guide describes the appearance, installation, power-on, maintenance, and troubleshooting of the H3C S5560-EI Switch Series. This preface includes: Audience • • Conventions About the H3C S5560-EI documentation set • Obtaining documentation • • Technical support Documentation feedback •...
- Page 4 GUI conventions Convention Description Window names, button names, field names, and menu items are in Boldface. For Boldface example, the New User window appears; click OK. > Multi-level menus are separated by angle brackets. For example, File > Create > Folder. Symbols Convention Description...
-
Page 5: Obtaining Documentation
Pluggable transceiver Guides you through installing SFP/SFP+/QSFP+ modules installation guide transceiver modules. Describes the hot-swappable modules available for Pluggable modules the H3C switches, their external views, and manual specifications. Describe software features and configuration Configuration guides procedures. Software configuration... -
Page 6: Documentation Feedback
Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments. -
Page 7: Table Of Contents
Contents Preparing for installation ············································································································································· 1 Safety recommendations ·················································································································································· 1 Examining the installation site ········································································································································· 1 Temperature/humidity ············································································································································· 2 Cleanliness ································································································································································ 2 EMI ············································································································································································· 3 Laser safety ································································································································································ 3 Installation tools ································································································································································· 3 ... - Page 8 Planning IRF fabric setup ··············································································································································· 45 Planning IRF fabric size and the installation site ································································································ 45 Identifying the master switch and planning IRF member IDs ············································································ 45 Planning IRF topology and connections ·············································································································· 46 Identifying physical IRF ports on the member switches ····················································································· 47 ...
- Page 9 RPS status LED ························································································································································ 84 LED for the port LED mode (MODE) ···················································································································· 84 10/100/1000BASE-T autosensing Ethernet port LED ······················································································ 85 100/1000Base-X SFP port LED ··························································································································· 85 SFP+ port LED ························································································································································ 86 QSFP+ port LED ····················································································································································· 86 ...
-
Page 10: Preparing For Installation
Preparing for installation H3C S5560-EI Switch Series includes the following models: S5560-30S-EI. • • S5560-54S-EI. S5560-30F-EI. • S5560-30C-EI. • S5560-30C-PWR-EI. • S5560-34C-EI. • • S5560-54C-EI. S5560-54C-PWR-EI. • S5560-54QS-EI. • Safety recommendations To avoid any equipment damage or bodily injury caused by improper use, read the following safety recommendations before installation. -
Page 11: Temperature/Humidity
Identify the hot aisle and cold aisle at the installation site, and make sure ambient air flows into the • switch from the cold aisle and exhausts to the hot aisle. Identify the airflow designs of neighboring devices, and prevent hot air flowing out of the •... -
Page 12: Emi
All electromagnetic interference (EMI) sources, from outside or inside of the switch and application system, adversely affect the switch in the following ways: A conduction pattern of capacitance coupling. • Inductance coupling. • Electromagnetic wave radiation. • • Common impedance (including the grounding system) coupling. To prevent EMI, use the following guidelines: If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE) to •... -
Page 13: Installing The Switch
Installing the switch CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. - Page 14 Figure 1 Hardware installation flow Start Install the switch Ground the switch Hot-swap fan trays? Select and install fan trays Hot-swap power modules? Select and install power modules Connect power cords Verify the installation Turn on the Troubleshoot the switch circuit breakers Turn off the circuit Operating...
-
Page 15: Installing The Switch In A 19-Inch Rack
Installing the switch in a 19-inch rack Installation methods Table 3 Installation methods for the S5560-EI switches Installation Chassis Installation requirements Installation procedure methods S5560-30C-EI S5560-34C-EI Install the front mounting brackets at the "Rack-mounting by S5560-54C-EI Using front mounting port side, power module side, or the using front mounting brackets S5560-30F-EI... - Page 16 Installation Chassis Installation requirements Installation procedure methods of 174 to 341 mm (6.85 to 13.43 in) and the distance from the rear rack posts to the inner surface of the cabinet door is longer than 153 mm (6.02 in), orient the bracket with the wide flange outside the rack.
-
Page 17: Installation Accessories
Installation accessories Table 4 Installation accessories for the S5560-EI switches S5560-30C-EI S5560-34C-EI S5560-54C-EI S5560-30C-PWR-EI Installation S5560-54QS-EI accessories S5560-30F-EI S5560-54C-PWR-EI S5560-30S-EI S5560-54S-EI Front mounting Provided Provided Provided brackets (Figure Rear mounting brackets and Provided Provided load-bearing screws (Figure Chassis rails and Optional slide rails (Figure... -
Page 18: Rack-Mounting By Using Front Mounting Brackets
Figure 6 Rear mounting bracket and load-bearing screw (1) Hole for attaching the bracket to a rack (2) Load-bearing screw Figure 7 Rack mounting rail kit (1) Chassis rail (2) Slide rail Rack-mounting by using front mounting brackets This task requires two people. To install the switch in a 19-inch rack by using the front mounting brackets: Identify the mounting positions. - Page 19 Use M4 screws to attach the mounting bracket to the chassis. Repeat the proceeding two steps to attach the other mounting bracket to the chassis. Figure 8 Attaching the front mounting bracket to the port side Figure 9 Attaching the front mounting bracket to the power module side Figure 10 Attaching the front mounting bracket to the middle installation position Mount the chassis in the rack: One person supports the chassis bottom with one hand, holds the front part of the chassis with...
- Page 20 Figure 11 Mounting the switch in the rack (front mounting brackets at the port side) Figure 12 Mounting the switch in the rack (front mounting brackets at the power module side)
-
Page 21: Rack-Mounting By Using Front And Rear Mounting Brackets
Figure 13 Mounting the switch in the rack (front mounting brackets at the middle installation position) Rack-mounting by using front and rear mounting brackets (S5560-30C-PWR-EI, S5560-54C-PWR-EI, and S5560-54QS-EI) This mounting method is applicable to only the S5560-30C-PWR-EI, S5560-54C-PWR-EI, and S5560-54QS-EI switches. You can install the front mounting brackets at the port-side or power-side mounting position as needed. - Page 22 Figure 14 Attaching the front mounting brackets and load-bearing screws to the chassis (S5560-30C-PWR-EI/S5560-54C-PWR-EI) Figure 15 Attaching the front mounting brackets and load-bearing screws to the chassis (S5560-54QS-EI) Attach the rear mounting brackets to the rack: Orient the rear mounting brackets with the wide flange inside or outside the rack as required. Install cage nuts (user-supplied) in the mounting holes in the rear rack posts.
- Page 23 Figure 16 Attaching the rear mounting brackets to a rack with the wide flange inside the rack Figure 17 Attaching the rear mounting brackets to a rack with the wide flange outside the rack Mount the switch chassis in the rack: One person supports the chassis bottom with one hand, holds the front part of the chassis with the other hand, and pushes the chassis into the rack gently.
- Page 24 The other person aligns the oval holes in the front brackets with the mounting holes in the front rack posts, and attaches the front mounting brackets with M6 screws (user supplied) to the front rack posts. Make sure the front and rear mounting brackets have securely attached the switch to the rack. Figure 18 Mounting the switch in the rack (with the wide flange of the mounting brackets inside the rack) Figure 19 Mounting the switch in the rack (with the wide flange of the mounting brackets outside the...
-
Page 25: Rack-Mounting By Using Front Mounting Brackets And Mounting Rail Assemblies (S5560-54Qs-Ei)
Rack-mounting by using front mounting brackets and mounting rail assemblies (S5560-54QS-EI) You can install the front mounting brackets at the port-side or power-side mounting position as needed. This task requires two people. To install the switch in a 19-inch rack by using the front mounting brackets and mounting rail assemblies: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. - Page 26 Figure 21 Installing the slide rails Mount the switch in the rack: Verify that the front mounting brackets and chassis rails have been securely attached to the switch chassis. Verify that the slide rails have been correctly attached to the rear rack posts. Install cage nuts (user-supplied) to the front rack posts and make sure they are at the same level as the slide rails.
- Page 27 Figure 22 Mounting the switch in the rack (1) Figure 23 Mounting the switch in the rack (2)
-
Page 28: Mounting The Switch On A Workbench
Mounting the switch on a workbench IMPORTANT: Ensure good ventilation and 10 cm (3.9 in) of clearance around the chassis for heat dissipation. • Avoid placing heavy objects on the switch. • To mount the switch on a workbench: Verify that the workbench is sturdy and reliably grounded. Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth. - Page 29 IMPORTANT: Orient the grounding cable as shown in Figure 24 so you can easily install or remove the expansion card. Figure 24 Connecting the grounding cable to the chassis (1) Grounding cable (2) Grounding sign (3) Grounding hole (4) Ring terminal (5) Grounding screw Verify that the grounding cable has been securely connected to the rear grounding point.
-
Page 30: Grounding The Switch With A Grounding Conductor Buried In The Earth Ground
Figure 26 Connecting the grounding cable to a grounding strip (1) Grounding post (2) Grounding strip (3) Grounding cable (4) Hex nut Connecting the grounding cable to a grounding strip (S5560-30S-EI, S5560-54S-EI, S5560-30F-EI, S5560-30C-EI, S5560-34C-EI, S5560-54C-EI, and S5560-54QS-EI) Cut the grounding cable to a length required for connecting to the grounding strip. Use a wire stripper to strip 20 mm (0.79 in) of insulation off the end of the grounding cable. -
Page 31: Grounding The Switch By Using The Ac Power Cord
Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for corrosion protection. Figure 28 Grounding the switch by burying the grounding conductor into the earth ground (1) Grounding screw (2) Chassis rear panel (3) Grounding cable (4) Earth (5) Joint... -
Page 32: Installing/Removing A Fan Tray
Installing/removing a fan tray CAUTION: Install two fan trays of the same model on the switch. Do not power on the switch when it does not have • a fan tray or has only one fan tray installed. Make sure slots are installed with fan trays or blank filler panels for the device to operate. •... -
Page 33: Removing A Fan Tray
Figure 29 Installing a fan tray IMPORTANT: At the first login to the switch, use the fan prefer-direction command to set the airflow direction of the • switch to be the same as the airflow direction of the fan tray. If the fan tray has a different airflow direction than the switch, the system outputs traps and logs to notify you to replace the fan tray. -
Page 34: Installing/Removing A Power Module
Figure 30 Removing a fan tray Installing/removing a power module WARNING! In power redundancy mode, you can replace a power module without powering off the switch but you must strictly follow the installation and removal procedures in Figure 31 Figure 32 to avoid any bodily injury or damage to the switch. -
Page 35: Installing A Psr150 Power Module
Installing a PSR150 power module CAUTION: To prevent damage to the power module or the connectors on the backplane, insert the power module gently. If you encounter a hard resistance when inserting the power module, pull out the power module and insert it again. -
Page 36: Removing A Psr150 Power Module
Figure 34 Installing a PSR150-A1 power module Removing a PSR150 power module Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Disconnect the power cord. Loosen the captive screws of the power module with a Phillips screwdriver until they are completely disengaged. - Page 37 Figure 35 Removing the filler panel (1) Method 2: Put your forefinger into the hole in the front panel and pull out the filler panel gently. Figure 36 Removing the filler panel (2) Unpack the power module and verify that the power module model is correct. Put away the packaging box and packaging bag of the power module for future use.
-
Page 38: Removing A Psr360-56A/Psr720-56A/Psr1110-56A Power Module
Figure 37 Installing a power module Figure 38 PSR1110-56A installed in the chassis Removing a PSR360-56A/PSR720-56A/PSR1110-56A power module Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Disconnect the power cord. Press the latch towards the handle, and pull the power module along the guide rails until it is part-way out. -
Page 39: Connecting The Power Cord
Figure 39 Removing the power module Connecting the power cord CAUTION: The AC power cord for the PSR150-A1 uses C13 connector, while the AC power cord for the • PSR360-56A/PSR720-56A/PSR1 1 10-56A uses high-temperature C15 connector. Do not mix them. Provide a circuit breaker for each power module and make sure the circuit breaker is off before •... -
Page 40: Connecting An Ac Power Cord To The Switch
Connecting an AC power cord to the switch To connect an AC power cord to a switch that uses fixed power modules: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Attach the hooks of the bail latch into the holes on the two sides of the AC-input power receptacle, and pull the bail latch upwards (see Figure 40). -
Page 41: Connecting A Dc Power Cord To The Switch
Connecting a DC power cord to the switch WARNING! H3C DC power cords are required if the –48 VDC power source is used. RPS power cords are required • if the RPS power source is used. Identify the positive (+) and negative (-) marks on the two wires to avoid connection mistakes. -
Page 42: Connecting The Psr150-D1
WARNING! • H3C DC power cords are required if the –48 VDC power source is used. RPS power cords are required if the RPS power source is used. Identify the positive (+) and negative (-) marks on the two wires to avoid connection mistakes. -
Page 43: Connecting The Psr360-56A/Psr720-56A/Psr1110-56A
Connect the two wires at the other end of the power cord to a –48 VDC power source or an external RPS power source. Figure 45 Connecting the PSR150-D1 Connecting the PSR360-56A/PSR720-56A/PSR1110-56A The following takes the PSR720-56A as an example. The connection procedure for the PSR360-56A and PSR1 1 10-56A is similar. -
Page 44: Installing/Removing An Expansion Card
Figure 46 Connecting the PSR720-56A Installing/removing an expansion card CAUTION: When you install or remove an expansion card, follow these guidelines: Do not touch the surface-mounted components on the card directly with your hands. • Do not use excessive force during the installation or removal procedure. •... - Page 45 Figure 47 Removing the filler panel over the expansion slot Unpack the expansion card. If the expansion card has an ejector lever, follow these steps to install it: Rotate out the ejector lever, as shown by callout 1 in Figure Gently push the expansion card into the slot along the guide rails until the expansion card has good contact with the chassis.
- Page 46 Figure 48 Installing an expansion card with an ejector lever Figure 49 Installing an expansion card without an ejector lever...
-
Page 47: Removing An Expansion Card
Figure 50 LSWM2XGT8PM interface card installed in the switch NOTE: • The LSWM2XGT8PM interface card adds 55 mm (2.17 in) to the chassis depth, which includes the handle of the interface card. The LSPM6FWD firewall card adds 75 mm (2.95 in) to the chassis depth, which includes the handle of •... -
Page 48: Accessing The Switch For The First Time
USB console port is available if you connect both the serial console port and Mini USB console port. The switch is not provided with a serial console cable or Mini USB console cable. Prepare these cables yourself or purchase them from H3C. Figure 51 Connecting the console port to a PC... -
Page 49: Connecting The Mini Usb Console Cable
Click the following link, or copy it to the address bar on the browser to log in to download page of the USB console driver, and download the driver. http://www.h3c.com/portal/Technical_Support___Documents/Software_Download/Other_Pro duct/USB_Console/ Select a driver program according to the operating system you use: XR21V1410_XR21B141 1_Windows_Ver1840_x86_Installer.EXE—32-bit operating system. - Page 50 Figure 53 Device Driver Installation Wizard Click Continue Anyway if the following dialog box appears. Figure 54 Software Installation Click Finish.
-
Page 51: Setting Terminal Parameters
Figure 55 Completing the device driver installation wizard Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, TeraTermPro or PuTTY, on your PC. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. - Page 52 After the startup completes, you can access the CLI to configure the switch. For more information about the configuration commands and CLI, see H3C S5560-EI Switch Series Configuration Guides and H3C S5560-EI Switch Series Command References.
-
Page 53: Setting Up An Irf Fabric
Setting up an IRF fabric You can use H3C IRF technology to connect and virtualize S5560-EI switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability. IRF fabric setup flowchart... -
Page 54: Planning Irf Fabric Setup
You can affect the election result by assigning a high member priority to the intended master switch. For more information about master election, see H3C S5560-EI Switch Series IRF Configuration Guide. Prepare an IRF member ID assignment scheme. An IRF fabric uses member IDs to uniquely identify and... -
Page 55: Planning Irf Topology And Connections
Planning IRF topology and connections You can create an IRF fabric in daisy chain topology or more reliable ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Instead, the IRF fabric changes to a daisy chain topology without interrupting network services. -
Page 56: Identifying Physical Irf Ports On The Member Switches
Figure 58 IRF fabric in ring topology Identifying physical IRF ports on the member switches Identify the physical IRF ports on the member switches according to your topology and connection scheme. Table 7 shows the physical ports that can be used for IRF connection and the port use restrictions. Table 7 Physical IRF port requirements Chassis Candidate physical IRF ports... - Page 57 SFP+/QSFP+ transceiver modules, see "Appendix C Ports and LEDs." The following subsections describe several H3C recommended IRF connection schemes, and all these schemes use a ring topology. IMPORTANT: In these schemes, all physical IRF ports are located on the same side. If physical IRF ports are on different sides, you must measure the distance between them to select an appropriate cable.
- Page 58 Figure 59 Connecting the switches in one rack...
-
Page 59: Configuring Basic Irf Settings
To bind the ports on an interface card to an IRF port, you must install the interface card first. For how • to install an interface card, see H3C S5560-EI Switch Series Interface Cards User Guide. Execute the display irf configuration command to verify the basic IRF settings. -
Page 60: Verifying The Irf Fabric Setup
Wear an ESD wrist strap when you connect SFP+/QSFP+ cables or SFP+/QSFP+ transceiver modules and fibers. For how to connect them, see H3C SFP/SFP+/XFP/SFP28 Transceiver Modules and Network Cables Installation Guide and H3C QSFP+/QSFP28 Transceiver Modules and Network Cables Installation Guide. -
Page 61: Maintenance And Troubleshooting
Verify that the operating temperature of the switch is in an acceptable range, and the power module has good ventilation. Over-temperature can cause the power module to stop working and enter protection state. If the problem persists, contact H3C Support. RPS DC input Symptom •... -
Page 62: Hot Swappable Power Module Failure
Verify that the operating temperature of the switch is in an acceptable range, and the power module has good ventilation. Over-temperature can cause the power module to stop working and enter protection state. If the problem persists, contact H3C Support. Concurrent RPS and AC inputs Symptom 1 •... -
Page 63: Fan Failure
Table • • For more information about the LEDs on a power module, see H3C PSR360-56A Power Module User Manual, H3C PSR720-56A Power Module User Manual, and H3C PSR1 1 10-56A Power Module User Manual. S5560-30F-EI, S5560-30C-EI, S5560-54C-EI, S5560-30C-PWR-EI, S5560-54C-PWR-EI, or... -
Page 64: Configuration Terminal Display Problems
Verify that the power module is supplying power to the switch. Verify that the console cable is correctly connected. Verify that the console cable does not have any problems and the PC settings are correct. If the problem persists, contact H3C Support. Garbled display Symptom The display on the PC is garbled. -
Page 65: Appendix A Chassis Views And Technical Specifications
Appendix A Chassis views and technical specifications Chassis views S5560-30S-EI Figure 62 S5560-30S-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) SFP+ port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) LED for the port LED mode (MODE) (8) USB port (9) System status LED (SYS) -
Page 66: S5560-54S-Ei
S5560-54S-EI Figure 64 S5560-54S-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (4) Console port (CONSOLE) (3) SFP+ port (5) Mini USB console port (6) Port LED mode switching button (7) LED for the port LED mode (MODE) (8) USB port (9) System status LED (SYS) (10) RPS status LED (RPS) -
Page 67: S5560-30F-Ei
S5560-30F-EI Figure 66 S5560-30F-EI front panel (1) SFP port (2) SFP port LED (3) 10/100/1000BASE-T autosensing Ethernet port (4) 10/100/1000BASE-T autosensing Ethernet port LED (5) Management Ethernet port (6) Console port (CONSOLE) (7) Mini USB console port (8) Port LED mode switching button (9) USB port (10) System status LED (SYS) (11) SFP+ port... -
Page 68: S5560-30C-Ei
S5560-30C-EI Figure 68 S5560-30C-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) USB port (8) System status LED (SYS) (9) SFP+ port (10) LED for the port LED mode (MODE) (11) Expansion card status LED (SLOT) -
Page 69: S5560-30C-Pwr-Ei
S5560-30C-PWR-EI Figure 70 S5560-30C-PWR-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) USB port (8) System status LED (SYS) (9) SFP+ port (10) LED for the port LED mode (MODE) (11) Expansion card status LED (SLOT) -
Page 70: S5560-34C-Ei
S5560-34C-EI Figure 72 S5560-34C-EI front panel 3 4 5 6 (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) USB port (8) System status LED (SYS) (9) SFP+ port... -
Page 71: S5560-54C-Ei
S5560-54C-EI Figure 74 S5560-54C-EI front panel 3 4 5 6 (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) USB port (8) System status LED (SYS) (9) SFP+ port... -
Page 72: S5560-54C-Pwr-Ei
S5560-54C-PWR-EI Figure 76 S5560-54C-PWR-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) Management Ethernet port (4) Console port (CONSOLE) (5) Mini USB console port (6) Port LED mode switching button (7) USB port (8) System status LED (SYS) (9) SFP+ port (10) LED for the port LED mode (MODE) (11) Expansion card status LED (SLOT) -
Page 73: S5560-54Qs-Ei
S5560-54QS-EI Figure 78 S5560-54QS-EI front panel (1) 10/100/1000BASE-T autosensing Ethernet port (2) 10/100/1000BASE-T autosensing Ethernet port LED (3) SFP+ port (4) SFP+ port LED (5) QSFP+ port (6) QSFP+ port LED (7) System status LED (SYS) Figure 79 S5560-54QS-EI rear panel (1) Grounding screw (2) Fan tray 1 (3) ACT LED for the management Ethernet port... - Page 74 Rated voltage range: –48 VDC to –60 VDC Input voltage Max voltage range: –36 VDC to –72 VDC NOTE: You can use the site –48 VDC power source or an H3C RPS800-A or RPS1600-A RPS as the DC power source. • •...
- Page 75 Item S5560-30S-EI S5560-54S-EI S5560-30F-EI S5560-30C-EI power • • 120 W input: 107 W DC: 68 W DC: 82 W consumption • • Single DC input: Single 123 W input: 108 W • • Dual AC inputs: Dual AC inputs: 146 W 1 1 1 W •...
- Page 76 Rated voltage range: –48 VDC to –60 VDC Input voltage Max voltage range: –36 VDC to –72 VDC NOTE: You can use the site –48 VDC power source or an H3C RPS800-A or RPS1600-A RPS as the DC power source. • •...
- Page 77 Item S5560-30C-PWR-EI S5560-54C-PWR-EI (1.72 × 17.32 × 18.11 in) (1.72 × 17.32 × 18.11 in) Weight ≤ 10 kg (22.05 lb) ≤ 10 kg (22.05 lb) • 1 × Mini USB console port • 1 × serial console port Console ports Only the Mini USB console port is available when you connect both ports.
- Page 78 S5560-30C-PWR-EI S5560-54C-PWR-EI Power module Total PoE Max PoE power Total PoE power Max PoE power configuration power capacity capacity per port capacity capacity per port 2 × PSR1110-56A 810 W 30 W 1680 W 30 W 1 × PSR1110-56A and 810 W 30 W 1560 W...
-
Page 79: Appendix B Frus And Compatibility Matrixes
Appendix B FRUs and compatibility matrixes FRUs and compatibility matrixes Table 13 FRUs and compatibility matrixes S5560-30F-EI S5560-30S-EI S5560-30C-EI S5560-30C-PWR-EI FRUs S5560-54QS-EI S5560-54S-EI S5560-54C-EI S5560-54C-PWR-EI S5560-34C-EI Hot swappable power modules PSR150-A1 Not supported Supported Not supported Supported PSR150-D1 Not supported Supported Not supported Supported... -
Page 80: Hot-Swappable Power Modules
Specifications Reference • Rated input voltage range: 100 VAC to 240 VAC @ 50 Hz or 60 Hz H3C PSR150-A & PSR150-D Series • Max input voltage range: 90 VAC to PSR150-A1 Power Modules User Manual 264 VAC @ 47 Hz to 63 Hz •... -
Page 81: Hot-Swappable Fan Trays
Back to front (from the power module side to the network port side) Input voltage 12 V Maximum power consumption 9.8 W Reference H3C LSPM1FANSA & LSPM1FANSB Fan Trays User Guide LSPM1FANSB fan tray Dimensions 40 × 40 × 104 mm (1.57 × 1.57 × 4.09 in) Fan speed 20000 R.P.M... - Page 82 Available transceiver modules Table Table 24, and Table and cables Reference H3C LSWM2SP8PM & LSWM2SP8P Interface Cards User Manual LSWM2SP2PM Description 2-port 10GE SFP+ interface card Port type and quantity 2 × 1/10 Gbps SFP+ fiber port Available transceiver modules...
-
Page 83: Interface Card Operating Mode
0 and 2. breakout interfaces split from a QSFP+ port. The operating mode configuration takes effect only after you reboot the switch. For more information about the interface card operating modes, see H3C S5560-EI Switch Series Layer 2—LAN Switching Command Reference. NOTE: The S5560-54S-EI switch does not support interface cards. -
Page 84: Connecting Cables To The Copper Ports On The Interface Cards
Connecting cables to the copper ports on the interface cards The LSWM2XGT2PM and LSWM2XGT8PM interface cards provide copper ports. To connect cables to the copper ports on the LSWM2XGT2PM and LSWM2XGT8PM interface cards, follow these guidelines: Use Category-6A or above cables and connectors. The max transmission distance varies by cable •... -
Page 85: Appendix C Ports And Leds
Appendix C Ports and LEDs Ports Console port The switch has two console ports: a serial console port and a Mini USB console port. Table 18 Console port specifications Item Console port Mini USB console port Connector type RJ-45 Mini USB Type B Compliant standard EIA/TIA-232 USB 2.0... -
Page 86: Usb Port
NOTE: USB devices from different vendors vary in compatibilities and drivers. H3C does not guarantee the correct operation of USB devices from all vendors on the switch. If a USB device fails to operate on the switch, replace it with one from another vendor. -
Page 87: Sfp Port
As a best practice, use only H3C SFP transceiver modules and cables for the SFP ports. • The H3C SFP transceiver modules and cables available for the SFP ports are subject to change over time. • For the most recent list of SFP transceiver modules and cables available for the SFP port, contact your H3C Support or marketing staff. - Page 88 Table 23 GE SFP transceiver modules and cables available for the SFP+ ports GE SFP Cable/Fiber Central Modal transceiver wavelength Connector type and bandwidth transmission module and (nm) diameter (μm) (MHz × km) distance cable SFP copper transceiver module Twisted pair SFP-GE-T RJ-45 100 m (328.08 ft)
- Page 89 Table 24 10-GE SFP+ transceiver modules available for the SFP+ ports Multimode Fiber Central 10-GE SFP+ fiber modal Max transmission wavelength Connector diameter module bandwidth distance (nm) (μm) (MHz × km) 2000 300 m (984.25 ft) Multi-mode, 82 m (269.03 ft) 50/125 SFP-XG-SX-MM85 66 m (216.54 ft)
-
Page 90: Qsfp+ Port
The LSWM2SP8P interface card does not support the SFP-XG-LX220-MM1310 transceiver module. • As a best practice, use only H3C SFP/SFP+ transceiver modules and cables for the SFP+ ports. • The H3C SFP/SFP+ transceiver modules and cables available for the SFP+ ports are subject to change •... - Page 91 Table 27 QSFP+ cables available for the QSFP+ ports QSFP+ cable Max transmission distance LSWM1QSTK0 1 m (3.28 ft) LSWM1QSTK1 3 m (9.84 ft) LSWM1QSTK2 5 m (16.40 ft) Table 28 QSFP+ to SFP+ cables available for the QSFP+ ports QSFP+ to SFP+ cable Max transmission distance LSWM1QSTK3...
-
Page 92: Combo Interface
NOTE: As a best practice, use H3C QSFP+ transceiver modules, QSFP+ cables, or QSFP+ to SFP+ cables for the • QSFP+ ports on the switch. The H3C QSFP+ transceiver modules, QSFP+ cables, and QSFP+ to SFP+ cables available for the QSFP+ ports are subject to change over time. For the most recent list of QSFP+ transceiver modules, QSFP+ cables, and QSFP+ to SFP+ cables available for the QSFP+ ports, contact H3C Support or marketing staff. -
Page 93: Rps Status Led
LED mark Status Description A power module is installed in power module slot 1, but the power Steady yellow module has failed or no power is input to the power module. No power module is installed in power module slot 1. A power module is installed in power module slot 2, and the Steady green power module is outputting power correctly. -
Page 94: 10/100/1000Base-T Autosensing Ethernet Port Led
10/100/1000BASE-T autosensing Ethernet port LED The switch provides a status LED for each 10/100/1000BASE-T autosensing Ethernet port. The port LED and the MODE LED work in conjunction to indicate the operating status of the 10/100/1000BASE-T autosensing Ethernet port. Table 33 10/100/1000BASE-T autosensing Ethernet port LED description 10/100/1000BASE-T MODE LED status autosensing Ethernet... -
Page 95: Sfp+ Port Led
MODE LED status SFP port LED status Description Flashing yellow The port is sending or receiving data at 100 Mbps. Flashing yellow (3 The port has failed POST. No link is present on the port. The SFP port LEDs on the switch work in conjunction to indicate S5560-30F-EI: Flashing yellow (IRF the IRF member ID of the switch. -
Page 96: Management Ethernet Port Leds
Management Ethernet port LEDs S5560-30C-EI&S5560-34C-EI&S5560-54C-EI&S5560-30F-EI&S5560-30C-PWR-EI&S5560-54C-PWR- S5560-30C-EI, S5560-34C-EI, S5560-54C-EI, S5560-30F-EI, S5560-30C-PWR-EI, S5560-54C-PWR-EI switches provide an ACT/LINK LED to indicate the operating state of the management Ethernet port. Table 37 Management Ethernet port LED description for the S5560-30C-EI, S5560-34C-EI, S5560-54C-EI, S5560-30F-EI, S5560-30C-PWR-EI, and S5560-54C-PWR-EI switches Management Ethernet port Description LED (ACT/LINK) status... -
Page 97: Port Status Led On The Expansion Card
Port status LED on the expansion card The expansion cards provide a port status LED for each port. For more information about the LEDs, see the manuals for the expansion cards. Input status LED and output status LED on the power module The PSR360-56A, PSR720-56A, and PSR1 1 10-56A power modules each have an input status LED and an output status LED. -
Page 98: Appendix D Cooling System
Appendix D Cooling system To dissipate heat timely and ensure system stability, the switch uses high-performance cooling system. Consider the site ventilation design when you plan the installation site for the switch. The S5560-30S-EI and S5560-54S-EI switches use fixed fan trays. Ambient air flows in through the •... - Page 99 Figure 84 Airflow through the S5560-54C-EI switch (with air vents in the two sides) Figure 85 Airflow through the S5560-54QS-EI switch (without air vents in the two sides)
- Page 100 Index IRF basic settings, Numerics switch, 10/100/1000 Base-T autosensing Ethernet troubleshooting configuration terminal combo interface, problems, port, 77, verify the IRF fabric setup, 51, port LED, connecting 19-inch rack AC power cord, switch installation, console cable, switch installation accessories, DC power cord, first time switch access, AC power cord IRF member switches in a ToR solution,...
- Page 101 installation, 23, removal, 23, electrical status LED, connecting AC power cord, technical specifications, connecting console cable, fiber connecting DC power cord, laser safety recommendations, connecting power cord, field replacement unit. See connecting PSR150-A1, fixed fan connecting PSR150-D1, failure (troubleshooting), connecting fixed power module PSR360-56A/PSR720-56A/PSR1 1 10-56A, failure (troubleshooting),...
- Page 102 grounding switch with a grounding conductor IRF master switch, buried in the earth ground, IRF member switch physical ports, grounding switch with grounding strip, installing installation accessories, EMI prevention, expansion card installation, 35, examining installation site, expansion card port status LED, fan tray, 23, expansion card removal, front and rear mounting bracket kit,...
- Page 103 planning member IDs, networking planning size, planning IRF cabling scheme, planning topology, no display (troubleshooting), setting up, setup flowchart, parity (parameter), verify the IRF fabric setup, 51, troubleshooting garbled terminal display, troubleshooting no display, 10/100/1000 Base-T autosensing Ethernet physical port port, connecting, fan tray status LED,...
- Page 104 preparing for installation, troubleshooting fan failure, preventing troubleshooting fixed fan failure, EMI prevention, troubleshooting fixed power module failure, procedure troubleshooting garbled display, configuring IRF basic settings, troubleshooting hot swappable fan failure, connecting AC power cord, troubleshooting hot-swappable power module failure, connecting DC power cord, troubleshooting no display, connecting grounding cable to chassis,...
- Page 105 grounding the switch with a grounding planning IRF cabling scheme, 47, conductor buried in the earth ground, planning IRF member IDs, grounding the switch with grounding strip, ports, installation site cleanliness, powering on, installation site dust concentration, setting configuration environment, installation site gas saturation, setting terminal parameters, installation site humidity,...
- Page 106 RPS status LED, SFP port, SFP port LED, SFP+ port, SFP+ port LED, system status LED, USB port, temperature installation site requirements, tools needed for installation, topology planning IRF cabling scheme, 47, topology (IRF fabric), troubleshooting configuration terminal problems, fan failure, fixed fan failure, fixed power module failure, garbled display,...
