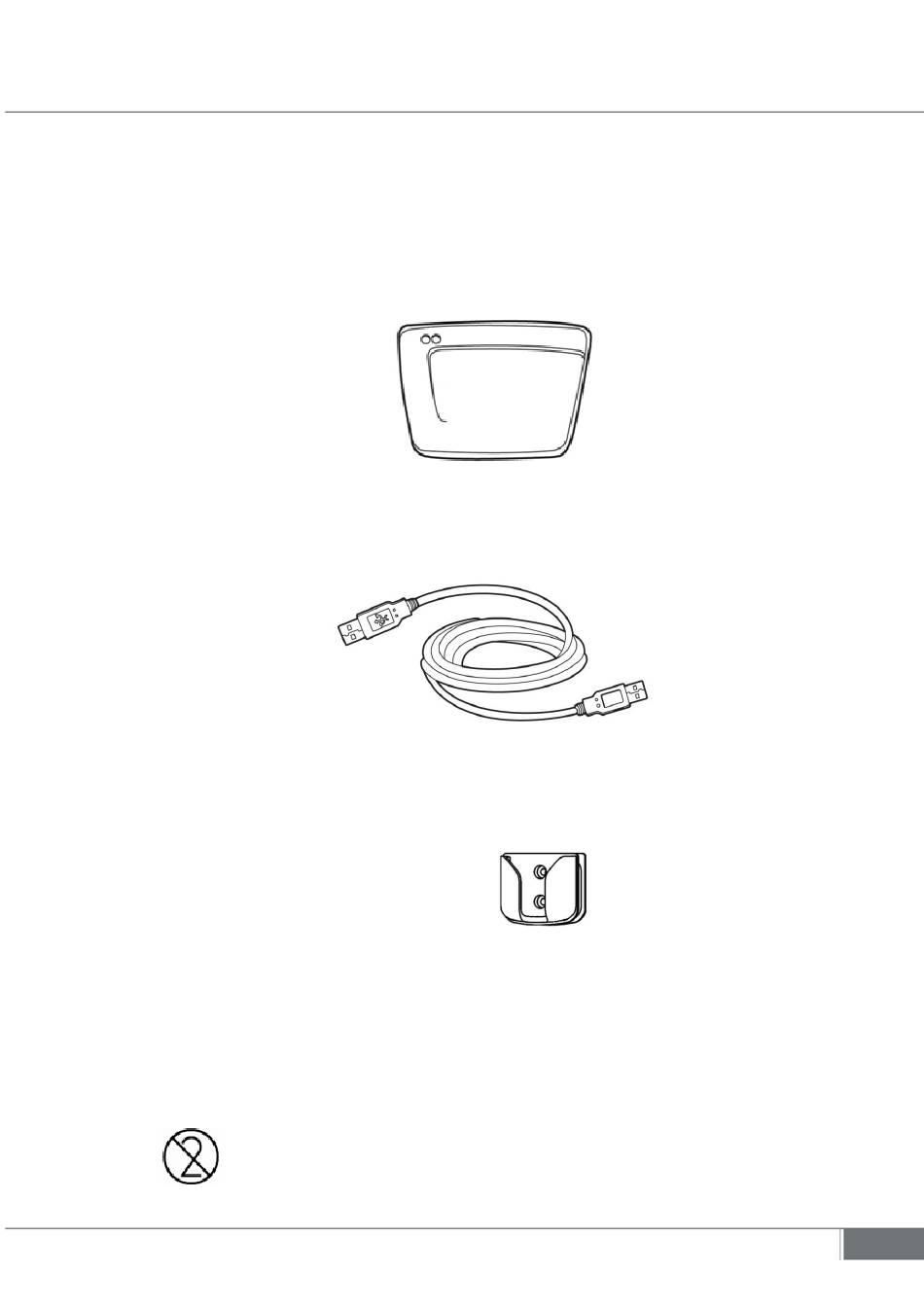

2. Control Board Box:
Provides power to the sensor, timing and synchronization of sensor signals, signal pre-
amplification, analogue/digital signal conversion, USB port interface and optical
insulation of all connections.
3. USB PC Interface Cable:
Used to transmit the output signal from the control board box to the computer.
4. Holder for Sensor:
Used to stow the sensor when not in use
5. Silicon cover:
Used to protect from external shock.
6. Wrap (Hygienic Sleeves):
The sensor is supplied in a non sterile state. Single-use wrap must cover the
sensor before placing it in the patient‟s mouth. The once used wrap shall be
