Installation Procedure
Installation Procedure

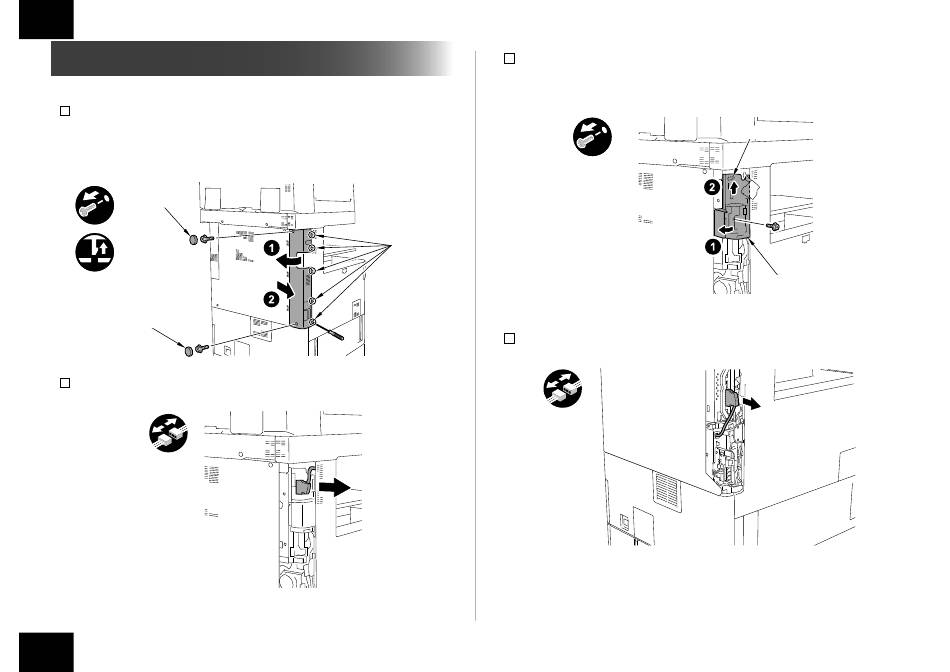

■ Installing the Open I/F PCB
1) Remove the Left Rear Cover.
• 2 Rubber Caps
• 2 Screws
• 5 Claws
Rubber Caps
x2
x5
Rubber Caps
2) When the Reader is installed, remove the Reader Communication Cable.
Installation Procedure
3) Remove the Left Rear Sub Cover.
• 1 Screw
• 1 Hook
Claws
4) When the FAX is installed, remove the FAX cable.
F-1-6
F-1-7
4
Hook
Left Rear
Sub Cover
F-1-8
F-1-9
4
