Public Educational & Governmental Access Encoder
General Description
The PEG PLUS is a High Definition (HD)/Standard Definition (SD) video encoder with IP output. The PEG encoder has two
IP output two streams available in HD or SD in MPEG-2 and H.264 formats. The HD streams can be based on HD-SDI
input and the SD streams can be based on Composite, SD-SDI, or HD-SDI input source resolution. For each output stream,
UDP is encapsulated SPTS (single program transport stream). The PEG PLUS is controlled through a web page interface.
The web page provides remote monitoring and updating capabilities and SNMP traps for status updates.
Features
• Encodes two HD or SD streams of the same content in MPEG-2 and H.264 formats
• GUI-based menu for local & remote configuration (Password Protected)
• Unicast or Multicast is defined by the IP address
• Field-upgradable firmware
• Supports PNG images upon loss of input video

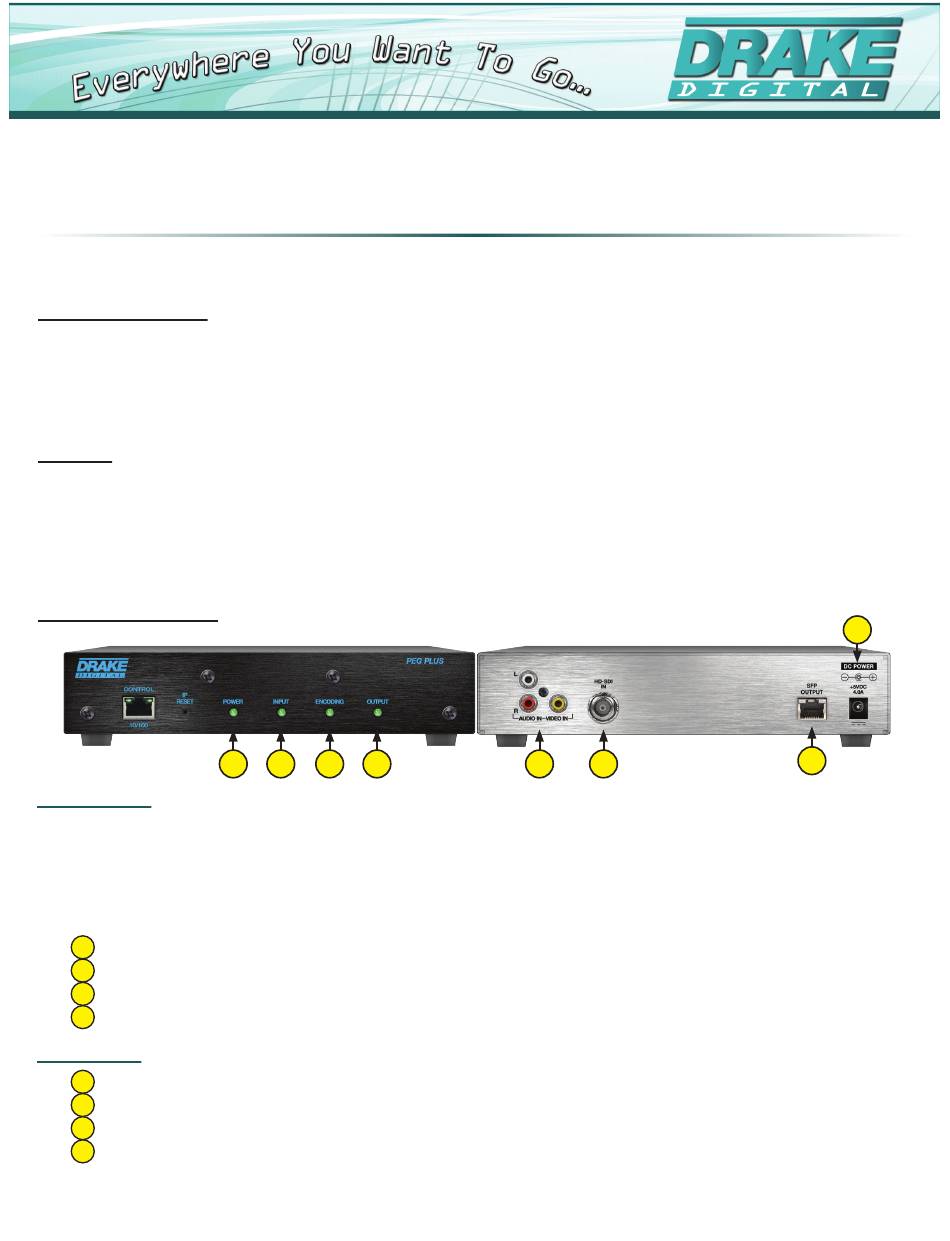

PEG PLUS Operation

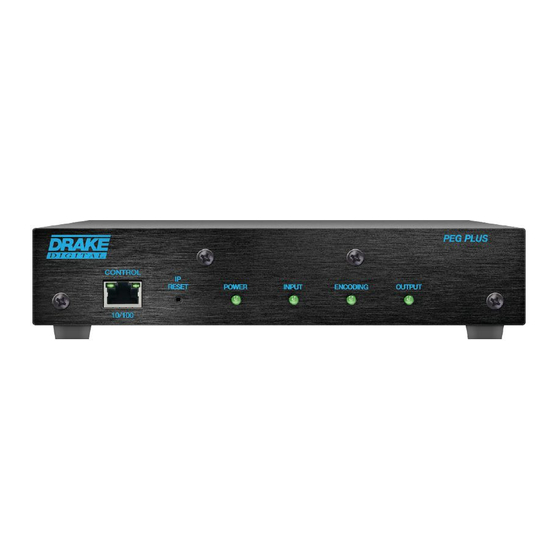

FRONT PANEL
1. Ethernet Control: 10/100 Ethernet wired connection for local and remote management
2. IP Reset Button: When pressed for >2 seconds, the IP address of the control port will enable to the default factory IP
address (172.16.70.1, Subnet Mask 255.255.255.0) The login credentials will also be enabled to the default username
admin and password pass.
Note: The old IP address, login, and password will still be present in the encoder settings.
3. Status LEDs: Provides a status of tasks performed by the PEG encoder in real-time:
Power: The LED is illuminated when the power is ON.
1
Input: The LED is illuminated when input video is being received from the HD/SD SDI or Composite input.
2
Encoding: The LED is illuminated when the internal encoder is operational.
3
Output: The LED is illuminated when the copper or optical SFP is connected to a network.
4
REAR PANEL
NTSC Composite Video/Audio In: Analog video with Left and Right Audio.
5
HD-SDI IN: Digital video HD/SD SDI input source
6
SFP Ethernet Output: Optical or Copper SFP IP video and audio output
7
5VDC Power Port: Accepts five-volt power to the device
8
© 2016 R.L. Drake Holdings, LLC. • www.rldrake.com • 937-746-4556
PEG PLUS Model
QUICK SETUP GUIDE
1
2
3
4
5
6
8
7
Rev: 082916 P/N 651243100A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DRAKE PEG PLUS
Summary of Contents for DRAKE PEG PLUS
- Page 1 General Description The PEG PLUS is a High Definition (HD)/Standard Definition (SD) video encoder with IP output. The PEG encoder has two IP output two streams available in HD or SD in MPEG-2 and H.264 formats. The HD streams can be based on HD-SDI input and the SD streams can be based on Composite, SD-SDI, or HD-SDI input source resolution.
- Page 2 Open a Chrome or Firefox web browser on your computer and enter the following URL address (http://172.16.70.1). Once the PEG PLUS web server has been loaded from your browser, you should see the login dialog. Enter the username and password and click LOG IN. The default username is "admin" (in lower case letters) and the default password is "pass"...
- Page 3 The status tab provides the following information (View only): The serial number indicates serial number of PEG PLUS encoder The hardware version indicates the hardware version of the PEG PLUS encoder Indicates the software version of the unit Indicates user-defined unit constants (Name and Location) The Up-Time of the unit expressed in days, hours, minutes, and seconds.
- Page 4 Encoder Tab Global Settings: Sets global settings that apply to both streams and the possible outputs Source: SDI or Composite/Analog If composite/analog source is selected, the GUI will display Brightness, Contrast, Saturation, and Hue Shift parameter settings. Video Resolution: displays input source Audio Synchronization: Audio video lip-sync adjustment used to adjust your audio to video synchronization.
- Page 5 Encoder Tab SD Video Bitrate (Mbps): 1 to 4 incremented by 0.1 HD Video Bitrate (Mbps): 3.5 to 13 incremented by .01 Aspect Ratio: 16:9 or 4:3 Audio Encoder Format: Select MP2 for MPEG-1 Audio Layer 2, AC-3 for Dolby Digital (AC-3); AAC (Advanced Audio Coding) Audio DialNorm: range from -1dB to -31dB Audio Bitrate (kbps): 128, 192, 320, or 384...
- Page 6 System Configuration Tab Unit Description: Unit Name and User Location SNMP Settings: Trap IP address, Trap Target Port, System Contract Web Settings: User Timeout - 5 minutes to 30 minutes www.rldrake.com 937.746.4556 |...
- Page 7 Please perform whatever steps are applicable from the product’s Instruction Manual before calling or writing as this could save unnecessary phone charges. Please do not return the product without calling Drake Service and following the steps above first;...
- Page 8 R.L. DRAKE HOLDINGS, LLC Sales: 937-746-4556 • Support: 937-746-6990 • Fax: 937-806-1510 www.rldrake.com...
