PEG-NE24-IP & PEG-NE24-IP-C Models
Public Educational & Governmental Access Encoder
Model
Item #
PEG-NE24-IP
1002606
PEG-NE24-IP-C
1002613
© 2017 R.L. Drake Holdings, LLC.
INSTRUCTION MANUAL
Description
HD PEG Channel Encoder with HD-SDI Input and IP Output
HD PEG Channel Encoder with HD-SDI or Composite Video Input
with L/R Audio and IP Output
937-746-4556
www.rldrake.com
Rev: 081717 / 651237100E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DRAKE 1002606
Summary of Contents for DRAKE 1002606

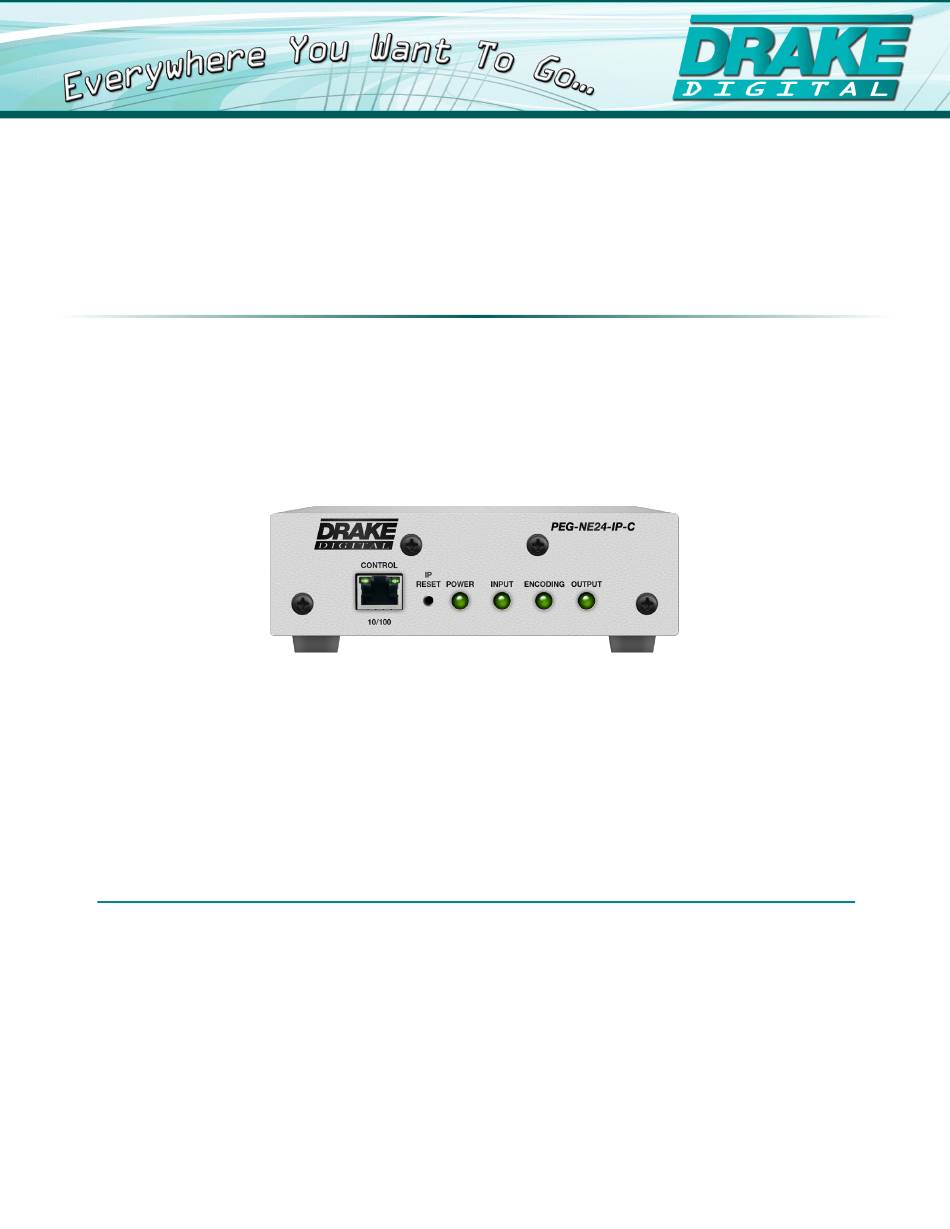

- Page 1 HD PEG Channel Encoder with HD-SDI Input and IP Output PEG-NE24-IP-C 1002613 HD PEG Channel Encoder with HD-SDI or Composite Video Input with L/R Audio and IP Output 937-746-4556 www.rldrake.com © 2017 R.L. Drake Holdings, LLC. Rev: 081717 / 651237100E...
- Page 2 We recommend that you write the following information in the spaces provided below. Purchase Location Name: Purchase Location Telephone Number: PEG-NE24 Serial Number: This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Reverse engineering or disassembly is prohibited. Manual Revision This instruction manual was updated on 08/17/17 with changes made in firmware release Version 2.6.3.
-
Page 3: Table Of Contents
Table of Contents GENERAL & SAFETY INFORMATION SAFETY INSTRUCTIONS & CAUTION STATEMENTS ......................4 SPECIFICATIONS ..................................6 GENERAL DESCRIPTION & FEATURES ..........................7 FRONT AND REAR PANEL OPERATION ..........................8 INSTALLATION & SETUP INSTALLATION & POWER-UP ..............................9 LOGIN SCREEN ..................................10 UNIT CONFIGURATION STATUS TAB ...................................11 ENCODER TAB .................................. - Page 4 Important Safety Instructions 1. Read Instructions—All the safety and operating instructions should be read before the product, be sure the antenna or cable system is grounded so as to provide some protection product is operated. against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and sup- 2.
- Page 5 Importantes De Sécurité 1. Lire les directives—Toutes les directives de sécurité et d’utilisation devraient être lues aux électrodes de mise à la terre et les spécifications pour les électrodes de mise à la terre. avant de mettre l’appareil en opération. Voir la figure A.
-
Page 6: Specifications
Specifications PEG-NE24-IP Item # 1002606 PEG-NE24-IP-C Item # 1002613 HD PEG Encoder with HD-SDI Input, and IP Output HD PEG Encoder with HD-SDI or Composite Video with L/R Audio Input, and IP Output INTERFACE INTERFACE VIDEO INPUTS: SD/HD-SDI BNC Type Input Connection... -
Page 7: General Description & Features
General Description & Features The PEG-NE24-IP/PEG-NE24-IP-C is a High Definition (HD)/Standard Definition (SD) video encoder with IP output. The PEG encoder has two IP output streams available, one HD or SD and one SD based on the Composite or HD/ SD-SDI input source resolution. -
Page 8: Front And Rear Panel Operation

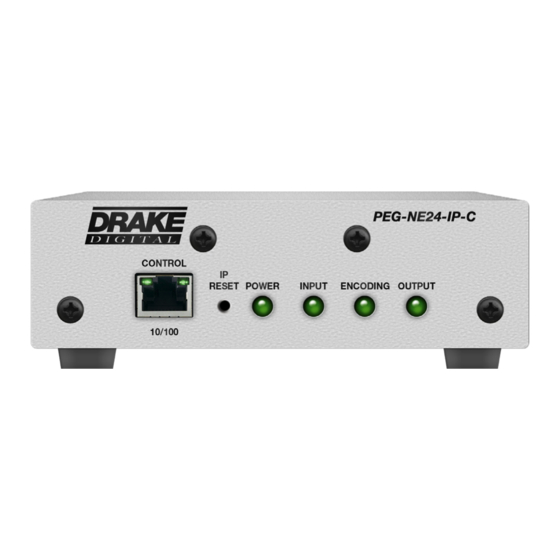

Front and Rear Panel Operation FRONT PANEL 1. Ethernet Control: 10/100 Ethernet wired connection for local and remote management 2. IP Reset Button: When pressed for >2 seconds, the IP address of the control port will enable to the default factory IP address (172.16.70.1, Subnet Mask 255.255.255.0) The login credentials will also be enabled to the default username admin and password pass. -
Page 9: Installation & Power-Up
A 1RU (1.75”) open space must be provided above the PEG encoders when mounted in a 19 inch rack or cabinet to allow air flow for encoder heat dissipation. Drake’s PEG-RP-3/PEG-RK-KIT accessories or a standard 19” rack shelf can be used for mounting 3 encoder modules in 1RU. See image below. -
Page 10: Login Screen
Login Screen First, connect the appropriate input and output video cables and plug in the PEG -NE24 power cable. ETHERNET ACCESS: Local or remote communication with the unit is only possible through a GUI-based menu via any standard web browser Chrome or Firefox is recommended, for IE use IE8 minimum. Before you can communicate with the unit you must configure your computers Local Area Network connection to confirm with the PEG-NE24 default IP of 172.16.70.1. -
Page 11: Status Tab
Status Tab The status tab provides the following information (View only): Figure 2a - "Status" Tab (Read-Only) System Information CPU Usage: Indicates the total usage of CPU resources and the encoder CPU usage. Serial Number: Indicates serial number of PEG -NE24 encoder Hardware Version: Indicates the hardware version of the PEG -NE24 encoder Software Version: Indicates the software version of the unit Unit Name and Location: Indicates user-defined unit constants set under the "System Tab: Networking"... -
Page 12: Encoder Tab
Encoder Tab: Basic Screen Figure 3 - "Encoder" Tab - Basic Settings www.rldrake.com 937.746.4556 |... -
Page 13: Basic Screen
Encoder Tab: Basic Screen Allows the user to set Global, Primary Steam, SD-only Stream Settings for their PEG encoder. Global Configuration: Sets global settings that apply to both streams and the possible outputs Video Source: Displays only on PEG-NE24-IP-C model. Video input selection of SDI or Composite. PEG-NE24 IP is SDI input only. - Page 14 Encoder Tab: Basic Screen Audio DialNorm: Adjustable from -1 to -31 dB. Provides meta-data for audio playback gain for Dolby AC-3 compression. Audio Bitrate: 128, 192 or 384 Kbps Transport Stream Settings: SD TS Bitrate (Mbps): 2 to 25 incremented by .125 HD TS Bitrate (Mbps) (Primary Stream Settings): 0.415 to 25 incremented by 0.125 (TS bitrate must be greater than 0.400 Mbps + audio bitrate + video bitrate) Stuffing Output: Enable or Disable, Enable will include transport stream null packet stuffing to produce a...
- Page 15 Encoder Tab: Basic Screen Transport Stream Settings: SD TS Bitrate (Mbps): 2 to 25 incremented by .125 Stuffing Output: Enable or Disable; Enable will include transport stream null packet stuffing to produce a fixed-bitrate TS IP Settings: Destination IP / Destination Port: User defined unicast or muliticast IP address and port number determined by downstream network connectivity device.
-
Page 16: Compositing Screen
Encoder Tab: Compositing Screen Figure 4 - "Encoder" Tab - Compositing www.rldrake.com 937.746.4556 |... - Page 17 Encoder Tab: Compositing Screen Compositing allows rendering static images over video frames before compression. It supports PNG images including alpha channel / transparency. Displays only when an image file has been uploaded. PLEASE NOTE: 1. It takes some time for the image to be uploaded via the web form, pre-processed (making the thumbnail, padding if necessary) and then loaded by the encoder.
-
Page 18: Advanced Settings Screen
Encoder Tab: Advanced Settings Screen Figure 5 - "Encoder" Tab - Advanced Settings www.rldrake.com 937.746.4556 |... - Page 19 Encoder Tab: Advanced Settings Screen User may configure the following previously fixed-value parameters: Transport Stream ID - Configures the transport stream ID number used Program Specific Information (PSI) tables in the stream. MPEG Program Number - Configures the MPEG Program used in all PSI tables for this stream. PMT, Video, and Audio PIDs: •...
-
Page 20: System Configuration Tab
System Configuration Tab: Networking Figure 6a - "System" Tab - Networking (Part 1) www.rldrake.com 937.746.4556 |... -
Page 21: Networking
System Configuration Tab: Networking The system configuration tab allows the user to set Ethernet and SNMP settings. In the first section, the Network Configuration Mode can be set to either advanced or simple mode. The differences between these modes are as follows: •... - Page 22 System Configuration Tab: Networking Figure 6b - "System" Tab - Networking (Part 2) Setting the UTC Time (continued): Method 1B: 1. Set DHCP to disable on SFP Video 2. Enter your desired IP Address and a valid gateway 3. Enable HTTP Server 4.
-
Page 23: Remote Management
System Configuration Tab: Remote Management Figure 7 - "System" Tab - Remote Management The PEG-NE24 encoder can be remote-managed by using SSH tunneling. Secure Socket Shell (SSH) is a network protocol that provides administrators with a secure way to access a remote computer over an unsecured network such as the Internet. -
Page 24: Log Screen
Log Screen Figure 7 - "Log" Tab Additional Info Download SNMP MiB: Click on the link to save the encoder's ".mib" file. Debug Info: Link to a text-only view of Debug Info Debug Log Archive: Downloadable tar.gz archive file of the Debug Log. Log Messages Max Lines to Display: Sets the maximum number of lines to display starting at the most recent. -
Page 25: Update Tab
Figure 8 - "Firmware Update" Tab Select Firmware Update File: press to browse and select firmware version file Update: press to initiate firmware update For latest firmware information: Contact Drake Technical Assistance at 937-746-6990 or by Email: servicehelp@rldrake.com www.rldrake.com 937.746.4556 |... -
Page 26: Admin Screen
Admin Screen To change/modify the IP network parameters, as well as the Username and Password for the unit, you must be logged in to the unit as “Admin” to access a hidden screen shown in image below. At the top right of the screen select Logged in as: admin Figure 9 - "Admin"... - Page 27 System Controls: used to return settings to System Defaults or to Reboot the unit if applying settings through an import of a configuration file (See "System Tab: Save/Restore" section). Licensed Features: To enable optionally purchased add-on features, type in the License Key number provided by Drake and then click on the Update Key. www.rldrake.com 937.746.4556 |...
- Page 28 NOTES www.rldrake.com 937.746.4556 |...
- Page 29 NOTES www.rldrake.com 937.746.4556 |...
-
Page 30: Service
Please perform whatever steps are applicable from the product’s Instruction Manual before calling or writing as this could save unnecessary phone charges. Please do not return the product without calling Drake Service and following the steps above first;... -
Page 31: Warranty
Blonder Tongue Laboratories, Inc. Limited Warranty Limited Warranty Blonder Tongue Laboratories, Inc. (BT) will at its sole option, either repair or replace (with a new or factory reconditioned product, Seller will at its sole option, either repair or replace (with a new or factory reconditioned product, as Seller may determin e) any product manufactured or sold (or in as BT may determine) any product manufactured by BT which proves to be defective in materials or workmanship or fails to Blonder Tongue Laboratories, Inc. - Page 32 R.L. DRAKE HOLDINGS, LLC Sales: 937-746-4556 • Support: 937-746-6990 • Fax: 937-806-1510 www.rldrake.com...
