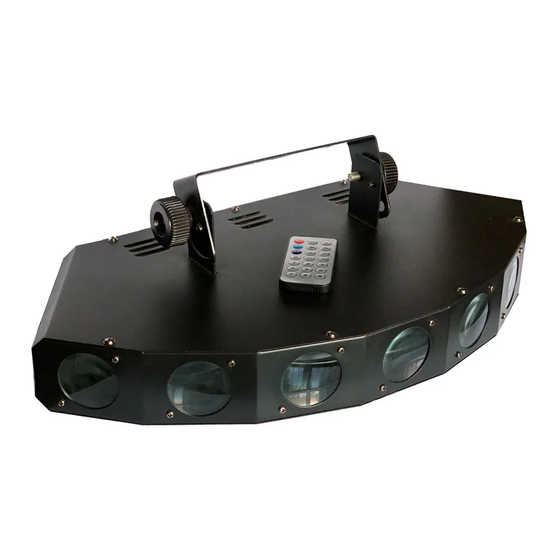

HEXATRIX GLOW
6 lens multi-beam scanning LED lighting effect
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
07 / 07 / 11
192 x 5mm RGB LEDs
72 x red, 72 x green, 48 x blue LEDs
Full DMX512 operation / 10 DMX channels
Auto mode / Sound-to-Light operation via built-in mic
Variable mic sensitivity / Master/Slave mode
Adjustable metal hanging bracket
Safety chain loop / Mains fused IEC
Dimensions: 410 x 170 x 320mm (WxHxD)
Weight: 2Kg
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2010. E&OE.
Advertisement
Related Manuals for KAM HEXATRIX GLOW
Summary of Contents for KAM HEXATRIX GLOW
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this KAM product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference.
- Page 3 Function Mode Single LED move from left Auto (Master) to right and up to down Single row LED move from Auto (Master) up to down Single row LED move from Auto (Master) left to right LED move from up to down Auto (Master) and left to right LED flash and move from...
- Page 4 DMX Control Channel Value Function 0-14 Blackout 15-19 20-24 Green 25-29 Blue 30-34 Red/Green 35-39 Red/Blue 40-44 Green/Blue 45-49 Red/Green/Blue 100-255 Select the automatic program Set the DMX value of Channel 1 to more than 50 0-255 Select the automatic program 0-255 Speed from fast to slow Set the DMX value of Channel 1 between 50-99...
