Kam Vector6

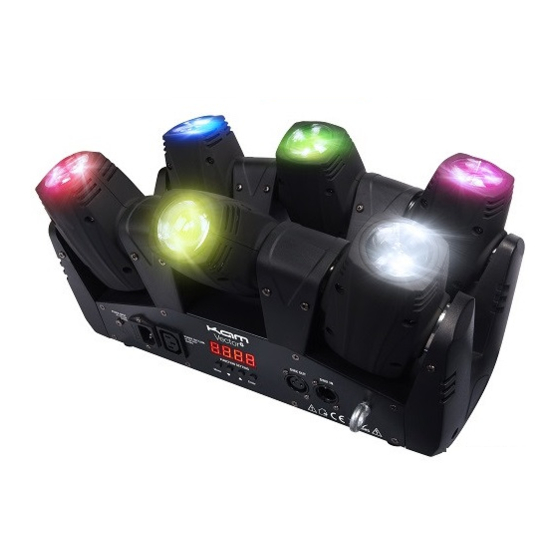

Multi-head pinspot scanning beam effects
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
3 0 - 0 9 - 1 5
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc. E&OE.
Advertisement
Related Manuals for KAM VECTOR6
Summary of Contents for KAM VECTOR6
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
- Page 3 AC power The unit is supplied with a power plug appropriate to its voltage. Should any other connections be required they must be carried out with the following configuration: Cable (EU) Cable (US) International Brown Black Live Light blue White Neutral Yellow/green Green...
- Page 4 LED Function menu...
- Page 5 Channel mode - choose A001 as the default address code. 1. DMX512 address setting (Addr) Select Addr in the Function Menu and press the Enter button to confirm. Using the Up/Down buttons, select your initial address and press the Enter button to confirm. Press the Menu button to return to the main menu or wait 10 seconds and this will happen automatically.
- Page 6 1. Master/Slave operaton You can link multiple units together in Master/Slave mode. To achieve this you will need to set the first unit in the chain as the Master unit and then set all other linked units as Slave units. Using DMX cables, link the units from the DMX output of the first (Master) unit to the DMX input of the second (Slave) unit, then link the DMX output of the second unit to the DMX input of the third unit and so on.
- Page 7 12 / 14 channel DMX mode Channel Value Function 000-255 Full dimmer 0 - 100% 000-255 Strobe, slow to fast 000-255 First head, Y axis position 000-007 First head colour select 008-024 025-041 Blue 042-057 Green 058-074 White 075-090 Red & green 091-107 Red &...
- Page 8 No function 200-209 Reset 210-240 No function 241-255 Sound-to-Light control mode Technical specifications Kam Vector6 Mains power AC 110-240V 50/60Hz Mains connection IEC mains input and output Control modes DMX512 / Auto Show / Sound-to-Light / Master/Slave Light source 6 x 10w RGBW 4-in-1 CREE LEDs...
