4.5
D/A Output (D/A OUTPUT) (/DA option)
Do not short the D/A output terminal or apply external voltage to it. If you do, the instrument
may malfunction.
French
Ne pas court-circuiter la borne de sortie D/A et ne pas y appliquer de tension externe. Si vous
le faites, l'instrument risque de ne pas fonctionner correctement.

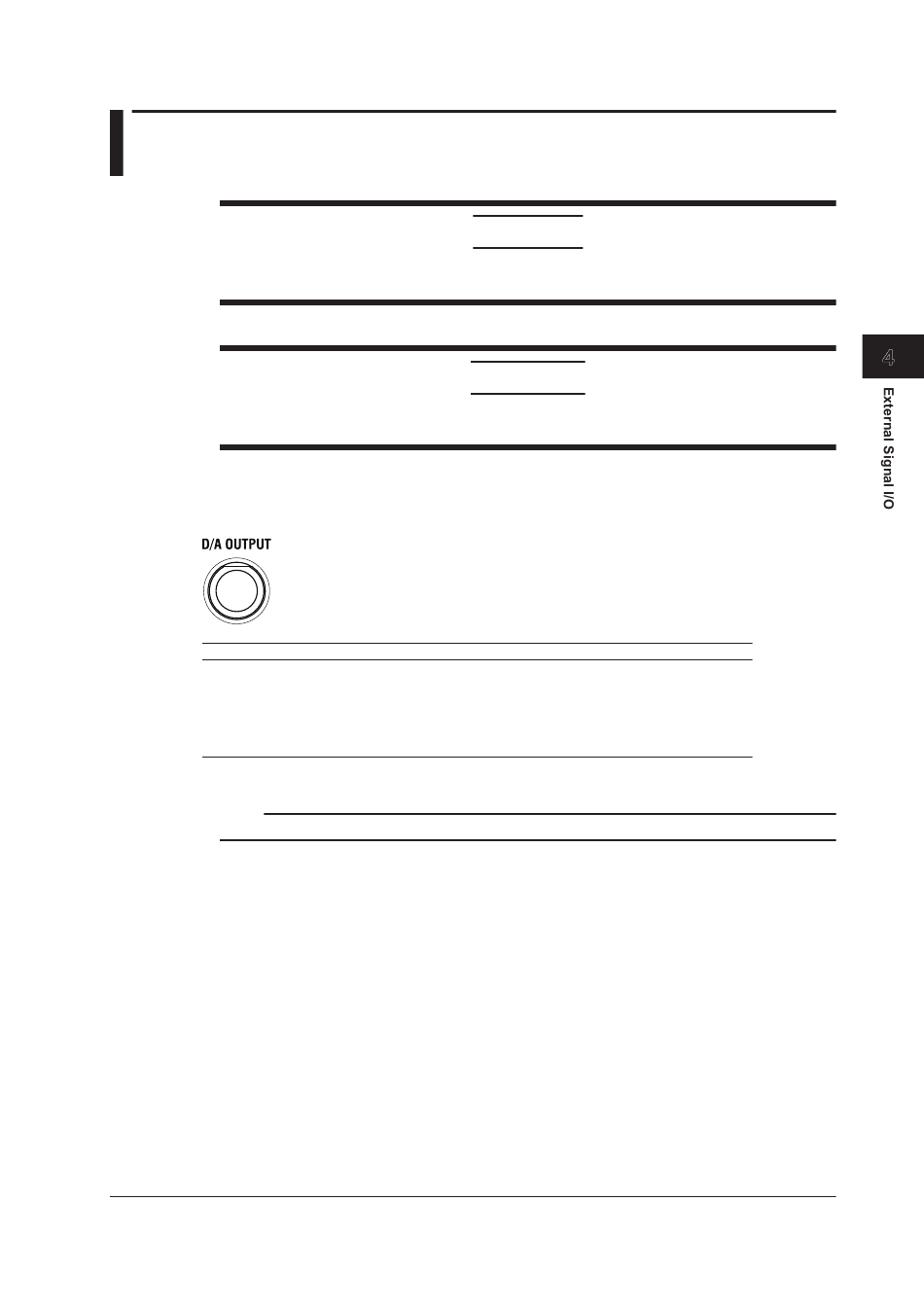

D/A Output Terminal (D/A OUTPUT)
This terminal converts pressure measurement results into voltage (D/A conversion) and outputs it.
Item
Source range
Output update interval
Terminal
* Selectable on models with the /F1 option.
Note
For details on the D/A output, see section 4.2 in the user's manual (IM MT300-01EN).
IM MT300-02EN
CAUTION
ATTENTION
Specifications
2 VDC range, 5 VDC range
Dynamic mode off: Approx. 2 ms (normal measurement mode)
Approx. 0.25 ms (medium-speed/high-speed
measurement mode
Dynamic mode on
*
: Approx. 0.25 ms
BNC terminal
*
)
1
2
3
4
5
6
App
Index
4-5
