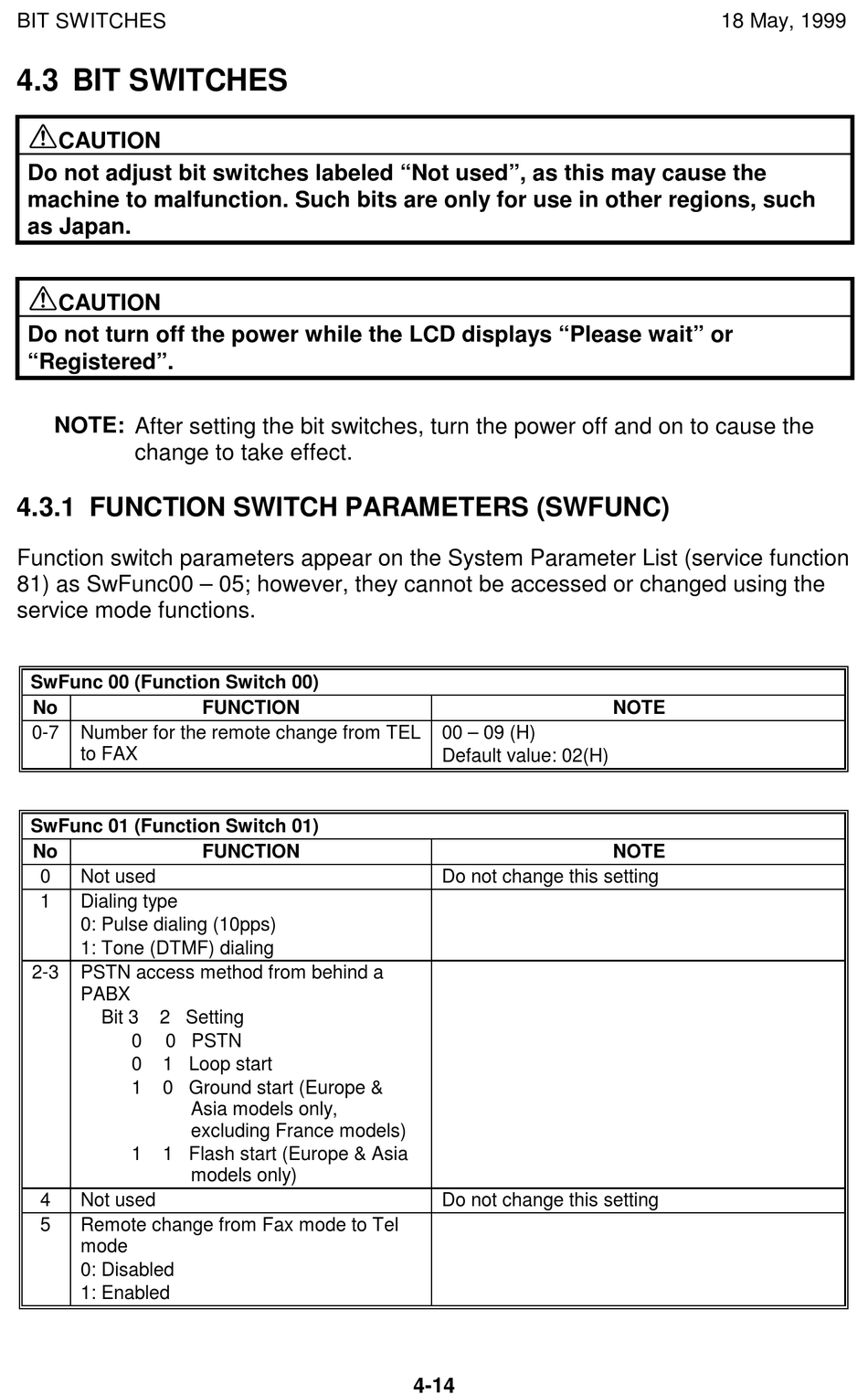

BIT SWITCHES

4.3 BIT SWITCHES
ø
CAUTION
Do not adjust bit switches labeled "Not used", as this may cause the
machine to malfunction. Such bits are only for use in other regions, such
as Japan.
ø
CAUTION
Do not turn off the power while the LCD displays "Please wait" or
"Registered".
NOTE: After setting the bit switches, turn the power off and on to cause the
change to take effect.

4.3.1 FUNCTION SWITCH PARAMETERS (SWFUNC)

Function switch parameters appear on the System Parameter List (service function
81) as SwFunc00 – 05; however, they cannot be accessed or changed using the
service mode functions.
SwFunc 00 (Function Switch 00)
No
0-7 Number for the remote change from TEL
to FAX
SwFunc 01 (Function Switch 01)
No
0 Not used
1 Dialing type
0: Pulse dialing (10pps)
1: Tone (DTMF) dialing
2-3 PSTN access method from behind a
PABX
Bit 3 2 Setting
0 0 PSTN
0 1 Loop start
1 0 Ground start (Europe &
1 1 Flash start (Europe & Asia
4 Not used
5 Remote change from Fax mode to Tel
mode
0: Disabled
1: Enabled
FUNCTION
FUNCTION
Asia models only,
excluding France models)
models only)
00 – 09 (H)
Default value: 02(H)
Do not change this setting
Do not change this setting
4-14
18 May, 1999
