Instructions for installation and use

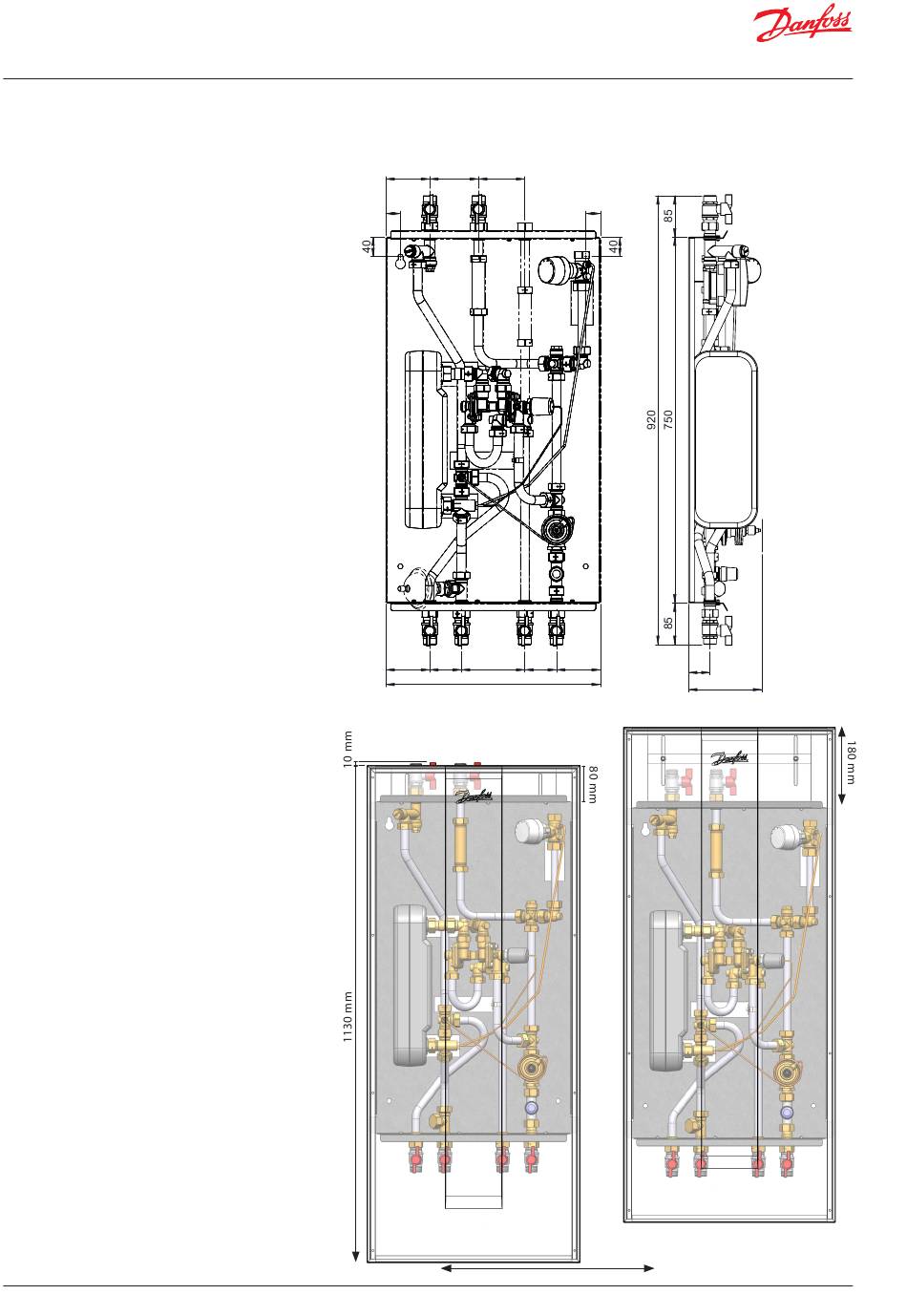

3. ADIMENSIONAL SKETCHES - CONNECTIONS
Connections:
1 Heating (HE) Supply, bottom
2 Domestic hot water (DHW), bottom
3 Domestic cold water (DCW) bottom
4 Heating (HE) Return
5 District heating (DH) Supply, top
6 District heating (DH) Return, top
7 DCW connection, top (option)
Depth incl. of mounting plate:
150 mm
Connections size:
DH, HE, DHW, DCW: G¾" IT
Dimensions:
Without cover:
H 920 x W 440 x D 150 mm
With cover:
H 1130/1140 x W 480 x D 150 mm
Please note that the cover is adjustable
by 100 mm in height.
Please refer to page 12 for more infor-
mation.
4 | © Danfoss | Produced by Danfoss Redan A/S | 2016.03
Akva Lux II TDP RENO
5 6 7
90 100 95
30
90 65 130
440
1 2 3
480 mm
30
65 90
44
4
150
VI.JV.R1.02
