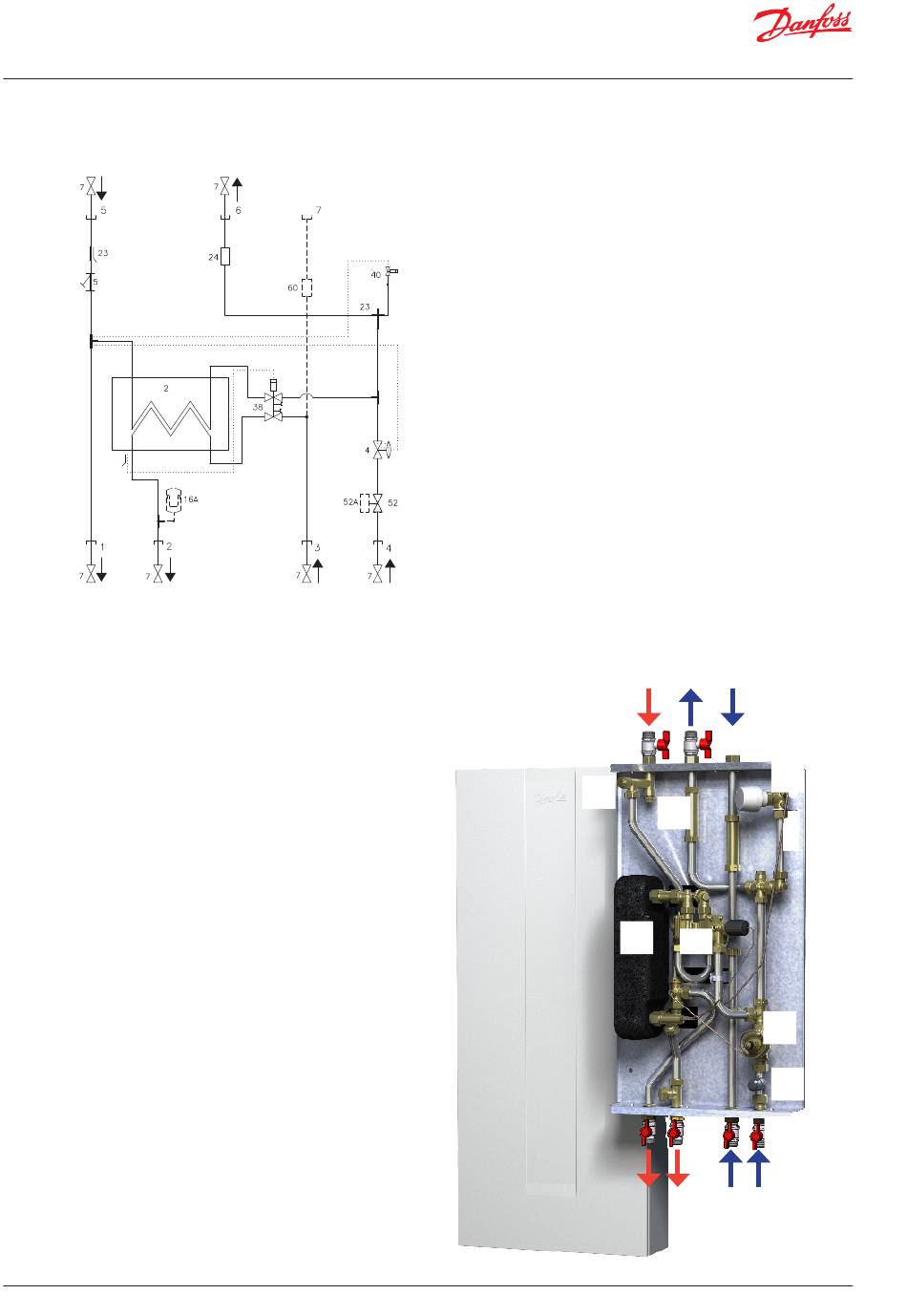

2. PRODUCT INTRODUCTION

DH
Supply
Heating
Supply
2 Plate heat exchanger DHW
4 Differential pressure controller
5 Strainer
7 Ball valve
23 Sensor pocket for heat meter
24 Fitting piece for heat meter
38 PTC2+P controller
40 Danfoss FJVR thermostat for Bypass/Circulation
52 Zone valve Danfoss RA-C
60 Top connection DCW with fitting piece for cold water meter
3/4" x 110 mm (optional)
Please note that the cover is adjustable by 100 mm in height.
Please refer to page 12 for more information.
Please note:
Your substation may look different than the substation shown,
as variants with other components may be supplied.
The control function, however, is basically as stated in this
instruction manual.
Instructions for the fitted components will be supplied together
with the substation.
Connections size:
DH, HE, DHW, DCW:
3 | © Danfoss | Produced by Danfoss Redan A/S | 2016.03
DH
Return
WW KW
G¾" IT
Akva Lux II TDP RENO
Top connection
(DCW connection optional)
Bottom connection
Heating
Return
2 Plate heat exchanger
4 Differential pressure controller
5 Strainer
7 Ball valve
23 Sensor pocket for heat meter
24 Fitting piece for heat meter
3/4" x 110 mm
38 PT°C2 controller
40 Danfoss FJVR Thermostat for
Bypass/Circulation
52 Zone valve Danfoss RA-C
-------------------------------------------------
Optiones:
16A Anti-hammer vessel CAR19 für TWW
52A Thermo actuator Danfoss TWA-A NC
60 Top connection DCW with DCW fitting
piece 3/4" x 110 mm
Accessories:
Ball valve 3/4" x 62 mm ET/ET
Primary Primary DCW connection
Supply Return Top (optional)
60
5
24
2
38
HE DHW DCW HE
Supply Return
40
4
52
7
