Gold Note Machiavelli Red Manual

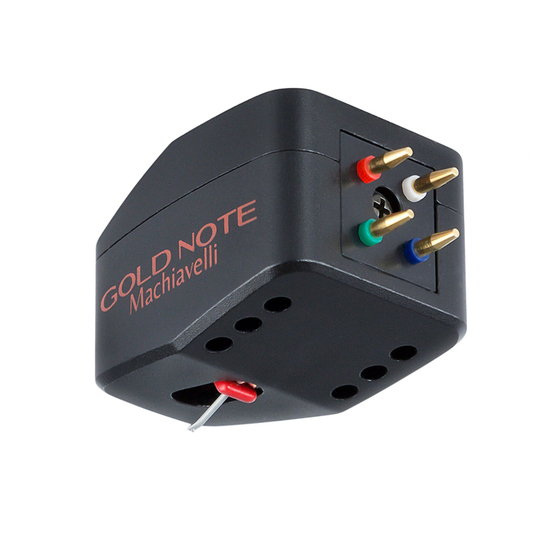

Machiavelli Red

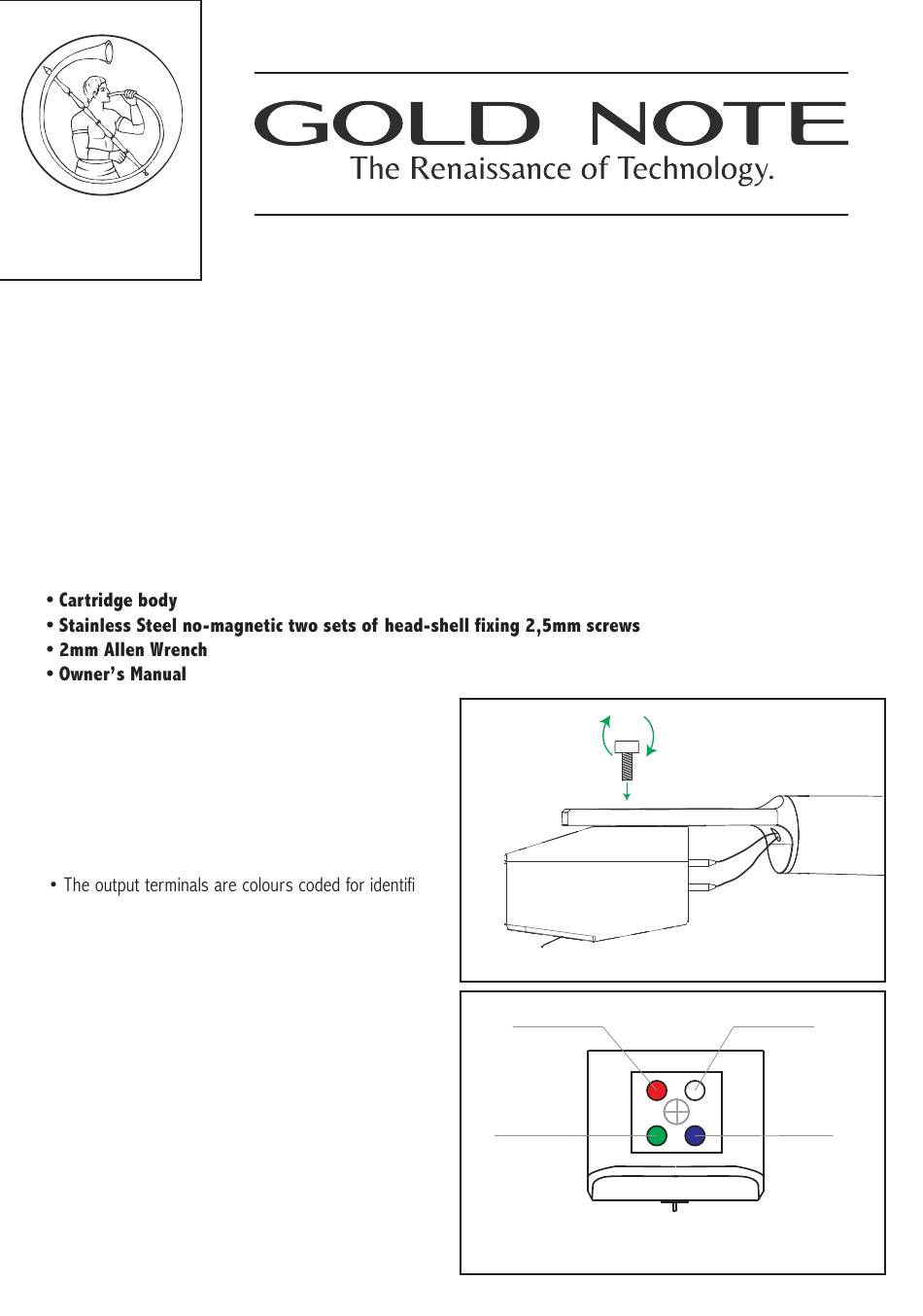

Owner's Manual
Thank you for your purchase of the MACHIAVELLI RED stereo cartridge.
Read these Operating Instructions carefully before using your MACHIAVELLI RED and keep it for future reference.
1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it. Handle the
cartridge with the utmost care.
2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the
cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.

Package Content

Method of Use

1. Mounting the cartridge on the tone arm Head-Shell
using the supplied Allen Wrench and one set of the
2,5mm screws. Adjust it to the stylus position specified
for the turntable system you are using mounting it
properly without tilting or turning it. (See Figure 1.)
cation as illustrated in Figure 2. Match the colors of
the tone arm head-shell leads to the terminals and
connect each other properly.
NOTE:
When connecting the cartridge, be sure to use the
tipped leads and press them onto the terminals. Apply-
ing heat to the output terminals of the cartridge, such
as in direct soldering, will cause internal damage to the
cartridge, such as wire breakage.

Before Using

-
RED(right ch. +)
GREEN
(right ch. -)
x2
WHITE(Left ch. +)
BLUE
(Left ch. -)
Fig. 1
Fig. 2
