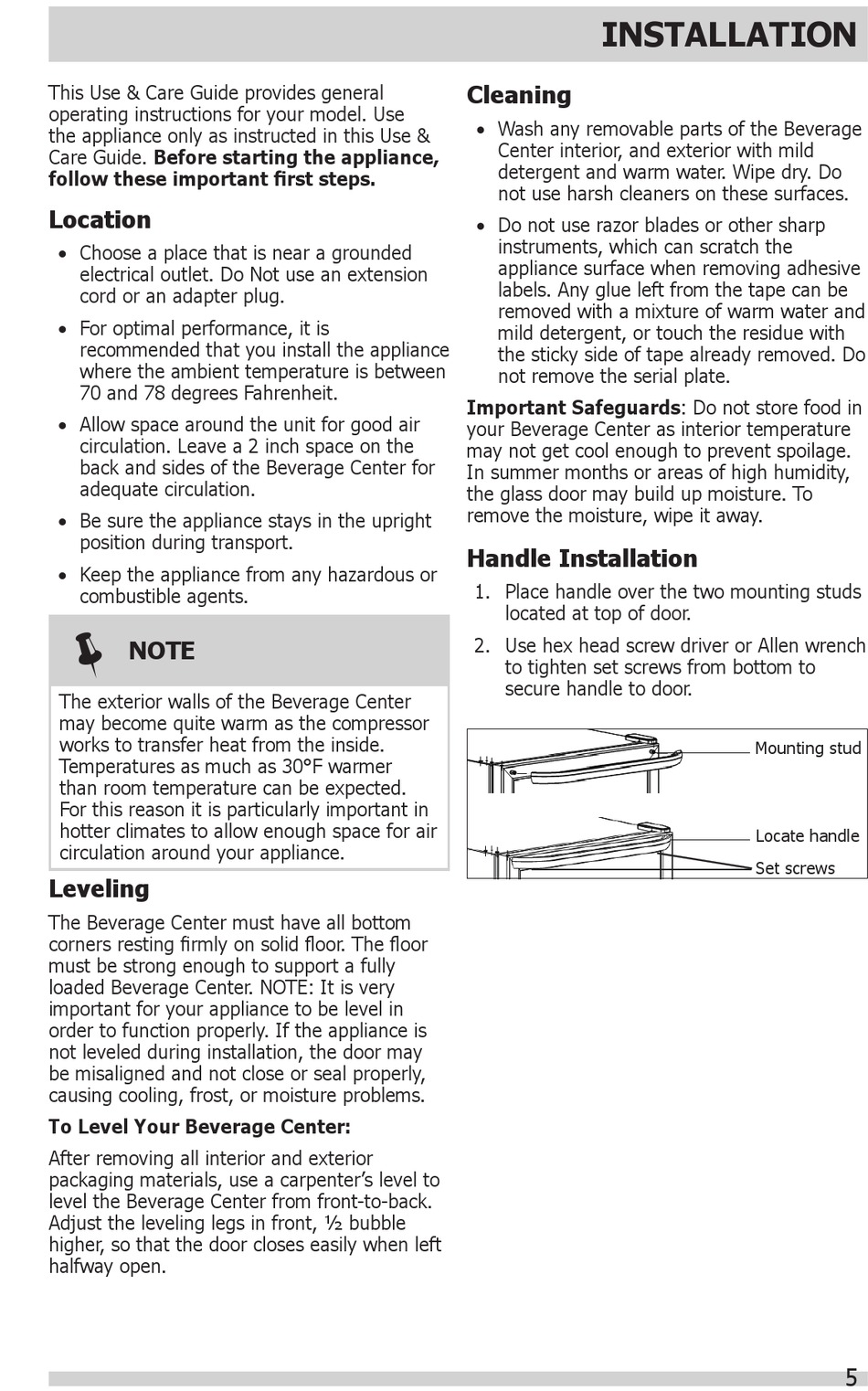

Installation - Frigidaire FGBC5334VS Use & Care Manual

Hide thumbs

Advertisement

This Use & Care Guide provides general
operating instructions for your model. Use
the appliance only as instructed in this Use &
Care Guide. Before starting the appliance,
follow these important first steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
• For optimal performance, it is
recommended that you install the appliance
where the ambient temperature is between
70 and 78 degrees Fahrenheit.
• Allow space around the unit for good air
circulation. Leave a 2 inch space on the
back and sides of the Beverage Center for
adequate circulation.
• Be sure the appliance stays in the upright
position during transport.
• Keep the appliance from any hazardous or
combustible agents.
NOTE
The exterior walls of the Beverage Center
may become quite warm as the compressor
works to transfer heat from the inside.
Temperatures as much as 30°F warmer
than room temperature can be expected.
For this reason it is particularly important in
hotter climates to allow enough space for air
circulation around your appliance.
Leveling
The Beverage Center must have all bottom
corners resting firmly on solid floor. The floor
must be strong enough to support a fully
loaded Beverage Center. NOTE: It is very
important for your appliance to be level in
order to function properly. If the appliance is
not leveled during installation, the door may
be misaligned and not close or seal properly,
causing cooling, frost, or moisture problems.
To Level Your Beverage Center:
After removing all interior and exterior
packaging materials, use a carpenter's level to
level the Beverage Center from front-to-back.
Adjust the leveling legs in front, ½ bubble
higher, so that the door closes easily when left
halfway open.

INSTALLATION

Cleaning
• Wash any removable parts of the Beverage
Center interior, and exterior with mild
detergent and warm water. Wipe dry. Do
not use harsh cleaners on these surfaces.
Handle
• Do not use razor blades or other sharp
② Wooden Shelf Made of Beech
instruments, which can scratch the
③ Control Panel
appliance surface when removing adhesive
labels. Any glue left from the tape can be
Glass Door
removed with a mixture of warm water and
Control Switch of Lamp
mild detergent, or touch the residue with
Adjustable Leg
the sticky side of tape already removed. Do
not remove the serial plate.
Placement of Wine Cooler
Important Safeguards: Do not store food in
The wine cooler should be placed in dry and ventilated room. The location
your Beverage Center as interior temperature
the wine cooler should not be irradiated by direct sunshine. The wine cool
may not get cool enough to prevent spoilage.
should be far away from heating sources, such as: cooking stove or heatin
In summer months or areas of high humidity,
radiator. If the wine cooler has to be placed near heating source, please ado
the glass door may build up moisture. To
remove the moisture, wipe it away.
proper heating insulation board for insulation or keep the wine cooler at lea
the following minimum distances away from the heating sources:
Handle Installation
For electric stove: 3 ㎝.
1. Place handle over the two mounting studs
For oil or coal stove: 30 ㎝.
located at top of door.
Replacement of Door Hinge
2. Use hex head screw driver or Allen wrench
The door hinges of this wine cooler can be interchanged between the left and
to tighten set screws from bottom to
right sides.
secure handle to door.
Installation of Handle
1. Set the handle on the fixation shaft.
2. Screw down the fixation pins of the handle with screw driver.
Fixation Shaft of Handl
Mounting stud
Set Handle
Locate handle
Set screws
- 7 -
5
